Tripp Lite by Eaton 1U Rack-Mount Console with 19" LCD, DVI or VGA, TAA
Product Number: SYNX4205758
$1,280.68
Loading...
Loading...
Product Description
Tripp Lite by Eaton 1U Rack-Mount Console with 19" LCD, DVI or VGA, TAA
1 Computer(s) - 19? LCD - 1366 x 768 - 1 x USB - 1 x DVI?
Description:
Need to add convenient rack-side access to securely manage and control your critical network systems? Tripp Lite's B021-000-19-HD Rack-mount Console is the smart solution for controlling a computer, server or KVM switch in IT applications where rack space is at a premium. The console features an integrated 19" LCD, full 88-key keyboard, and touch pad, all in a 1U rack-mountable housing. A sliding 1U drawer and flip screen allows you to store the console neatly in the rack when not in use. The B021-000-19-HD features a DVI-I port that supports either DVI Digital or VGA Analog (when using the included DVI to VGA adapter) video signals. For added convenience, the console features a USB 2.0 pass-through port for easy connection of a USB peripheral such as a flash drive or CAC card reader. Your peripheral device connects to the USB type A port on the front of the unit and your server or KVM switch (must have a USB hub port) connects to the USB type A port on the back of the unit using a Tripp Lite UR020-Series type A M/M cable. The included KVM cable kit allows for connection to a USB server or KVM switch. With its high-quality 19-in. LCD screen, premium connectors, intuitive controls and broad compatibility, the B021-000-19-HD will provide trouble-free operation in demanding high-availability environments.
Features
Convenient Rack-Side Access to Computers, Servers and KVM Switches
Ideal for controlling a computer, server or KVM switch in IT environments where rack space is at a premium
Mountable in 19 inch 1U system racks with depths ranging from 27 to 42 inches (rack-mount hardware is included)
Input 110/220 V, 2A with a NEMA 5-15P and C14 on unit
Constructed of heavy-duty steel housing
All-in-One Control Solution for Secure Management of Critical Network Systems
Combines a full keyboard, numeric keypad, touchpad and 19-in. LCD in a 1U sliding drawer that stores neatly in the rack when not in use
No server-resident software is required, so server performance and reliability are never compromised
Accepts DVI Digital or VGA Analog Video Signals
DVI-I port supports both digital and analog video signals
Includes a DVI to VGA adapter for the connection of a VGA server or KVM switch
The 19-in. LCD screen supports video resolutions of up to 1366 x 768
Supports Multiple Platforms
Nearly all platforms can be accommodated, including UNIX, Linux, Windows, Mac OS, Solaris, because compatibility is based on common hardware standards rather than system software dependencies
Compatible with most KVM switches that have a VGA or DVI monitor port and USB keyboard/mouse ports
Pass-Through USB 2.0 Port for Easy Connection of Peripherals
Features a USB 2.0 pass-through port for easy connection of a USB peripheral, such as a flash drive or CAC card reader
The peripheral device connects to the USB-A port on the front of the unit, and your server or KVM switch (must have a USB hub port) connects to the USB-A port on the back of the unit using a Tripp Lite UR020-Series type A M/M cable (sold separately)
More from the Manufacturer
Features
Convenient Rack-Side Access to Computers, Servers and KVM Switches
Ideal for controlling a computer, server or KVM switch in IT environments where rack space is at a premium
Mountable in 19 inch 1U system racks with depths ranging from 27 to 42 inches (rack-mount hardware is included)
Input 110/220 V, 2A with a NEMA 5-15P and C14 on unit
Constructed of heavy-duty steel housing
All-in-One Control Solution for Secure Management of Critical Network Systems
Combines a full keyboard, numeric keypad, touchpad and 19-in. LCD in a 1U sliding drawer that stores neatly in the rack when not in use
No server-resident software is required, so server performance and reliability are never compromised
Accepts DVI Digital or VGA Analog Video Signals
DVI-I port supports both digital and analog video signals
Includes a DVI to VGA adapter for the connection of a VGA server or KVM switch
The 19-in. LCD screen supports video resolutions of up to 1366 x 768
Supports Multiple Platforms
Nearly all platforms can be accommodated, including UNIX, Linux, Windows, Mac OS, Solaris, because compatibility is based on common hardware standards rather than system software dependencies
Compatible with most KVM switches that have a VGA or DVI monitor port and USB keyboard/mouse ports
Pass-Through USB 2.0 Port for Easy Connection of Peripherals
Features a USB 2.0 pass-through port for easy connection of a USB peripheral, such as a flash drive or CAC card reader
The peripheral device connects to the USB-A port on the front of the unit, and your server or KVM switch (must have a USB hub port) connects to the USB-A port on the back of the unit using a Tripp Lite UR020-Series type A M/M cable (sold separately)
More from the Manufacturer
- Rack-mount console (19" LCD monitor, keyboard and touch pad) in a space-saving, 1U rack-mountable housing
- DVI-I port supports both digital and analog video, with a maximum resolution of 1366 x 768
- Includes a DVI to VGA adapter for the connection of a VGA server or KVM switch
- Features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive or CAC card reader
Product Specifications
-
Brand NameTripp Lite by Eaton
-
Certifications & StandardsUL 60950-1 (USA) CAN/CSA (Canada) FCC Part 15 Class A CE IEC 60950-1
-
Country of OriginTaiwan
-
DVIYes
-
Depth27.3"
-
Device TypeLCD Rack Console
-
Display Screen TypeLCD
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
-
Environmentally FriendlyYes
-
Height1.7"
-
Input Voltage Range120V AC to 230V AC
-
KeyboardYes
-
Limited Warranty1 Year
-
Manufacturer Part NumberB021-000-19-HD
-
Number of Computers Supported1
-
Number of DVI Ports1
-
Number of USB Ports1
-

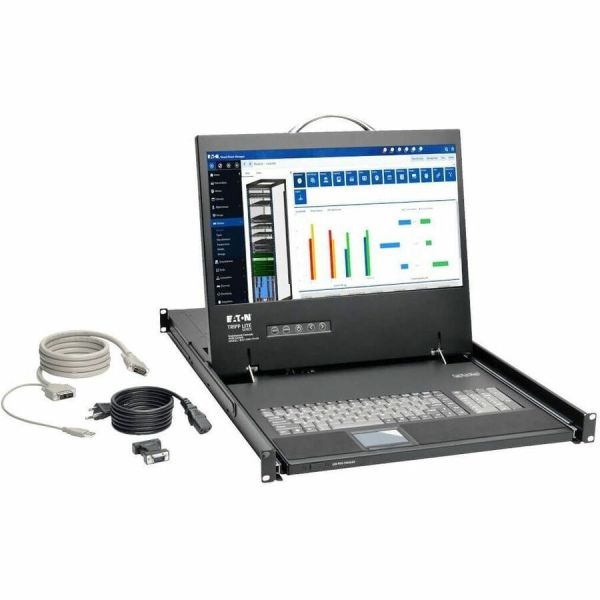

Package Contents1U Rack-Mount Console with 19" LCD, DVI or VGA KVM Cable Kit (DVI-I, USB) DVI to VGA Adapter AC Power Cord Owner's Manual Mounting Brackets
-
Platform SupportedLinux Mac PC Sun
-
Pointing Device TypeTouchPad
-
Product ColorBlack
-
Product MaterialSteel
-
Product ModelB021-000-19-HD
-
Product Name1U Rack-Mount Console with 19" LCD, DVI or VGA
-
Product TypeLCD Rack Console
-
Rack Height1U
-
Screen Resolution1366 x 768
-
Screen Size19"
-
USBYes
-
Width18.8"
