Tripp Lite by Eaton NetDirector 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables, TAA

Product Number: SYNX2530449
$1,654.15
Ships Free - This items ships free with your order
Delivered by Wed 12/4 Wed 12/4 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item

Product Description

Tripp Lite by Eaton NetDirector 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables, TAA
16 Computer(s) - 19" - 16 x HD-18 Keyboard/Mouse/Video - 1U Height
Description:

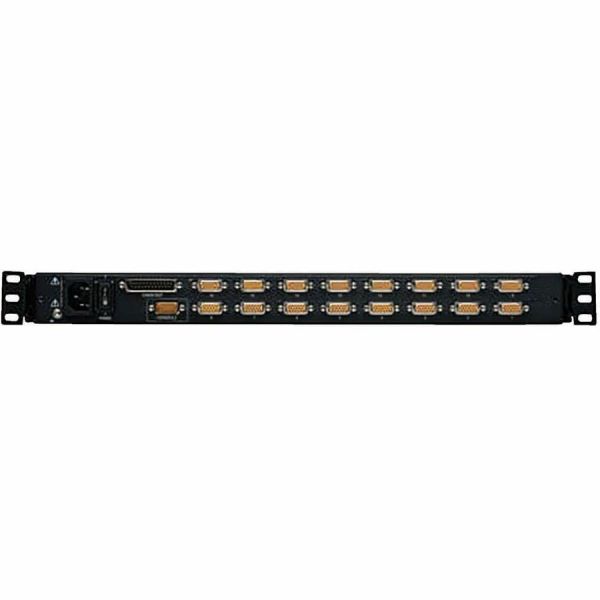

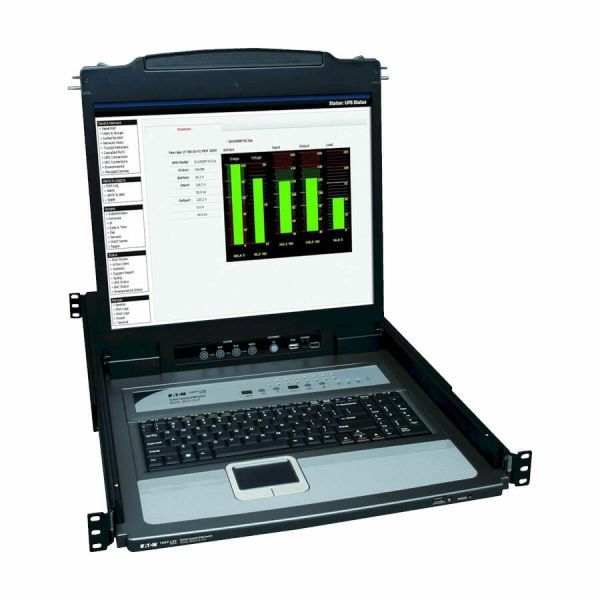

Tripp Lite's B020-U16-19-K KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 16 computers/servers. Increase the number of connected computers to up to 264 by daisy-chaining up to 31 B022-U08 KVM switchesThe B020-U16-19-K has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 16 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers.The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U16-19-K stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.
More from the Manufacturer
  • Occupies just 1U of space in a rack-mountable drawer
  • 19" LCD screen supports video resolutions up to 1280 x 1024
  • Simplifies IT tasks with easy switching between all 16 ports
  • Provides 2-level password security (administrator and user)
  • Combo cables (included) connect to PS/2 or USB servers
Tripp Lite by Eaton logo
Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Brand Name
    Tripp Lite by Eaton
  • Certifications & Standards
    UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
  • Country of Origin
    Taiwan
  • Depth
    27"
  • Device Type
    LCD Rack Console
  • Environmentally Friendly
    Yes
  • Height
    1.8"
  • Limited Warranty
    1 Year
  • Manufacturer Part Number
    B020U1619K
  • Number of Computers Supported
    16
  • Number of USB Ports
    2
  • Package Contents
    NetDirector Console RM LCD KVM Switch Grounding Wire Quick Start Guide CD with Owner Manual C13 to 5-15P Power Cord RJ11 to DB9 Firmware Upgrade Cable PS2/USB Combo Console Cable Kit 8 x P778-006 6 ft. USB/PS2 Combo KVM Cable Kits Rackmount Hardware Kit
  • Pointing Device Type
    TouchPad
  • Product Line
    NetDirector
  • Product Model
    B020-U16-19-K
  • Product Name
    NetDirector B020-U16-19-K Rackmount LCD with KVM
  • Product Type
    LCD Rack Console
  • Screen Mode
    SXGA
  • Screen Resolution
    1280 x 1024
  • Screen Size
    19"
  • USB
    Yes
  • Width
    17"
