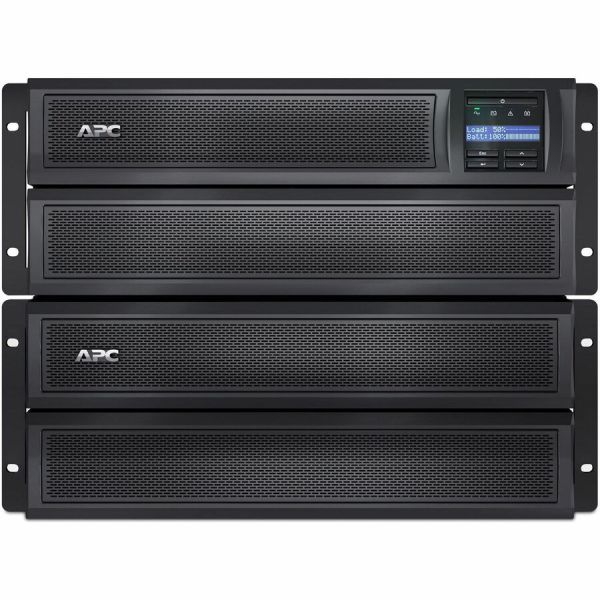

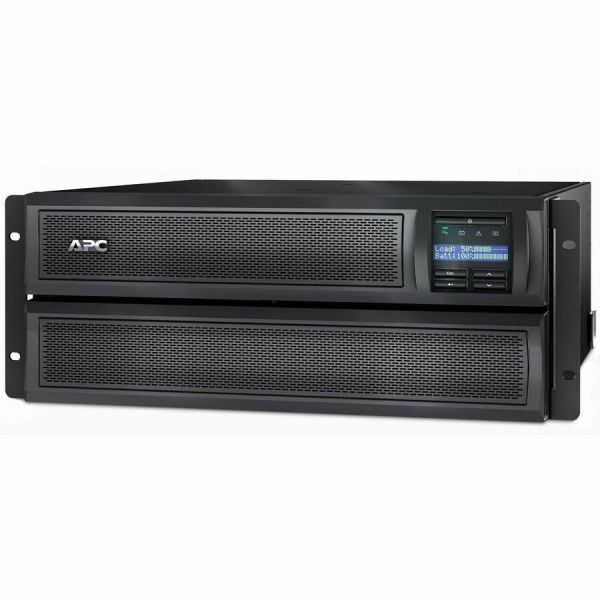

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth

Product #: SYNX3627615
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth
4U Rack-mountable - 3 Hour Recharge - 6 Minute Stand-by - 208 V AC, 230 V AC Input - 208 V AC, 230 V AC Output - Sine Wave - Serial Port - USB - 2 x IEC 320-C19, 2 x IEC Jumper, 8 x IEC 320-C13 Receptacle(s) - 12 x Battery/Surge Outlet
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 320 C20, Schuko CEE 7/EU1-16P input, 8x IEC 320 C13 and 2x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
  • 3kVA/2700W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
  • User-selectable high voltage setting of 200V-240V
  • Add up to 10 external battery packs (SMX120BP)
  • Short depth UPS provides extra space for cable management
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
  • Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
  • Ideal for servers, storage, networking & commercial applications
  • Works adequately in situations where the supply is prone to sags and surges
  • Keep your sensitive devices powered with a backup of up to 6 minute at full load
  • 2700 W load capacity - backup power for your valuable electronics
  • 3000 VA load capacity - work without any interruption during power outages
  • 3 Hour typical battery recharge time for better convenience and prolonged, productive usage
  • Lead Acid battery chemistry to better suit your requirements with maximum productivity
  • British BS1363A plug/connector type for maximum usability with added reliability
  • Schuko CEE 7/EU1-16P receptacle type offers maximum safety, convenience, and increased usability
  • 208 V AC input voltage for optimal performance with maximum usability
  • 208 V AC output voltage for maximum dependability and added productivity
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Warranty Information
    UPS: 36 month(s)|Battery: 24 month(s)
  • Alarm
    Configurable Delay Low Battery On Battery
  • Battery Chemistry
    Lead Acid
  • Brand Name
    APC by Schneider Electric
  • Certifications & Standards
    CE|EAC|IRAM|RCM|TISI|VDE|UK PSTI
  • Cord Length
    6 ft
  • Country of Origin
    Philippines
  • Depth
    19"
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384166976&lang=en-us
  • Emergency Power OFF
    Yes
  • End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
  • Environmentally Friendly
    Yes
  • For Country/Region
    United States
  • Form Factor
    Rack-mountable
  • Height
    17"
  • Hot Swappable
    Yes
  • Input Voltage
    208 V AC 230 V AC
  • Limited Warranty
    3 Year
  • Load Capacity (VA)
    3000 VA
  • Load Capacity (Watt)
    2700 W
  • Manufacturer Part Number
    SMX3000HV
  • Mounting Location
    Front
  • Mounting Preference
    Lower
  • Number of Battery & Surge Outlets
    12
  • Optimized Energy Efficiency
    Yes
  • Output Voltage
    230 V AC 208 V AC
  • Package Contents
    Smart-UPS X 3000VA Rack/Tower LCD 200-240V CD with software Documentation CD Rack mounting brackets Smart UPS signalling RS-232 cable USB cable User manual
  • Plug/Connector Type
    British BS1363A IEC 320-C20
  • Product Color
    Black
  • Product Line
    Smart-UPS
  • Product Name
    Smart-UPS X 3000VA Rack/Tower LCD 200-240V
  • Product Series
    SMX
  • Product Take Back Program
    Yes
  • Product Type
    Line-interactive UPS
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384166976&lang=en-us
  • REACH free of SVHC
    No
  • Rack Height
    4U
  • Receptacle Type
    Schuko CEE 7/EU1-16P
  • RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000HV_ROHS_DECLARATION&p_FileName=SMX3000HVKIT_ROHS_DECLARATION_US.pdf
  • Serial Port
    Yes
  • Software Included
    Powerchute Serial Edition
  • Surge Energy Rating
    645 J
  • Typical Battery Recharge Time
    3 Hour
  • USB
    Yes
  • WEEE Statement
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Waveform Type
    Sine Wave
  • Width
    7"
