Eaton Tripp Lite Series SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure
Product Number: SYNX4412352
$413.14
Loading...
Loading...
Product Description

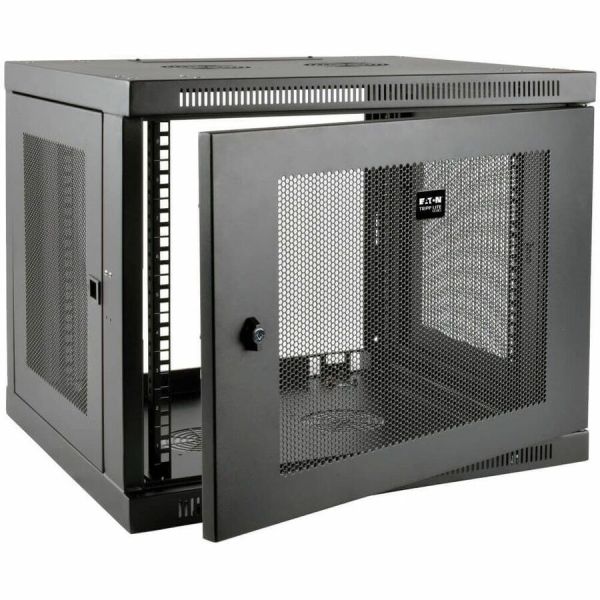

Eaton Tripp Lite Series SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure
For LAN Switch, Patch Panel - 9U Rack Height x 19" Rack Width x 20.50" Rack Depth - Wall Mountable - Black - 200 lb Maximum Weight Capacity - 200 lb Static/Stationary Weight Capacity
Description:
The SRW9UDP SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.

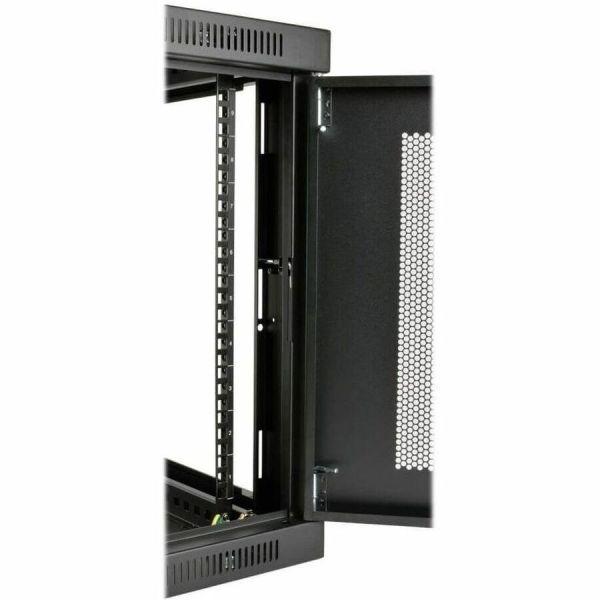

The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

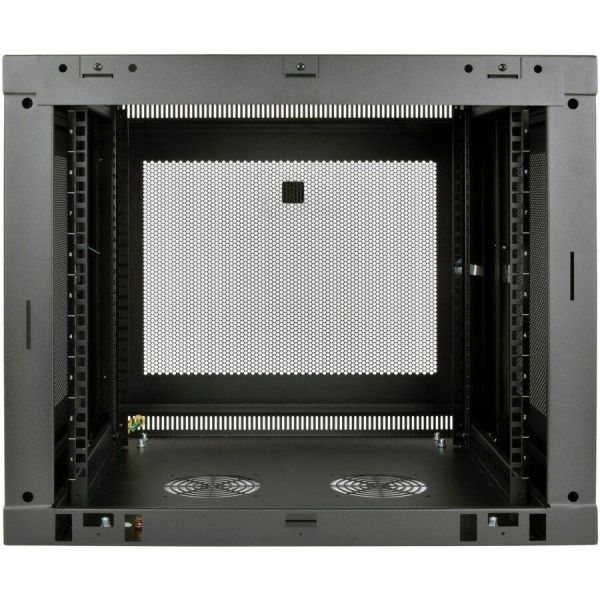

The SRW9UDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
More from the Manufacturer
The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW9UDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
More from the Manufacturer
- Maximum load capacity of 200 lb.
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 9U of 19 in. rack equipment up to 20.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
- Rack Cabinet allows quick and easy retrieval of your items with better organizing and feasible mounting
- Comes in black color for a sophisticated and dazzling loo
- Wall mountable rack cabinet encourages collaboration and interactivity with maximum productivity
- LAN Switch application, usage for your items, valuables, equipment organizational, storage, placement convenience and ease
- Cable management feature gives you easier access to internal rack components reduces maintenance time and improves safety
Product Specifications
-
Application/UsageLAN Switch Patch Panel
-
Assembly RequiredNo
-
Brand NameTripp Lite by Eaton
-
Country of OriginChina
-
Depth21.7"
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
FeaturesCable Management
-
Form FactorWall Mountable
-
Height19.9"
-
Limited Warranty5 Year
-
Manufacturer Part NumberSRW9UDP
-
Maximum Weight Capacity200 lb
-

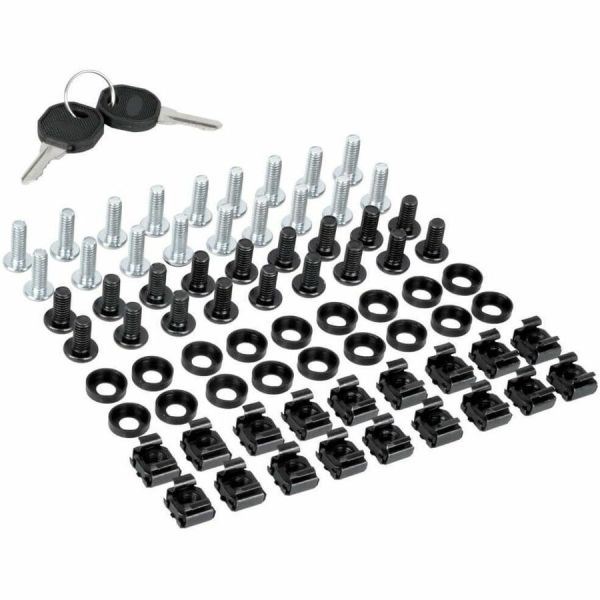

Package ContentsSmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet 18 x M6 Screws 18 x M6 Cage Nuts 18 x M6 Cup Washers 18 x 18-24 Screws Removable Mounting Plate 3 x Mounting Plate Screws 2 x Keys Owner's Manual
-
Product ColorBlack
-
Product LineSmartRack
-
Product ModelSRW9UDP
-
Product NameSmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
-
Product TypeRack Cabinet
-
Rack Height9U
-
Rack Width19"
-
Width23.6"
