StarTech.com USB serial adapter - RS422 - RS485 - Industrial - serial - 1 port
Product Number: SYNX2319954
$175.56
Loading...
Loading...
Product Description
StarTech.com USB serial adapter - RS422 - RS485 - Industrial - serial - 1 port
Add an R422/485 serial port to your laptop or desktop computer through USB - USB to Serial - usb to rs485 - USB to DB9 - usb to rs422 - USB to serial Adapter
Description:
The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block.
The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices.
The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices.
The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Provides one RS422/485 port while powering the device through USB
- RS-485 mode supports Auto Transceiver Turn Around (ATTA)
- Compatible with both USB 2.0 and USB 1.1
- RS422/485 Baud rate up to 921.6 Kbps

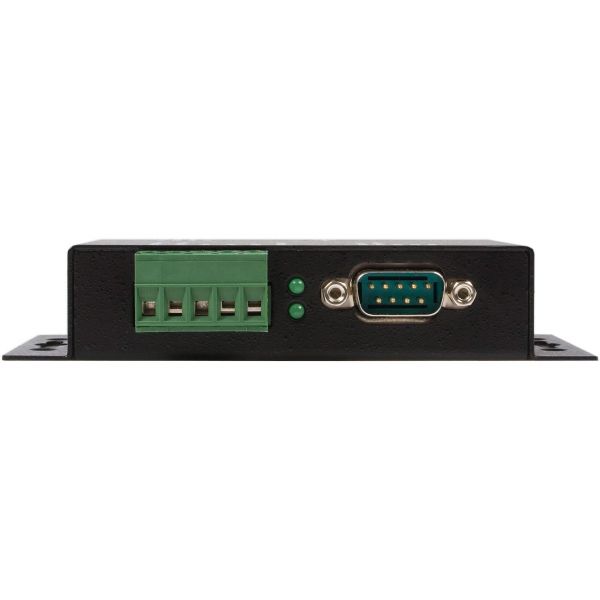

- Supports DB9 and terminal block connector
- Optical Isolation and Surge Protection (2500 Vrms)
- Supports 4-wire RS422 and 2-wire RS485 applications
Product Specifications
-
Additional InformationWindows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 OS Compatibility: Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 Linux Kernel 3.0.x and up - LTS Versions only
-
Brand NameStarTech.com
-
Country of OriginTaiwan
-
Depth4.6"
-
Environmentally FriendlyYes
-
Height0.9"
-
Host InterfaceUSB 2.0 Type B
-
Limited Warranty2 Year
-
Manufacturer Part NumberICUSB422IS
-
Package Contents1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation 1 x 6ft USB A to B Cable 1 x Driver CD 1 x User Manual
-
Platform SupportedLinux Mac PC
-
Product ModelICUSB422IS
-
Product Name1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation
-
Product TypeSerial Adapter
-
Width2.5"
