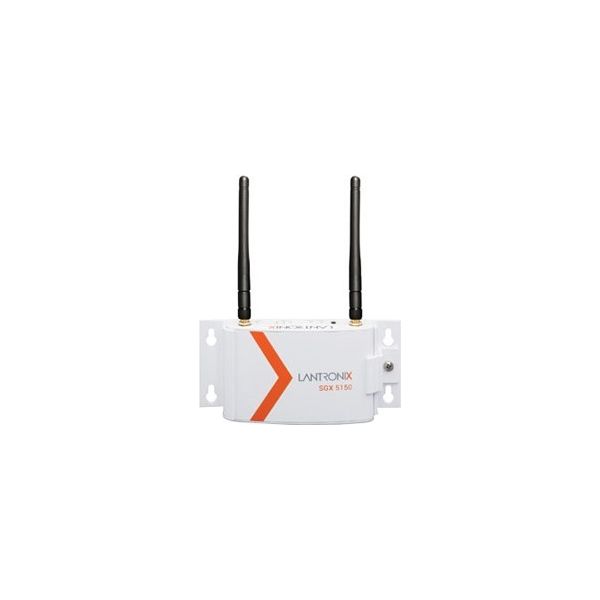

Lantronix SGX 5150 Wireless IoT Gateway, 802.11a/b/g/n/ac, 1xRS232 (RJ45), USB, 10/100 Ethernet, US Model

Product Number: IGRM7P0135
$463.00
Ships Free - This items ships free with your order
Delivered by Wed 12/4 Thu 12/5 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item

Product Description

Lantronix SGX 5150 Wireless IoT Gateway, 802.11a/b/g/n/ac, 1xRS232 (RJ45), USB, 10/100 Ethernet, US Model
Twisted Pair - 1 x Network (RJ-45) - 1 x USB - 1 x Serial Port - 10Base-T, 100Base-TX - Fast Ethernet - IEEE 802.11ac - Wireless LAN - Wall Mountable
Description:

Connect Your Business-Critical Assets and Data Securely to the Enterprise Network

High Performance Wi-Fi

Your device requires a trustworthy wireless connection. Equipped with industry-leading high-performance 5GHz (802.11ac) Wi-Fi, the SGX 5150 ensures reliable and persistent wireless enterprise connections and bandwidth for high-speed data processing.
TruPort Security
The SGX 5150 was designed from the ground up to support critical enterprise, government and military grade standards, so that your private data is delivered securely with absolute data integrity.

Essential IoT Applications

IoT deployment and network integration has never been easier. The SGX 5150 includes essential IoT apps that deliver multi-interface connectivity, full networking, extensive security, industry-leading device configuration management and robust system diagnostics so that you can quickly accelerate to an IoT business solution.

Multi-Interface Access

The SGX 5150 provides multiple interface options to connect to virtually any edge asset with singular or multiple RS-232/485 serial ports, USB 2.0 with host and device modes and Ethernet interfaces. The SGX 5150 provides an elegant and robust solution for organizations seeking compatibility with multiple devices or product lines.
More from the Manufacturer
  • Easily configure and connect to the enterprise network, instant out-of-box
  • Unique Device ID feature allows you to make your device visible to authorized users
  • Linux SDK and Python runtime services allow quick development and deployment of custom apps
  • Experience the Lantronix industrial design quality and reliability
Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Additional Information
    Wirelss Specifications: 5G Wi-Fi (IEEE 802.11ac), 1x1 ac (MCS0 - MCS9) 20, 40 and 80 MHz Channels with optional SGI IEEE 802.11 n, 1x1 n (MCS0 - MCS7) Bluetooth/WLAN Coexistence Compatible with IEEE 802.11 a/b/g and Supports IEEE 802.11 d/h/j/i Dual band 2.4 GHz and 5 GHz Ethernet Specifications: IEEE 802.3 MAC and PHY, 10BaseT and 100BaseT USB Specifications - Configurable USB 2.0 HS/FS port with USB type C connector USB Device (default setting) powered by a VBUS 5V USB configurable host can provide VBUS 5V 0.5A (power supply or PoE) Physical Interface: Upto 2xRJ-45 Serial Ports, can be RS-232 or Multi-protocol RS-232/422/485, Data rates - up to 921 Kbps 15 KV ESD Protection (1) USB port - Type C Host / Device Connector (1) RJ-45 Ethernet port, 10/100Mbps, 1.5 KV Surge IsolationWLAN Security TruPort Security: AES/CCMP and TKIP encryption, 802.11i WPA/WPA2 Pre-Shared Key (PSK) or IEEE 802.1X, AES-CCMP Enterprise Security (WPA2-Enterprise) EAP-TLS, EAP-TTLS (MS-CHAPv2), EAP-PEAPv0/EAP-MS-CHAP v2), EAP-PEAPv1, EAP-FAST Management Interfaces: DeviceInstaller, Web Manager (HTML5 Browser HTTP/HTTPS) CLI (over serial ports, telnet or SSH) OTA Field upgradeable Supports SNMP v2, V3 XML Configuration records via CLI or FTP Environmental: Extended Operating Temp: -40° to 70° C, (-40° to 158° F) Extended Storage Temp: -40° to 85° C, (-40° to 185° F) IP Rating: 30, Relative Humidity: 5 to 95%, Non-condensing ESD tolerance: Contact Discharge= 4Kv; Air Discharge=15Kv
  • Brand Name
    Lantronix
  • Depth
    4.3"
  • Environmentally Friendly
    Yes
  • Ethernet Technology
    Fast Ethernet
  • Form Factor
    Wall Mountable
  • Height
    1"
  • Limited Warranty
    5 Year
  • Manufacturer Part Number
    SGX5150102US
  • Media Type Supported
    Twisted Pair
  • Network (RJ-45)
    Yes
  • Network Standard
    100Base-TX 10Base-T
  • Number of Network (RJ-45) Ports
    1
  • Number of Serial Ports
    1
  • Number of USB Ports
    1
  • Product Name
    SGX 5150 IoT Device Gateway
  • Product Series
    SGX 5150
  • Product Type
    Device Server
  • Serial Port
    Yes
  • USB
    Yes
  • Width
    3.5"
  • Wireless LAN
    Yes
  • Wireless LAN Standard
    IEEE 802.11ac
