SIIG 1x2 HDMI 2.0 Splitter / Distribution Amplifier with Auto Video Scaling - 4K 60Hz HDR
Product Number: SYNX5180276
$73.25
Loading...
Loading...
Product Description
SIIG 1x2 HDMI 2.0 Splitter / Distribution Amplifier with Auto Video Scaling - 4K 60Hz HDR
3840x2160 HDMI Splitter- HDR- HDCP 2.2- HDMI 4K Splitter with EDID- 2 Port 4K HDMI Splitter 1 in 2 out Auto Video Scaling - 7.1-ch Surround Sound Audio - 4K to 1080p downscaling - HDMI Splitter Aliminum Metal Housing - HDCP 2.2/1.4 - 18Gbps Video bandwdith - DIP EDID management - Support firmware update - ESD Protection - Power LED Indicator - 3 years warranty - TAA Compliant
Description:

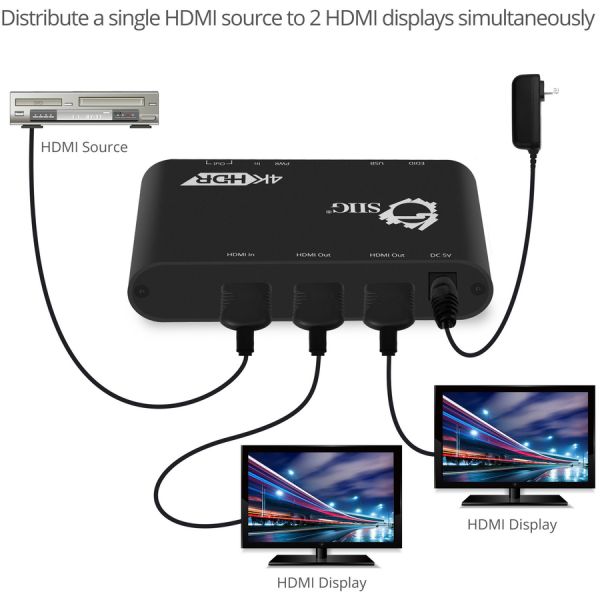

Distributes HDMI video/audio signals from one HDMI source to two HDMI displays while maintaining signal quality
Distributes HDMI video and audio from a single source to 2 HDMI displays simultaneously while maintaining signal quality
Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
Supports up to 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

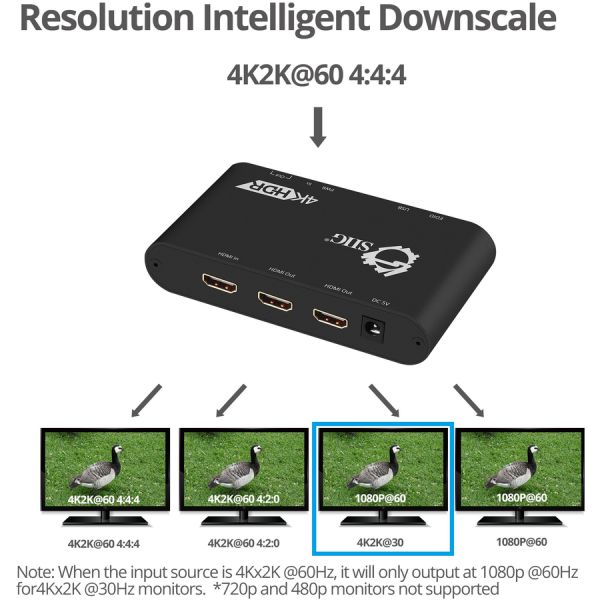

Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.

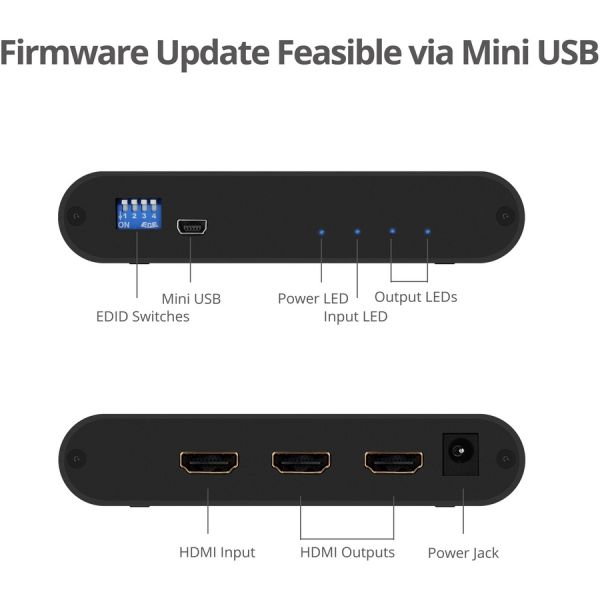

EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
Easy to cascade multiple splitters for more displays. Supports up to 10 layers
More from the Manufacturer
Distributes HDMI video and audio from a single source to 2 HDMI displays simultaneously while maintaining signal quality
Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
Supports up to 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.
EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
Easy to cascade multiple splitters for more displays. Supports up to 10 layers
More from the Manufacturer
- Distributes HDMI video and audio from a single source to 2 HDMI displays simultaneously while maintaining signal quality
- Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
- Supports up to 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color
- Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
- Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.
- EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
- Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
- Easy to cascade multiple splitters for more displays. Supports up to 10 layers
- This Audio/Video Distribution Amplifier accepts audio and video signals from a single source and distributes it to multiple systems
- Supports up to 600 MHz frequency
- Up to 3840 × 2160 video resolution.
- Features HDMI input to get connected with the top of the line HDMI supported devices
Product Specifications
-
Brand NameSIIG
-
Country of OriginTaiwan
-
Environmentally FriendlyYes
-
HDMI InYes
-
HDMI OutYes
-

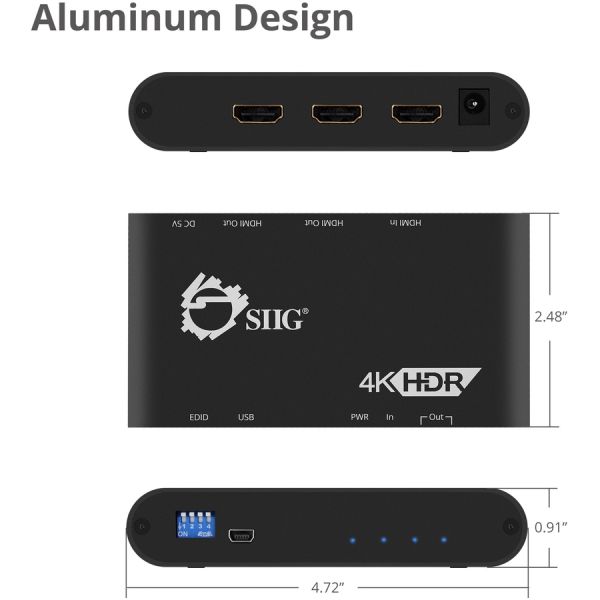

Height0.9"
-
Input Voltage5 V DC
-
Length4.7"
-
Limited Warranty3 Year
-
Manufacturer Part NumberCE-H22X11-S1
-
Maximum Frequency600 MHz
-
Maximum Operating Distance49.21 ft
-
Maximum Video Resolution3840 × 2160
-
Minimum Frequency25 MHz
-
Number of HDMI Inputs1
-
Number of HDMI Outputs2
-
Product MaterialAluminum Metal
-
Product Name1x2 HDMI 2.0 HDR Distribution Amplifier with EDID Management - 4Kx2K 60Hz
-
Product TypeAudio/Video Distribution Amplifier
-
Width2.4"
