StarTech.com LC to LC Coupler, LC Fiber Coupler, LC/UPC Duplex Keystone Jack, Fiber Optic Keystone Coupler for Patch Panel

Product Number: ETLZ1079772362
$11.50
Free Shipping - This item ships free on orders over $45
Delivered by Wed 1/8 Thu 1/9 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item

Product Description

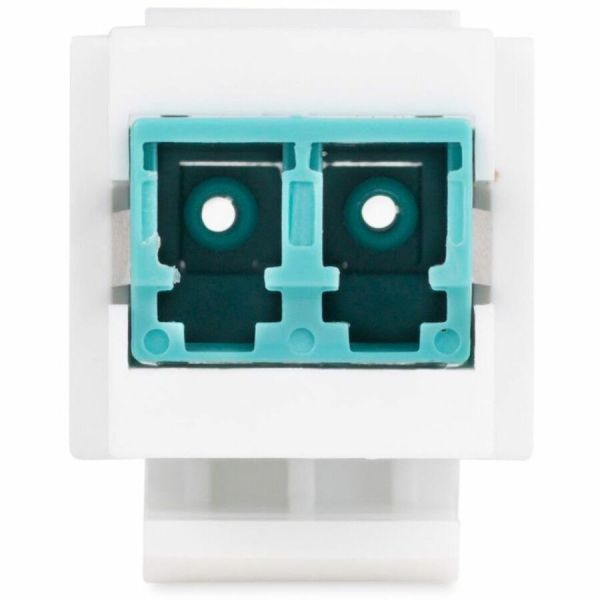

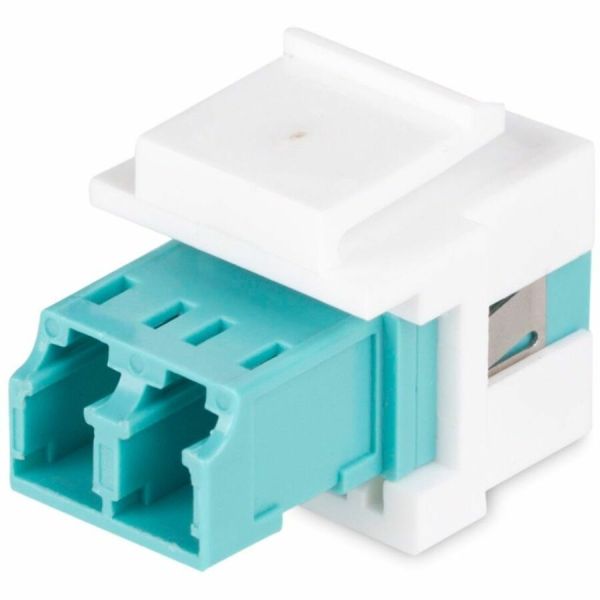

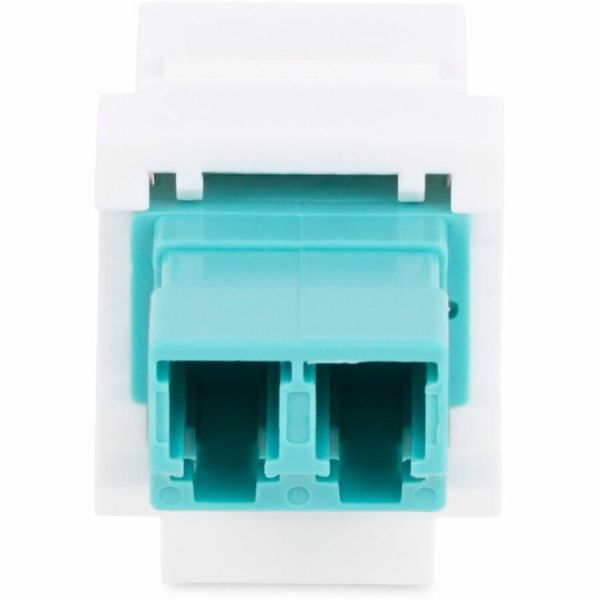

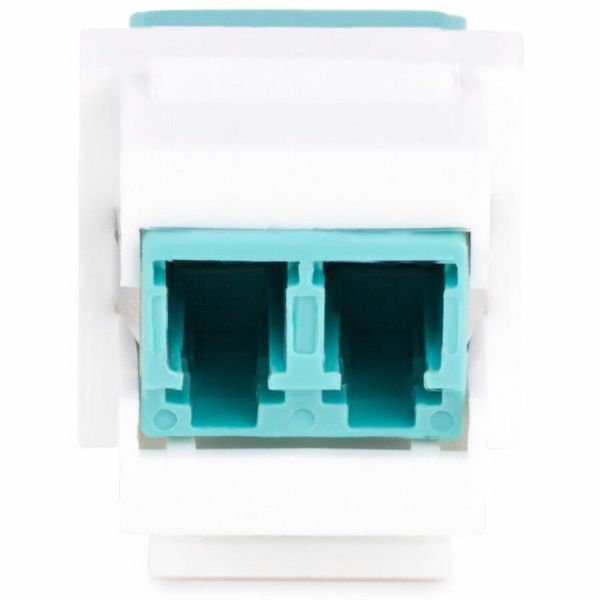

StarTech.com LC to LC Coupler, LC Fiber Coupler, LC/UPC Duplex Keystone Jack, Fiber Optic Keystone Coupler for Patch Panel
LC to LC keystone coupler supports Single Mode and Multimode fiber cables; Ideal for keystone patch panels and wall plates; Toolless setup; Insertion Loss rated below 0.2dB; Supports 9/125um 62.5/125um and 50/125um fiber cores; Includes dust covers
Description:

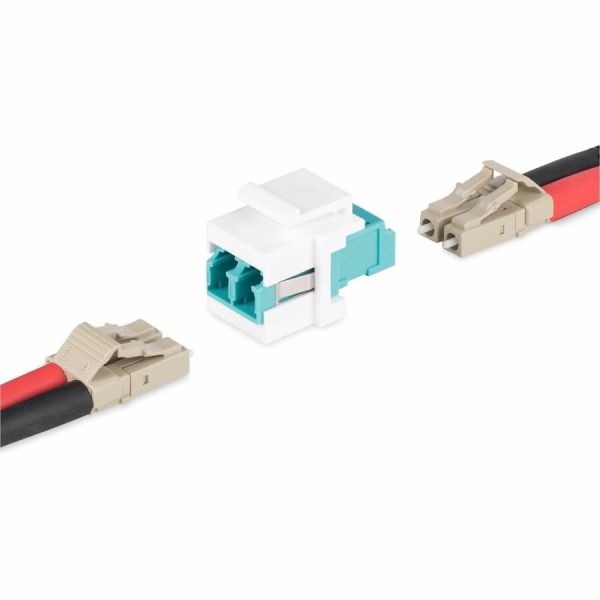

Connect two LC Duplex fiber cables featuring UPC polished ends to extend a network connection, using this LC to LC Keystone Coupler. The female to female fiber coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Compatible with Single Mode and Multimode Fiber Cables

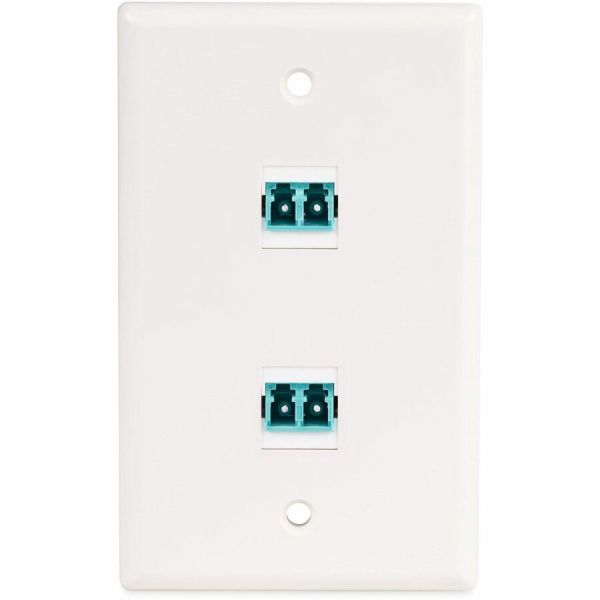

The LC Fiber Coupler supports Single Mode and Multimode LC/LC fiber cables. It is compatible with OS1/OS2 (9/125µm) and OM1/OM2/OM3/OM4/OM5 (62.5/125µm and 50/125µm) fiber core/cladding. The coupler fits securely into the keystone jack which can be installed in a keystone patch panel or wall plate without requiring additional tools.
Durable Construction
The LC/LC Keystone Coupler features a durable ABS housing and ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.
  • LC KEYSTONE COUPLER: LC to LC Coupler features a compact design with removable Keystone Jack; Join two LC fiber cables or extend fiber connectivity in a network setup; Ideal for keystone patch panels and wall plate installations
  • ROBUST CONSTRUCTION: ABS outer housing enhances durability and wear protection; Ceramic-lined inner sleeves enables precise alignment of fiber ends; Rated for 500 insertion cycles with minimal insertion loss; Includes protective dust covers
  • RELIABLE DATA TRANSMISSION: LC coupler supports 1/10/40/100Gbps for reliable transfer rates between devices; Insertion Loss below 0.2dB exceeds TIA 568 B.3 industry standards; Supports both LED and VCSEL sources
  • COMPATIBILITY: Versatile compatibility with Single Mode and Multimode fiber; Compatible with OS1/OS2, and OM1/OM2/OM3/OM4/OM5 cables; Supports 9/125µm, 62.5/125µm, and 50/125µm fiber cores; NOTE: Best paired with LC/LC fiber cables with UPC polished ends
  • QUICK INSTALLATION: Simple plug-and-play design requires no tools for quick and hassle-free setup; LC fiber coupler snaps securely into keystone jack with metal tabs; Deploy the coupler to an existing keystone wall plate or patch panel
  • Create instant and easy link for connecting with the network adapter
  • Versatile and durable Fiber Optic adapter
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Adapter Type
    Fiber Optic
  • Brand Name
    StarTech.com
  • Connector Type on First End
    LC/UPC Network - Female
  • Connector Type on Second End
    LC/UPC Network - Female
  • Features
    Passive Wear Resistant Plug and Play
  • Height
    0.9"
  • Length
    0.7"
  • Limited Warranty
    Lifetime
  • Manufacturer Part Number
    DMFKSLCLCCOUPLER
  • Material Details
    ABS- Housing Ceramic - Lined Inner Sleeve Metal - Tabs
  • Product Name
    Fiber Optic Duplex Network Adapter
  • Product Type
    Network Adapter
  • Width
    0.7"
