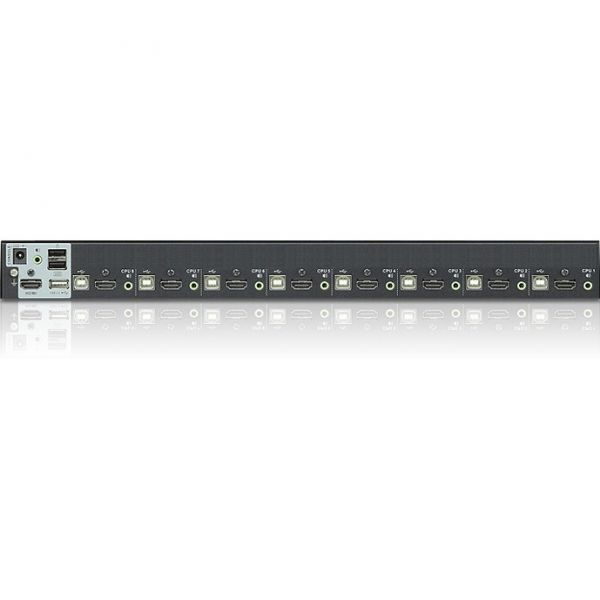

ATEN 8-Port USB HDMI KVM Switch-TAA Compliant
Product Number: SYNX3929667
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
ATEN 8-Port USB HDMI KVM Switch-TAA Compliant
8 Computer(s) - 1 Local User(s) - 1920 x 1200 - 1 x Network (RJ-45) - 12 x USB - 9 x HDMI - Rack-mountable
Description:
The CS1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard, USB mouse, and monitor console. The CS1798 can be cascaded up to three levels - to control up to 512 computers - all from a single console. In addition the CS1798 features multi-display functionality, which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment. Furthermore, the CS1798 comes with ATEN's on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD confi guration backup/restore to save/back up the OSD settings and restore them as needed. The CS1798 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).
More from the Manufacturer
More from the Manufacturer
- One USB console controls up to eight HDMI interface computers and two additional USB 2.0 devices
- HDMI compatible
- Cascadable to three levels-control up to 512 computers*1
- Multi-Display feature - stack up to eight CS1798 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
- 2-port USB 2.0 hub built in
- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- Independent switching of KVM and USB focus
- OSD Backup/Restore feature-enables the administrator to back up the switch's configuration and user profile information
- Video DynaSync - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- With this KM Switchbox, avoid the constant?switching of?cables between sources
- Get reliable connectivity between 8 computers and 1 local users
- Enjoy watching any class of content on 1920 x 1200 resolution
- Hot-pluggable USB interface for a quick connection
- The rack-mountable form factor provides convenient installation
Product Specifications
-
Brand NameAten
-
Country of OriginTaiwan
-
Depth43.7"
-
Environmentally FriendlyYes
-
Form FactorRack-mountable
-
Graphic ModeWUXGA
-
HDMIYes
-
HeadphoneYes
-
Height4.4"
-
Input Voltage5 V DC
-
Manufacturer Part NumberCS1798
-
Maximum Video Resolution1920 x 1200
-
MicrophoneYes
-
Minimum Scan Interval1 Second
-
Network (RJ-45)Yes
-
Number of Computers Supported8
-
Number of HDMI Ports9
-
Number of Local Users Supported1
-
Number of Network (RJ-45) Ports1
-
Number of USB Ports12
-
Package Contents8-Port USB HDMI KVM Switch Rack Mounting Kit 2 x Custom USB HDMI KVM Cable Sets (2L7D02UH) 1 x Firmware Upgrade Cable 1 x Power Adapter 1 x Foot Pad Set (4 pcs) 1 x Quick Start Guide
-
Platform SupportedLinux Mac PC Sun
-
Product ModelCS1798
-
Product Name8-Port USB HDMI KVM Switch
-
Product TypeKM Switchbox
-
USBYes
-
Width25.7"
