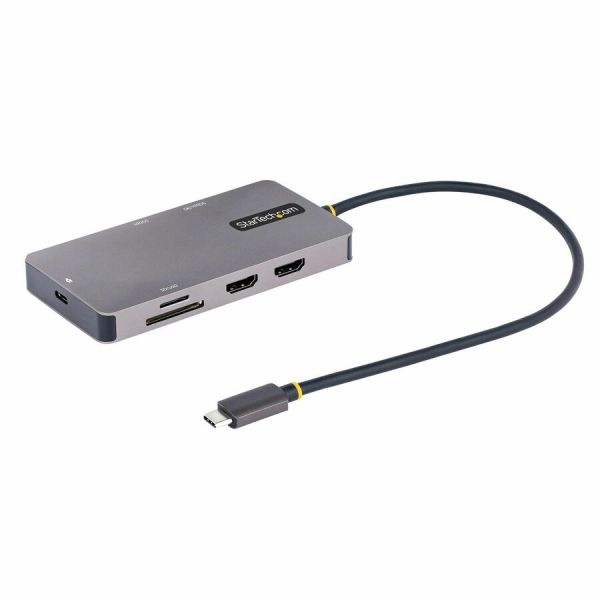

StarTech.com USB C Multiport Adapter, Dual HDMI, 4K 60Hz, 2x 5Gbps USB-A Hub, 100W Power Delivery, GbE, SD/MicroSD, USB C Mini Dock
Loading...
Product Description
StarTech.com USB C Multiport Adapter, Dual HDMI, 4K 60Hz, 2x 5Gbps USB-A Hub, 100W Power Delivery, GbE, SD/MicroSD, USB C Mini Dock
USB C Multiport Adapter w/dual 4K60Hz HDMI 2.0b HDR video via DP 1.4/DSC, MST (4K60 GPU dependent) - Alternative to DK30C2DHAGPD - Mini Dock w/2x USB-A 3.2/3.1 5Gbps hub (1x BC 1.2) | 100W PD pass-through or laptop bus powered - 12in Type-C cable
This USB Type-C Multiport Adapter with DP 1.4 Alternative Mode, DSC and MST, supports dual-HDMI (HDR) video with resolutions of up to 4K 60Hz uncompressed video. The mini travel dock turns your Dell XPS, Lenovo X1 Carbon, HP Elite/ProBook, or other USB-C laptop into a workstation, anywhere you go. The USB-C docking station provides dual HDMI outputs, a 2-port USB 3.2 Gen 1 Type-A (5Gbps) Hub including a BC 1.2 port to power and charge a USB peripheral, SD and MicroSD card readers, and a Gigabit Ethernet port, all through one connection to your laptop's USB-C or Thunderbolt 3/4 port. In addition, it offers advanced charging through USB Power Delivery (PD) 3.0 pass-through via an integrated 12-inch (30 cm) USB-C host cable, for more set up flexibility.
High-Performance Dual-HDMI Video via MST
The compact docking station connects your laptop to two HDMI monitors, creating a powerful workstation. It supports DP 1.4 Alt Mode with DSC and MST, for uncompressed video performance up to dual 4K (3840 x 2160p) at 60Hz, depending upon your host computer. The dock also supports the use of ultrawide monitors.
Video performance, such as resolution and refresh rate across both monitors, is dependent upon your host computer and its video controller. A source device with support for DisplayPort 1.4, paired with DSC and DP 1.4 enabled HDMI displays, are required to achieve dual 4K 60Hz. Please review the specifications of your computer and displays, to determine expected video performance. StarTech.com performs rigorous performance benchmarks with all major computer models. The video performance results of our testing are listed below:
Dual Display Host Computer Model
Monitor #1 Maximum Resolution
Monitor #2 Maximum Resolution Lenovo X1 Carbon G9 3840x2160@60Hz 3840x2160@60Hz HP EliteBook 850 G8 3840x2160@60Hz 3840x2160@30Hz Dell XPS 9310 2560x1600@60Hz 2560x1600@60Hz
Single Display
Host Computer Model
Monitor Maximum Resolution Dell XPS 9310 3840x2160@60Hz Lenovo X1C G9 3840x2160@60Hz HP EliteBook 850 3840x2160@60Hz HP ProBook 450 G8 3840x2160@60Hz Surface Laptop 3 3840x2160@60Hz Dell G5 SE (AMD) 3840x2160@60Hz
Connect Your Devices
The USB-C to USB 3.2 Gen 1 (5Gbps) hub provides two USB-A ports for connecting your USB devices.
Multiple Use Cases
A versatile dock solution for use at your office desk, home office, hotel desk, or in the boardroom. It's portable enough to be carried in your bag / backpack for mobile use. The USB-C dock can operate with bus-power alone, or with a USB-C power adapter connected to the pass-through port - for full laptop and peripheral charging. The lightweight docking station features a built-in 12 in (30 cm) USB-C host cable.
More from the Manufacturer
More from the Manufacturer
High-Performance Dual-HDMI Video via MST
The compact docking station connects your laptop to two HDMI monitors, creating a powerful workstation. It supports DP 1.4 Alt Mode with DSC and MST, for uncompressed video performance up to dual 4K (3840 x 2160p) at 60Hz, depending upon your host computer. The dock also supports the use of ultrawide monitors.
Video performance, such as resolution and refresh rate across both monitors, is dependent upon your host computer and its video controller. A source device with support for DisplayPort 1.4, paired with DSC and DP 1.4 enabled HDMI displays, are required to achieve dual 4K 60Hz. Please review the specifications of your computer and displays, to determine expected video performance. StarTech.com performs rigorous performance benchmarks with all major computer models. The video performance results of our testing are listed below:
Dual Display Host Computer Model
Monitor #1 Maximum Resolution
Monitor #2 Maximum Resolution Lenovo X1 Carbon G9 3840x2160@60Hz 3840x2160@60Hz HP EliteBook 850 G8 3840x2160@60Hz 3840x2160@30Hz Dell XPS 9310 2560x1600@60Hz 2560x1600@60Hz
Single Display
Host Computer Model
Monitor Maximum Resolution Dell XPS 9310 3840x2160@60Hz Lenovo X1C G9 3840x2160@60Hz HP EliteBook 850 3840x2160@60Hz HP ProBook 450 G8 3840x2160@60Hz Surface Laptop 3 3840x2160@60Hz Dell G5 SE (AMD) 3840x2160@60Hz
Connect Your Devices
The USB-C to USB 3.2 Gen 1 (5Gbps) hub provides two USB-A ports for connecting your USB devices.
Multiple Use Cases
A versatile dock solution for use at your office desk, home office, hotel desk, or in the boardroom. It's portable enough to be carried in your bag / backpack for mobile use. The USB-C dock can operate with bus-power alone, or with a USB-C power adapter connected to the pass-through port - for full laptop and peripheral charging. The lightweight docking station features a built-in 12 in (30 cm) USB-C host cable.
More from the Manufacturer
More from the Manufacturer
- 8-IN-1 MULTIPORT ADAPTER: USB-C dock features DP 1.4 Alt Mode w/DSC & MST supporting up to Dual 4K 60Hz (4K 30Hz w/DP1.2) HDMI 2.0b HDR video; 2-port USB-A 3.2/3.1 Gen 1 5Gbps hub; 1x BC 1.2/7.5W Fast Charge; 100W USB PD, SD/MicroSD card reader, GbE
- HIGH-PERFORMANCE DUAL VIDEO: Supports dual-HDMI 2.0b uncompressed video up to 4K 60Hz via MST (video performance depends upon host computer's GPU, DP 1.4 w/DSC req. for dual 4K 60Hz); Supports ultrawide 21:9 aspect ratios & lower resolutions such as 1080p
- VERSATILE POWER: USB bus powered or via external USB-C power adapter; 100W USB Power Delivery 3.0 pass through w/15W reserved for adapter to avoid video flickering, device dropouts, or overdrawing power common in other hubs; up to 85W for laptop charging
- EASY INSTALLATION: Extended connectivity with attached 12in (30cm) USB Type-C host cable; Automatic driver setup; Ideal for office or work-from-home workstations, and presenting from a boardroom, or conferencing with remote workers using Zoom/MS Teams
- COMPATIBILITY: USB-C travel docking station is compatible with Windows-based USB-C & Thunderbolt 3/4/USB4 laptops such as HP, Dell, Lenovo, Surface Laptop 3 and up/Pro 7 and up, Chromebooks, plus support for Windows, Chrome OS
- CONNECTIVITY TOOLS: This mini dock features a software application that improves performance and security. It includes a MAC Address Changer, USB Event Monitoring, Windows Layout, and Wi-Fi Auto Switch utilities.
- Wired connectivity technology provides a high-powered and dependable connection
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C host interface allows powerful and efficient transfer of data with maximum productivity
- Notebook/Tablet PC device supported for your convenience and better usability
- Portable mount docking station offers great flexibility, can be taken and used anywhere
- Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
- The HDMI supports digital audio/video output to a wide assortment of HD gadgets
Product Specifications
-
Brand NameStarTech.com
-
CompatibilityCompatible Products: Dell XPS Lenovo X1 Carbon HP Elite HP ProBook Microsoft Surface Laptop 3 Microsoft Surface Up Microsoft Surface Pro 7 Microsoft Surface up
-
Connectivity TechnologyWired
-
Country of OriginVietnam
-
Device SupportedNotebook/Tablet PC
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Ethernet TechnologyGigabit Ethernet
-
Form FactorPortable
-
HDMIYes
-
HDMI Version2.0
-
Height0.60"
-
Host InterfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
-
Limited Warranty3 Year
-
Manufacturer Part Number120B-USBC-MULTIPORT
-
Maximum Power Supply Wattage100 W
-
Memory Card ReaderYes
-
Memory Card SupportedmicroSD SD SDHC SDXC
-
Network (RJ-45)Yes
-
Number of Displays Supported2
-
Number of HDMI Outputs2
-
Number of USB 3.2 Gen 1 Type-A Ports1
-
Number of USB Type-A Ports2
-
Number of USB Type-C Ports2
-
Operating System SupportedChromeOS Windows 7 Windows 8 Windows 8.1 Windows 10 Windows 11
-
Package ContentsDocking Station 1 x Quick-Start Guide
-
Product ColorSpace Gray
-
Product NameDocking Station
-
Product TypeDocking Station
-
Screen Mode Supported4K
-
Supported Resolutions3840 x 2160
-
Width5.70"
