StarTech.com 5ft CAT6a Ethernet Cable - 10 Gigabit Category 6a Shielded Snagless 100W PoE Patch Cord - 10GbE Black UL Certified Wiring/TIA has been discontinued, but we found this replacement.

StarTech.com 5m (16.4ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125 Zipcord, 100G, LSZH Fiber Jumper Cord

Product #: SYNX2852446
$34.39
Learn more
Free Shipping - This item ships free on orders over $45
Delivered by Fri 12/26 Mon 12/29 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

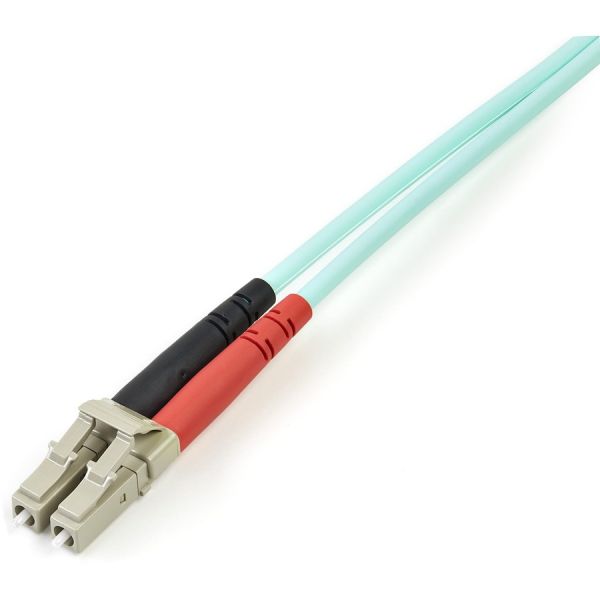

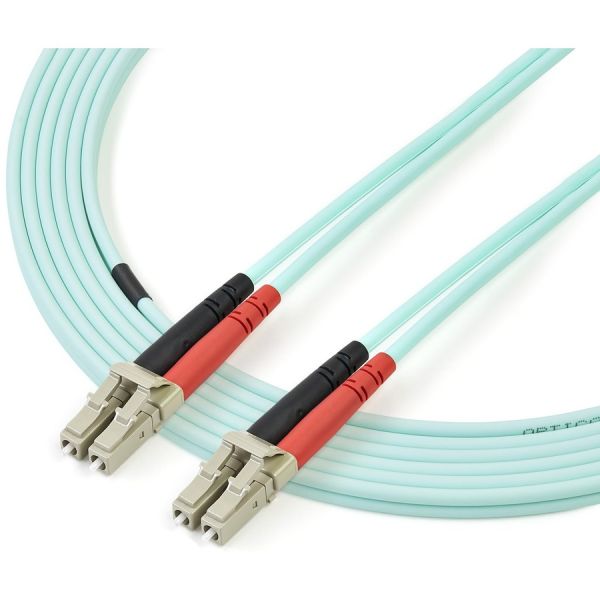

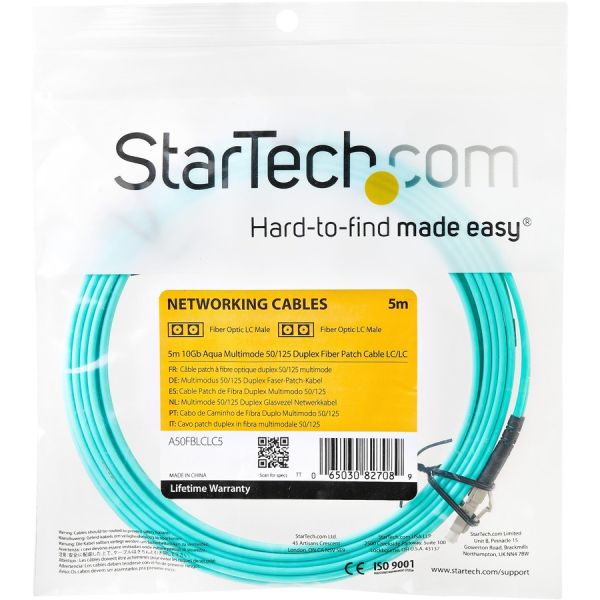

StarTech.com 5m (16.4ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125 Zipcord, 100G, LSZH Fiber Jumper Cord
5m (16.4ft) OM3 Multimode LC/LC-UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125um Core w/ Aramid Sheath; Bandwidth: 2000MHz·km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range: -20 to 60°C (-4 to 140°F)
The A50FBLCLC5 5m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire - an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
More from the Manufacturer
  • OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
  • QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
  • RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
  • WIDE COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers
  • SPECS: 5m (16.4ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
  • 2x LC MM male connectors
  • Fiber core protects against EMI
  • Laser-optimized multimode fiber (LOMMF)
  • Protective, crush-resistant fiber sheath to improve tensile strength
  • Housed in a LSZH, flame-retardant jacket to ensure minimal smoke, toxicity and corrosion if exposed to high sources of heat
  • OM3 (50/125) 2000MHz multimode fiber
  • Compatible with 850nm VCSEL source
  • Ideal use in industrial settings, schools and central offices
  • Attenuation loss meets or exceeds industry standards
  • Molded connectors
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    StarTech.com
  • Cable Characteristic
    Patch Cable
  • Cable Length
    16.40 ft
  • Cable Type
    Fiber Optic
  • Conductor
    Copper
  • Connector Gender on First End
    Male
  • Connector Gender on Second End
    Male
  • Connector Type on First End
    LC Network - Male
  • Connector Type on Second End
    LC Network - Male
  • Connector on First End Details
    2 x LC Network - Male
  • Connector on Second End Details
    2 x LC Network - Male
  • Country of Origin
    China
  • Data Transfer Rate
    10 Gbit/s
  • Device Supported
    Network Device Patch Panel Hub Router Switch
  • Features
    Corrosion Resistant Flame Retardant Halogen Free
  • Fiber Optic Cable Core/Cladding Specification
    50/125 µm
  • Fiber Optic Mode
    Multi-mode
  • Jacket Type
    LSZH
  • Limited Warranty
    Lifetime
  • Manufacturer Part Number
    A50FBLCLC5
  • Product Color
    Aqua
  • Product Name
    5m 10Gb Aqua Multimode 50/125 Duplex LSZH Fiber Patch Cable LC - LC
  • Product Type
    Network Cable
