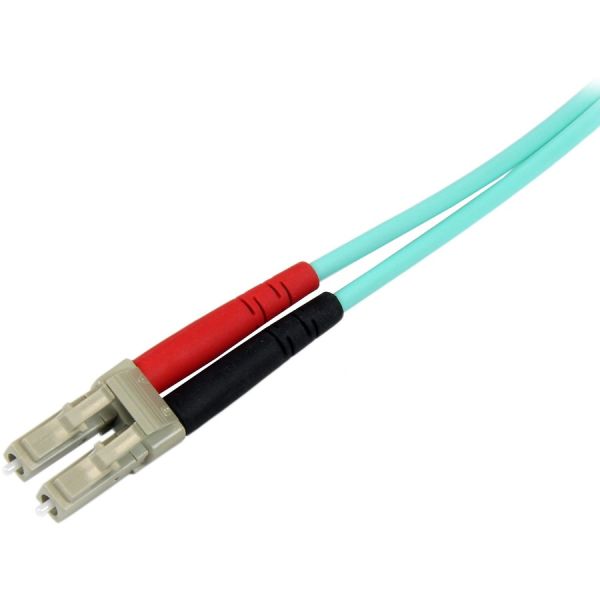

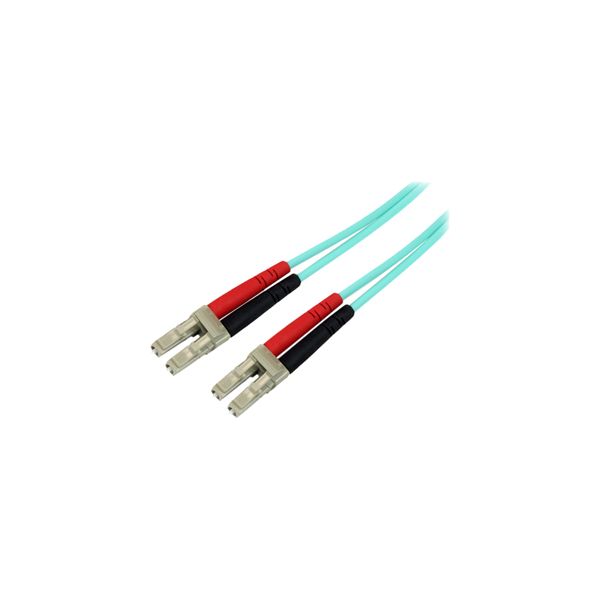

StarTech.com 10m (30ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125 Zipcord, 100G, LSZH Fiber Jumper Cord
Product Number: SYNX2852444
$43.26
Loading...
Loading...
Product Description
StarTech.com 10m (30ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125 Zipcord, 100G, LSZH Fiber Jumper Cord
10m (33ft) OM3 Multimode LC/LC-UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125µm Core w/ Aramid Sheath; Bandwidth: 2000MHz·km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range: -20 to 60°C (-4 to 140°F)
Description:
OM3 LC to LC Multimode Duplex Fiber Optic Patch Cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10-Gigabit Ethernet connection. With laser-optimized multimode fiber (LOMMF), it is ideal for connecting 850nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. High-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications. Maximum data-transfer rate is 100Gbps. Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat or in the event of a fire. Use in a wide range of environments, including industrial settings, central offices and schools as well as residential settings. OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.
More from the Manufacturer
More from the Manufacturer
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125?m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2
- SPECS: 10m (33ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ?2000MHz?km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
- 2x LC MM male connectors
- Fiber core protects against EMI
- Laser-optimized multimode fiber (LOMMF)
- Protective, crush-resistant fiber sheath to improve tensile strength
- Housed in a LSZH, flame-retardant jacket to ensure minimal smoke, toxicity and corrosion if exposed to high sources of heat
- OM3 (50/125) 2000MHz multimode fiber
- Compatible with 850nm VCSEL source
- Ideal use in industrial settings, schools and central offices
- Attenuation loss meets or exceeds industry standards
- Molded connectors
Related Articles
Need more information?
Ask a Question
Read More
Product Specifications
-
Brand NameStarTech.com
-
Cable CharacteristicPatch Cable
-
Cable Length32.81 ft
-
Cable TypeFiber Optic
-
Connector Gender on First EndMale
-
Connector Gender on Second EndMale
-
Connector Type on First EndLC Network - Male
-
Connector Type on Second EndLC Network - Male
-
Connector on First End Details2 x LC Network - Male
-
Connector on Second End Details2 x LC Network - Male
-
Core/Cladding Diameter50/125 µm
-
Country of OriginChina
-
Data Transfer Rate10 Gbit/s
-
Device SupportedNetwork Device
-
FeaturesFlame Retardant Molded Corrosion Resistant Halogen Free
-
Fiber Optic ModeMulti-mode
-
Jacket TypeLSZH
-
Limited WarrantyLifetime
-
Manufacturer Part NumberA50FBLCLC10
-
Product ColorAqua
-
Product Name10m 10 Gb Aqua Duplex LSZH Fiber Patch Cable LC-LC
-
Product TypeNetwork Cable
