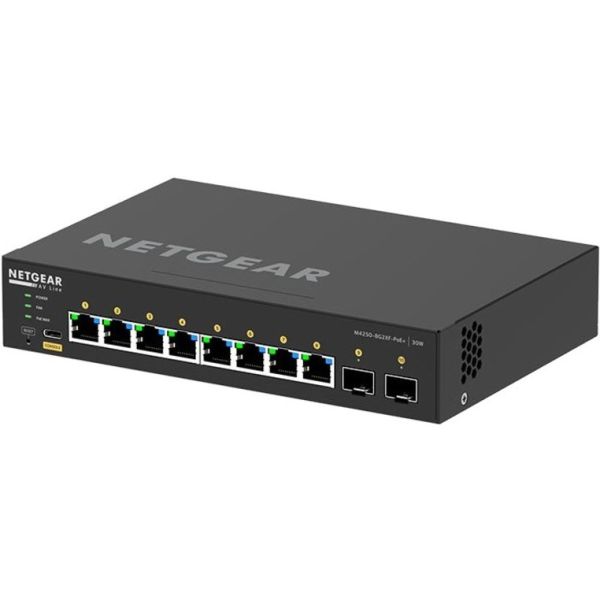

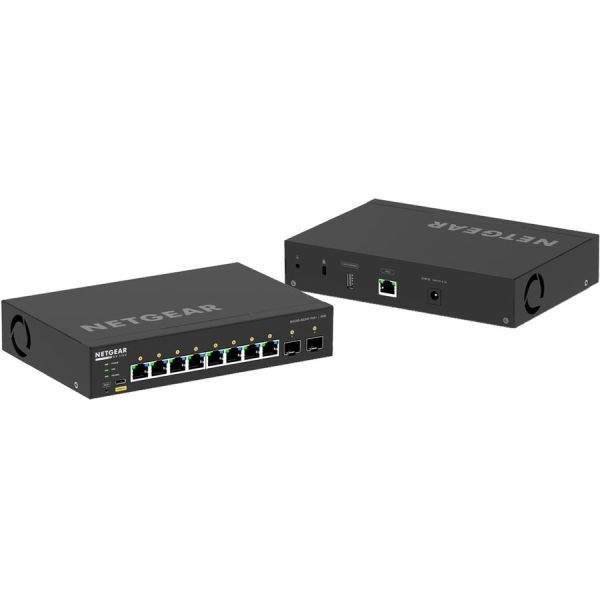

Netgear AV Line M4250 GSM4210PX Ethernet Switch
Product Number: ETLZ1074224572
$945.28
Loading...
Loading...
Product Description
Netgear AV Line M4250 GSM4210PX Ethernet Switch
8 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-T, 10GBase-X - 3 Layer Supported - 220 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Desktop - Lifetime Limited Warranty
Description:
The NETGEAR AVLine M4250 series was designed with input from AV Professionals. The result is a line of switches built from the ground upto support 1Gb audio and video over IP with customized hardware and software along with dedicated service and support.
NETGEAR M4250 series key features:
Ranges from 8 to 48 ports with a variety of PoE+ and Ultra90 PoE++ options for 15.4W, 30W, 60W, 75W and 90W AVoIP endpoints
Uplink options include1G for audio installations or standalone video installations as well as 10G uplinks for larger scale video deployments
Also includes12-port multi-gigabit Ethernet and 16-port 1G/10G fiber models for plug and play aggregation in a star topology
Rack moun tmodels designed for a clean integration with traditional, rack-mounted, AV equipment

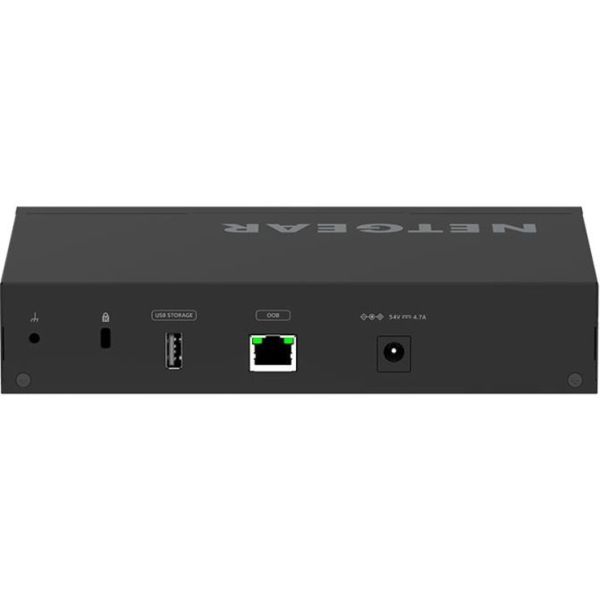

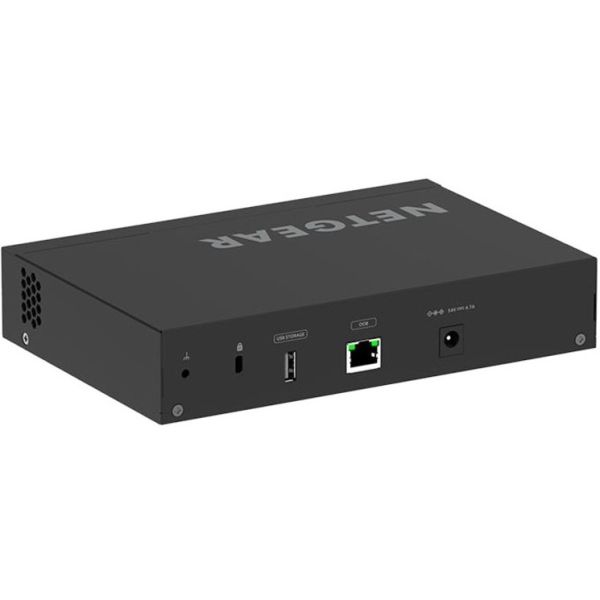

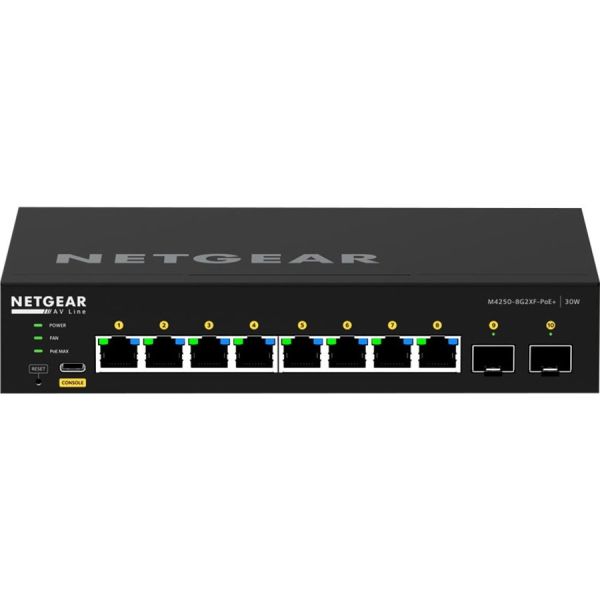

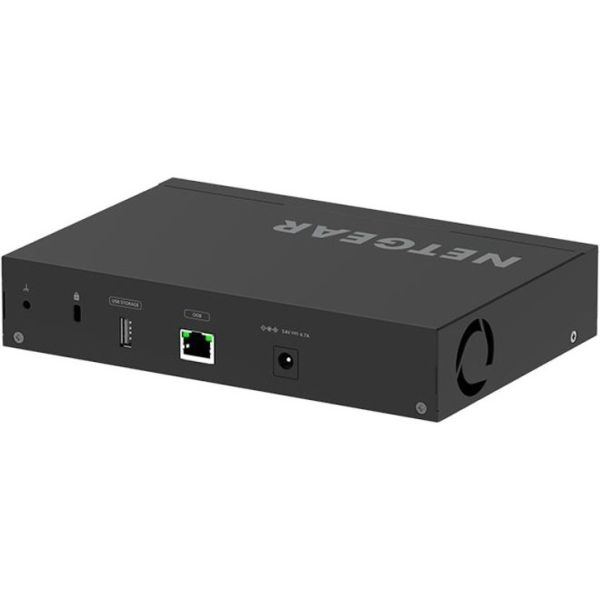

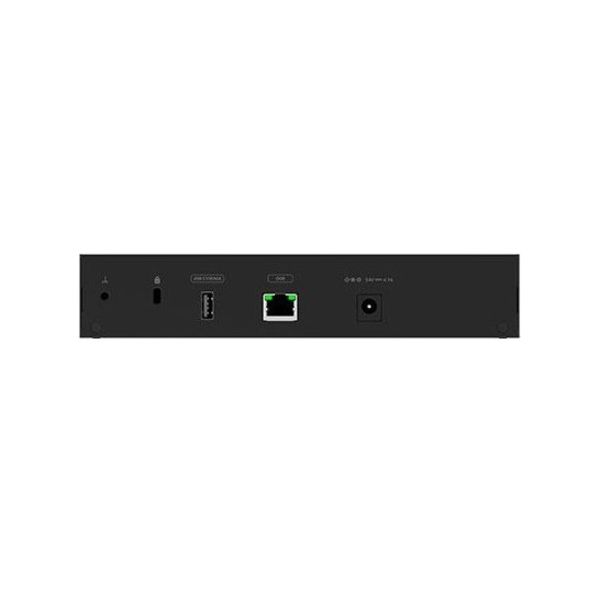

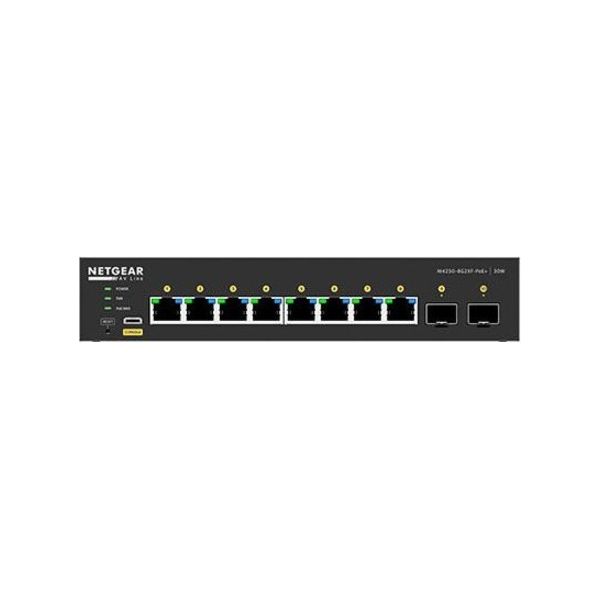

The M4250 switches come with a sleek, black display panel with status in front and all cabling plus additional status in the back
Reversed mounting is possible when ports are desired on the front of the rack
A second pair of rack mount ears allows the switches to be mounted recessed by 2-inches to allow for the cabling

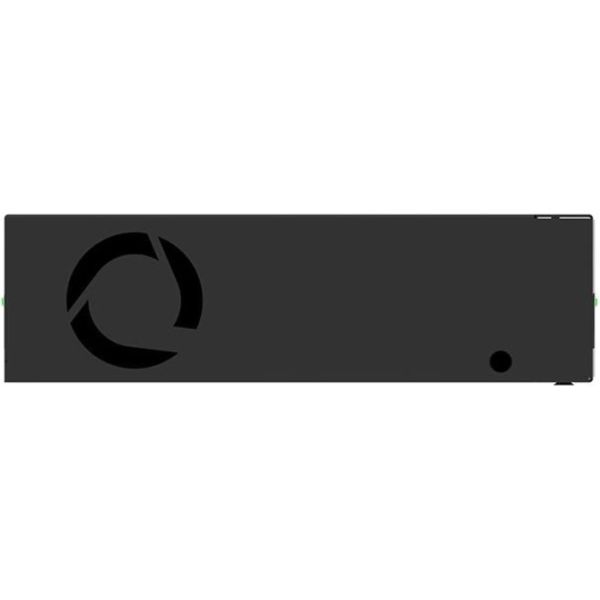

Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totaly fanless operation

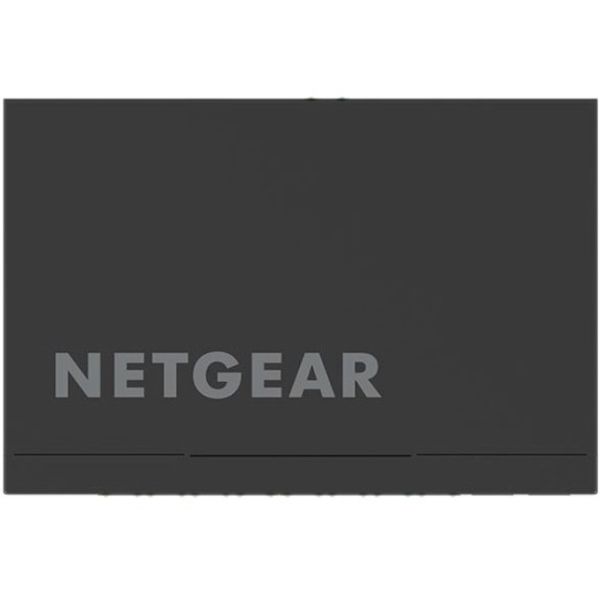

Threaded holes on the bottom (4xM5 for 50x100mm VESA) and in front (1xM10 for clamps) allow for universal mounting option soutside the rack as well
New!M4250 desktop versions for use outside of the AV racks in conference rooms, mobile studios, on the wall, under a table or behind a screen
NETGEAR M4250 series AV software features:
Pre-configured for audio and video over IP out of the box, the M425 switches enable encoders and decoders to be connected with zero configuration
When more configuration is required, an AV web-based GUI is available
This interface has been specially designed for AV installers with specific AV-related controls made more accessible and with port-based profiles
For audio, profiles for Dante, Q-SYS and AES67 are built-in, as well as an AVB profile (AVB license sold separately)
For video, the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Kramer KDS, Aurora Multimedia, ZeeVee, Atlona, Dante and SDVoE
Other AV CODECs and manufacturers are supported as well as audio/video/control mixed profiles
To further simplify star deployments, NETGEAR IGMP Plus brings multicast automation between all M4250 switches,and with M4300/M4500
With Auto-Trunk and Auto-LAG, simply connect M4250 switches together and you are done!
NETGEAR M4250 series key features:
Ranges from 8 to 48 ports with a variety of PoE+ and Ultra90 PoE++ options for 15.4W, 30W, 60W, 75W and 90W AVoIP endpoints
Uplink options include1G for audio installations or standalone video installations as well as 10G uplinks for larger scale video deployments
Also includes12-port multi-gigabit Ethernet and 16-port 1G/10G fiber models for plug and play aggregation in a star topology
Rack moun tmodels designed for a clean integration with traditional, rack-mounted, AV equipment
The M4250 switches come with a sleek, black display panel with status in front and all cabling plus additional status in the back
Reversed mounting is possible when ports are desired on the front of the rack
A second pair of rack mount ears allows the switches to be mounted recessed by 2-inches to allow for the cabling
Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totaly fanless operation
Threaded holes on the bottom (4xM5 for 50x100mm VESA) and in front (1xM10 for clamps) allow for universal mounting option soutside the rack as well
New!M4250 desktop versions for use outside of the AV racks in conference rooms, mobile studios, on the wall, under a table or behind a screen
NETGEAR M4250 series AV software features:
Pre-configured for audio and video over IP out of the box, the M425 switches enable encoders and decoders to be connected with zero configuration
When more configuration is required, an AV web-based GUI is available
This interface has been specially designed for AV installers with specific AV-related controls made more accessible and with port-based profiles
For audio, profiles for Dante, Q-SYS and AES67 are built-in, as well as an AVB profile (AVB license sold separately)
For video, the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Kramer KDS, Aurora Multimedia, ZeeVee, Atlona, Dante and SDVoE
Other AV CODECs and manufacturers are supported as well as audio/video/control mixed profiles
To further simplify star deployments, NETGEAR IGMP Plus brings multicast automation between all M4250 switches,and with M4300/M4500
With Auto-Trunk and Auto-LAG, simply connect M4250 switches together and you are done!
- Effectively increases available bandwidth on your network
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
- Power Adapter power source for required power supply to ensure maximum efficiency
- Can work as layer 3 routing for scalable network design
- The desktop installation makes it ideal for deployments outside the wiring closet
- Management capability provides control over setup and configuration of your network
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Optical Fiber media support for a dependable and productive connectivity
Product Specifications
-
Brand NameNetgear
-
Depth5.5"
-
Ethernet Technology10 Gigabit Ethernet
-
Expansion Slot TypeSFP+
-
FeaturesFanless
-
Form FactorDesktop
-
Height1.6"
-
Layer Supported3
-
Limited WarrantyLifetime
-
ManageableYes
-
Manufacturer Part NumberGSM4210PX-100NAS
-
Media Type SupportedOptical Fiber Twisted Pair
-
Network (RJ-45)Yes
-
Network Technology10GBase-T 10GBase-X
-
Networking StandardsIEEE 802.1ak IEEE 802.1as IEEE 802.1AX IEEE 802.1Qat IEEE 802.1Qav IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3az IEEE 802.3bt
-
Number of SFP+ Slots2
-
PoE (RJ-45) PortYes
-
PoE Budget220 W
-
Power SourcePower Adapter
-
Product LineAV Line
-
Product ModelGSM4210PX
-
Product NameAV Line M4250 GSM4210PX Ethernet Switch
-
Product SeriesM4250
-
Product TypeEthernet Switch
-
Total Number of Expansion Slots2.0
-
Total Number of Network Ports8
-
Uplink PortYes
-
Width8.3"
