StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe to Dual Serial DB9 RS-232 Controller - 16550 UART - Windows and Linux
Product Number: SYNX2767437
$47.92
Loading...
Loading...
Product Description
StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe to Dual Serial DB9 RS-232 Controller - 16550 UART - Windows and Linux
2-port PCI Express RS232 serial controller card 16550 UART/ASIX MCS9922CV-AA - Bi-directional speeds 460.8Kbps/port | 128 byte FIFO | Pin 9 pwr out 5v/12v/none - Expansion card w/ Std bracket (low profile incl) - Win/Linux
Description:

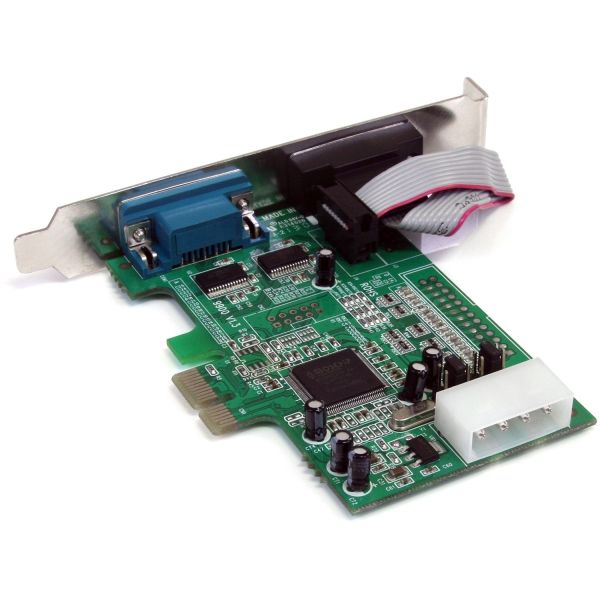

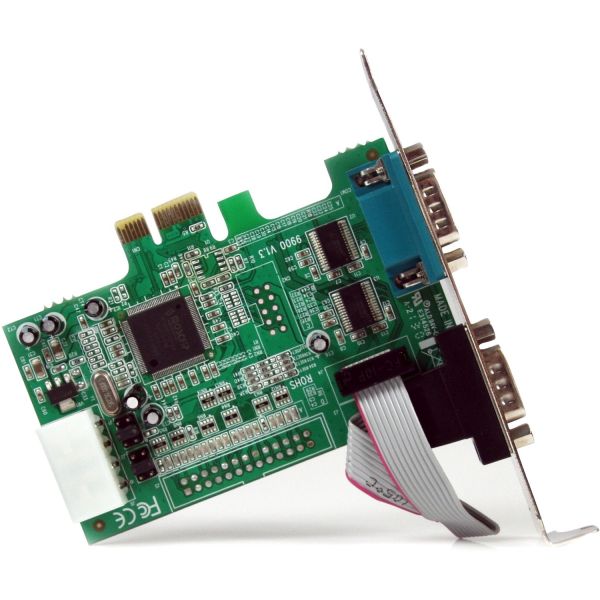

The PEX2S553 PCI Express serial card lets you turn a PCI Express slot into 2 RS232 (DB9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), and reducing the load applied to the CPU by as much as 48% over conventional serial cards.
The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows and Linux Kernel 2.6.11 to 4.11.x, and MAC OS 10.4 and above.
Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case.
This product is a replacement for our PEX2S552 card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows and Linux Kernel 2.6.11 to 4.11.x, and MAC OS 10.4 and above.
Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case.
This product is a replacement for our PEX2S552 card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Two high speed RS232 serial ports with support for data transfer rates up to 460.8 Kbps
- Compliant with PCI Express base specifications revision 1.0a
- Includes half-height/low profile mounting bracket
- Selectable power output on pin 9 for the serial port
- 128-byte deep FIFO per transmitter and receiver
- Native single-Chip, single lane PCI Express
- Automated out-of-band flow control using CTS/RTS and DSR/DTR
- Automated in-band software flow control using programmable Xon/Xoff in both directions
Product Specifications
-
Additional InformationNative single-chip, single lane PCI Express chipset delivers true PCIe performance. Standard and low profile/half-height bracket included to ensure fitment in any system. Easy to install and use with full step-by-step instructions saving time and hassle. OS Compatibility: Windows DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS X 10.4 to 10.10 Linux kernel 2.6.x to 4.11.x LTS Versions only
-
Brand NameStarTech.com
-
Card HeightHalf-height/Low-profile
-
Country of OriginTaiwan
-
Data Transfer Rate460.8kB/s
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Height0.8"
-
Host InterfacePCI Express x1
-
Length4.1"
-
Limited Warranty2 Year
-
Manufacturer Part NumberPEX2S553
-
Package Contents2 Port PCIe Serial Adapter Card with 16550 Low Profile Brackets Driver CD Instruction Manual
-
Platform SupportedPC Linux Mac
-
Product ModelPEX2S553
-
Product Name2 Port PCIe Serial Adapter Card with 16550
-
Product TypeSerial Adapter
-
UART Type16550
-
Width4.7"
