StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power - 5Gbps
Product Number: SYNX3620778
$24.00$29.99
Loading...
Loading...
Product Description
StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power - 5Gbps
Add two USB 3.0 ports to your desktop computer through a PCI Express slot - PCIe USB 3.0 Controller Card - 2Port PCI Express USB 3.0 Adapter - SuperSpeed 5 Gbps USB 3 PCIe Card - Dual Profile PCI Express USB 3.0 Card with SATA Power Connector
Description:

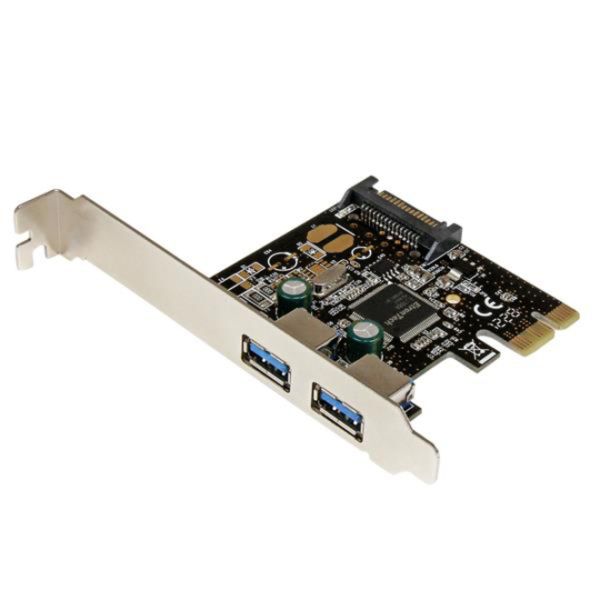

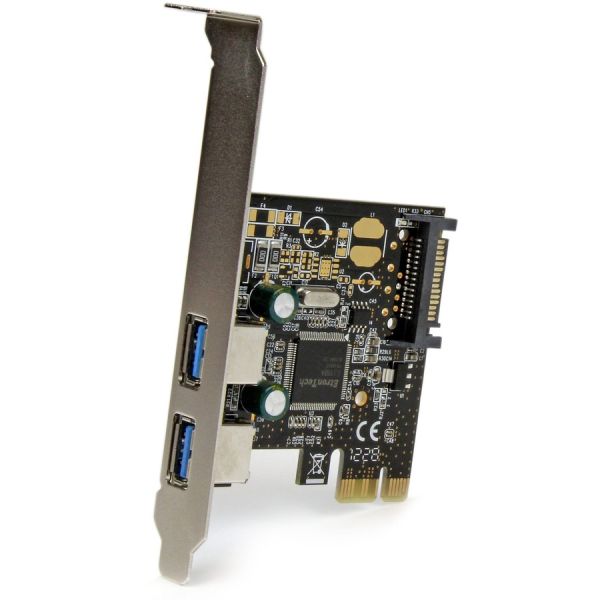

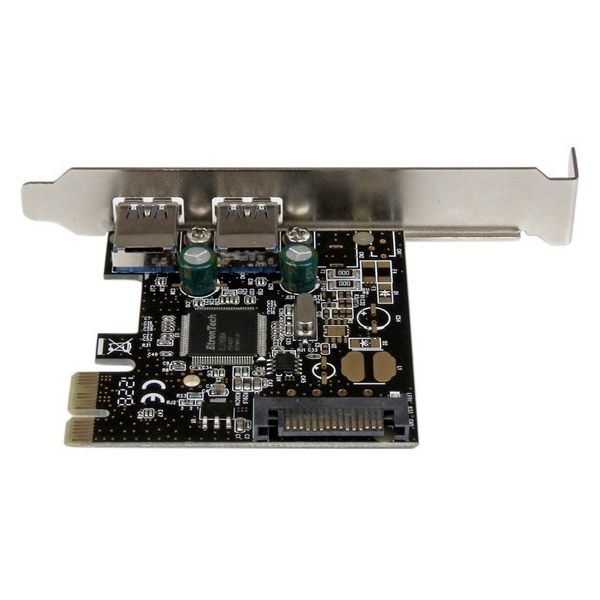

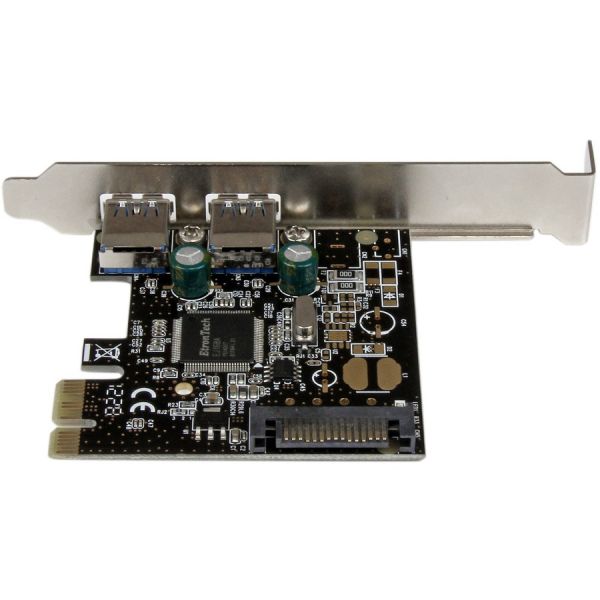

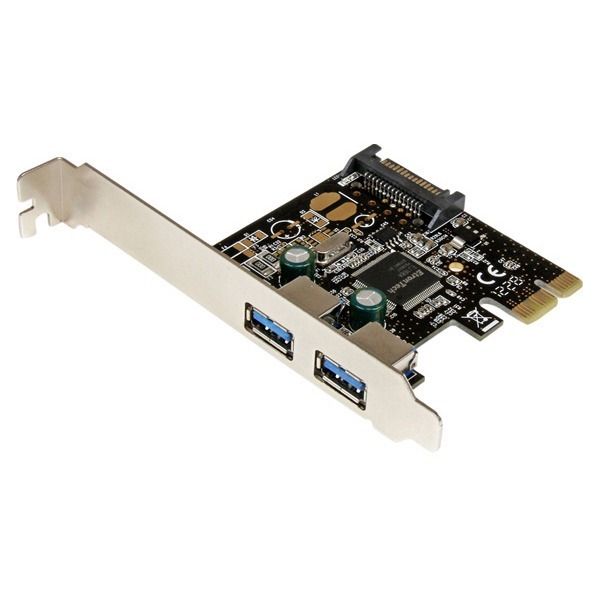

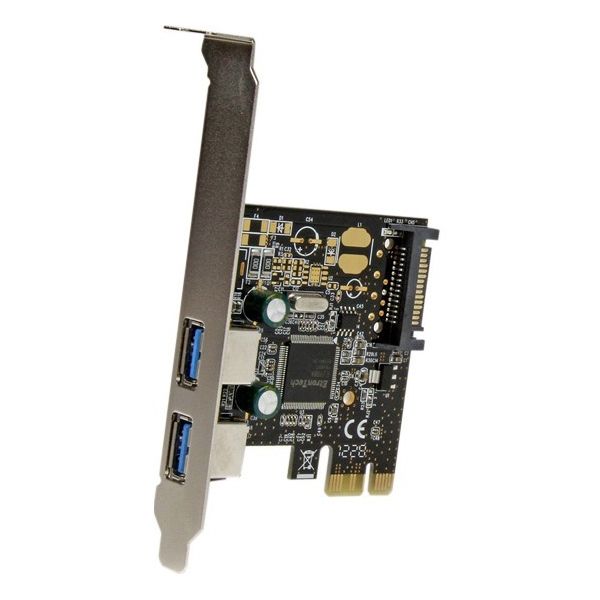

The PEXUSB3S23 2-Port PCI Express USB 3.2 Gen 1 Card lets you add two USB 3.2 Gen 1 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector.
The PCIe USB 3.2 Gen 1 adapter is compliant with USB 3.2 Gen 1 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
The PCIe USB 3.2 Gen 1 adapter is compliant with USB 3.2 Gen 1 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Provides two external USB 3.2 Gen 1 connections
- Supports data rates up to 5 Gbps
- SATA power connector (required) provides up to 900mA per USB port
- Compliant with PCI Express 2.0 specifications
- Fully compliant with USB 3.2 Gen 1 rev 1.0 and Intel xHCI rev 1.0 specifications
- Backward compatible with USB 2.0 and USB 1.0/1.1 devices
- Includes a Low Profile/half-height installation bracket
- Provides two external USB 3.0 connections
- Fully compliant with USB 3.0 rev 1.0 and Intel xHCI rev 1.0 specifications
Product Specifications
-
Additional InformationWindows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server 2012, 2008 R2, 2003
-
Brand NameStarTech.com
-
Country of OriginChina
-
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Height4.7"
-
Host InterfacePCI Express x1
-
Length3.1"
-
Limited Warranty2 Year
-
Manufacturer Part NumberPEXUSB3S23
-
Number of USB 3.2 Ports2
-
Operating System SupportedWindows 10 Windows 11 Windows 7 Windows 8 Windows 8.1 Windows Server 2003 Windows Server 2008 R2 Windows Server 2012 Windows Server 2016 Windows Server 2019 Windows Vista Windows XP
-
Package Contents1 x Low Profile Bracket 1 x Driver CD 1 x Instruction Manual 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Controller Card w/ SATA Power
-
Platform SupportedPC
-
Product ColorBlack
-
Product Name2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Controller Card w/ SATA Power
-
Product TypeUSB Adapter
-
Total Number of USB Ports2
-
Width0.8"
