StarTech.com 2S1P PCI Express Serial Parallel Combo Card
- Low profile/half-height design with optional full profile bracket
- Single-chip architecture, no bridge chip
- Supports parallel data transfer rates up to 1.5 Mbps
- Supports serial data transfer rate up to 250 Kbps (per port)

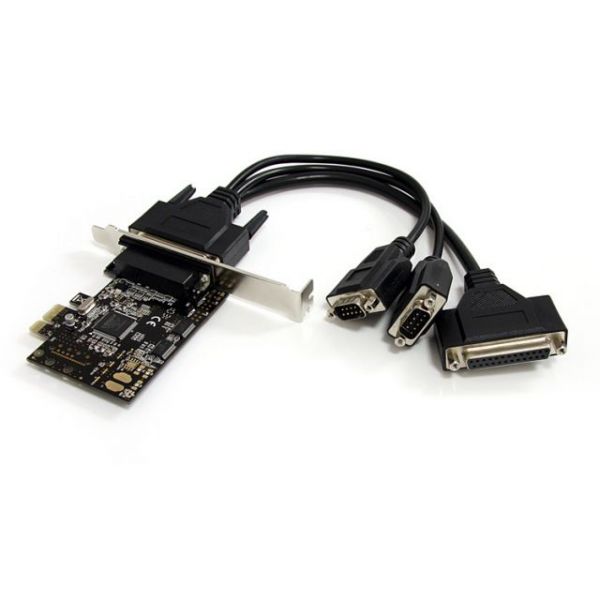

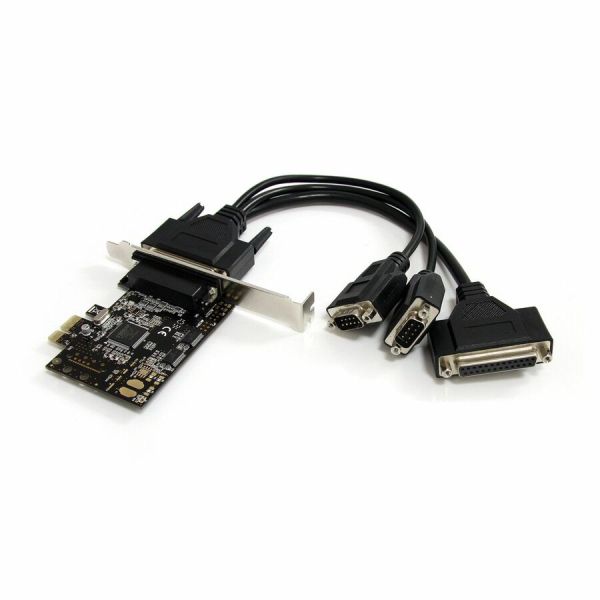

StarTech.com 2S1P PCI Express Serial Parallel Combo Card - The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port through a single PCI Express (PCIe) slot.
Suitable for almost any computer, the card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows 7/Server 2008 R2/Vista/XP/Server 2003/2000/98SE (32/64 bit), Linux and Mac OS X.
The card also features a native single-chip design that provides improved speed and reliability while reducing the CPU load by as much as 48% over conventional (bridge chip) cards.
This product is a replacement for our PEX2S1P552B card. Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
More from the Manufacturer
- Low profile/half-height design with optional full profile bracket
- Single-chip architecture, no bridge chip
- Supports parallel data transfer rates up to 1.5 Mbps
- Supports serial data transfer rate up to 250 Kbps (per port)
- Compatible with industrial standard 16C450/16C550 UART
- Supports (SPP), Enhanced Parallel Port (EPP), Enhanced Capability Port(ECP)
- PCI Express Base Specification 1.0a compliant
- On-chip 256-byte depth FIFO in transmit/receive path of each port
- Single-Lane (x1) PCI-Express host connection
-
Brand NameStarTech.com
-
Card HeightLow-profile
-
Country of OriginChina
-
Data Transfer Rate1.5MB/s Parallel Port 250kB/s Serial Port
-
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Form FactorPlug-in Card
-
Height3.1"
-
Host InterfacePCI Express x1
-
Length3.7"
-
Limited WarrantyLifetime
-
Manufacturer Part NumberPEX2S1P553B
-
Package Contents1 x Full Profile Bracket 1 x Driver CD 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable 1 x Instruction Manual
-
Parallel Port ModesECP EPP SPP
-
Platform SupportedMac PC
-
Product Name2S1P PCI Express Serial Parallel Combo Card with Breakout Cable
-
Product TypeSerial/Parallel Combo Adapter
-
UART Type16C450 16C550
-
Width0.9"
