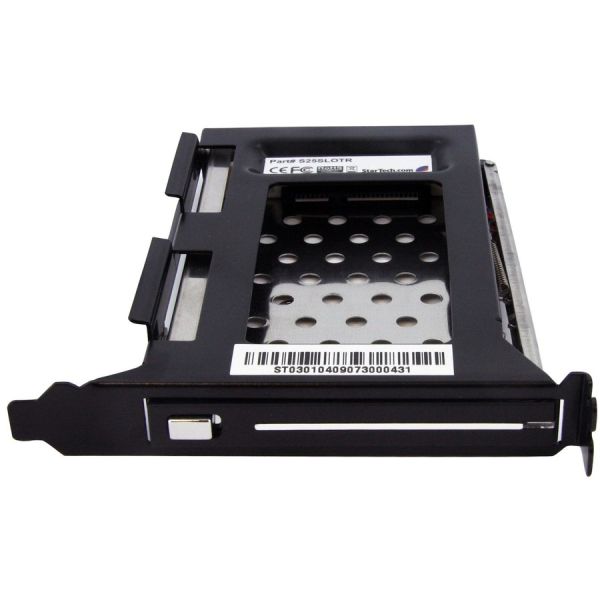

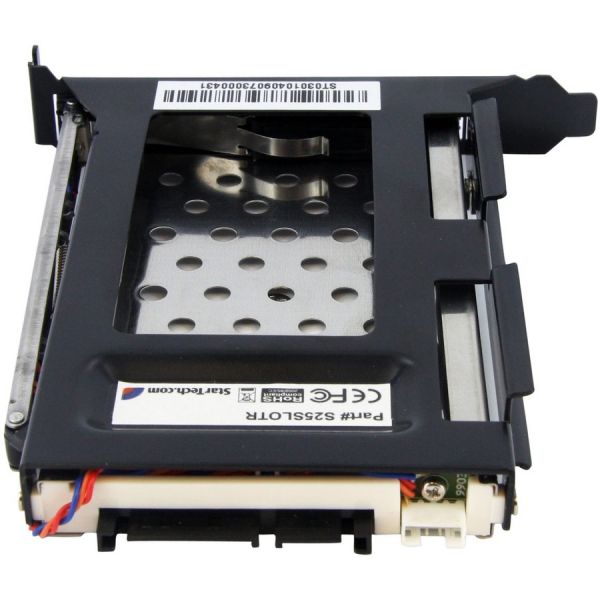

StarTech.com 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot
Product Number: SYNX2547706
$43.65
Loading...
Loading...
StarTech.com 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot
Use an available expansion card slot to install a hot swappable 2.5in hard drive
Description:
The S25SLOTR Trayless Hard Drive Rack can be installed into an available (full profile) PCI expansion card slot, providing easy access to a bare 2.5" SATA hard drive or solid state drive (SSD) from the rear panel of a computer case.
Unlike conventional hard drive enclosures, the S25SLOTR hard drive rack doesn't require that a drive be installed in a drive tray, saving the time and hassle involved in having to mount or install the hard drive for access to drive contents.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Once installed in a PCI slot (and accompanying rear panel bracket), installing a 2.5" SATA HDD is as simple as inserting it into the trayless rack. To remove the hard drive, simply hit the eject button to unlock the access door, allowing the drive to be pulled out of the computer without having to dismount the drive.
More from the Manufacturer
Unlike conventional hard drive enclosures, the S25SLOTR hard drive rack doesn't require that a drive be installed in a drive tray, saving the time and hassle involved in having to mount or install the hard drive for access to drive contents.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Once installed in a PCI slot (and accompanying rear panel bracket), installing a 2.5" SATA HDD is as simple as inserting it into the trayless rack. To remove the hard drive, simply hit the eject button to unlock the access door, allowing the drive to be pulled out of the computer without having to dismount the drive.
More from the Manufacturer
- Fits a 2.5" SATA drive into a rear full profile expansion card slot
- Trayless design: drive is not mounted into a tray or enclosure
- Latching drive door
- 50,000+ insertion rating
- Vented aluminum and steel construction
- Door mounted Power/Activity LED indicator
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD)
- Plug-and-Play and Hot-Swap compatible
Need more information?
Ask a Question
Read More
-
Additional InformationBacked by a StarTech.com 2-year warranty and free lifetime technical support Vented aluminum/steel design and a 50,000+ insertion rating ensures reliability of the drive and drive rack Utilize a free expansion card slot to add a removable 2.5" SATA hard drive bay
-
Brand NameStarTech.com
-
Certifications & StandardsCE FCC
-
Controller TypeSerial ATA/600
-
Country of OriginTaiwan
-
Depth5.7"
-
Drive InterfaceSATA/600
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Form FactorInternal
-
Height4.7"
-
Host InterfaceSerial ATA/600
-
Limited Warranty2 Year
-
Manufacturer Part NumberS25SLOTR
-
Number of 2.5" Bays1
-
Number of Hard Drives InstalledNo
-
Number of Hard Drives Supported1
-
Number of Solid State Drive InstalledNo
-
Number of Solid State Drive Supported1
-
Number of Total Expansion Bays1
-
Package Contents2.5in SATA Removable HDD Bay for PC Slot 1 x 20in SATA Cable 1 x LP4 SATA Breakout Cable 1 x Hard Drive Protective Film 1 x Mounting Screws 1 x Instruction Manual
-
Product ColorBlack
-
Product MaterialAluminum Steel
-
Product Name2.5in SATA Removable HDD Bay for PC Slot
-
Product TypeDrive Slot Adapter
-
Width0.8"
-
Wireless LANNo
