Plugable USB 3.1 Gen 2 10Gbps SATA Upright Hard Drive Dock and SSD Dock
Product Number: IGRM3V5520
$50.95
Loading...
Loading...
Product Description
Plugable USB 3.1 Gen 2 10Gbps SATA Upright Hard Drive Dock and SSD Dock
Includes both USB-C and USB 3.0 cables, supports 10TB+ drives, Driverless
Description:
Performance
Features future-proof USB 3.1 Gen 2, USB 3.0 and USB 2.0 connectivity with support for USB Type A and Type C host systems. Uses the ASMedia 1351E chipset and firmware with UASP and BOT support for maximum performance and features. Drive sleeps automatically on OS power events or 10 minutes of idle to conserve power and reduce heat.
Form Factor

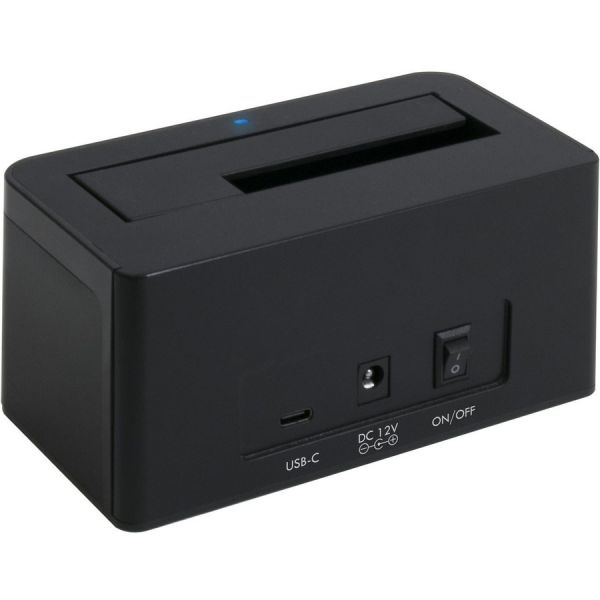

Vertical design provides maximum cooling while taking up minimal space. Robust on/off toggle switch powers off dock when not in use. Blue LED reports drive activity. 12V3A power adapter provides power for even the largest enterprise SATA drives so you can attain top performance speeds during the entire file transfer.
Compatibility

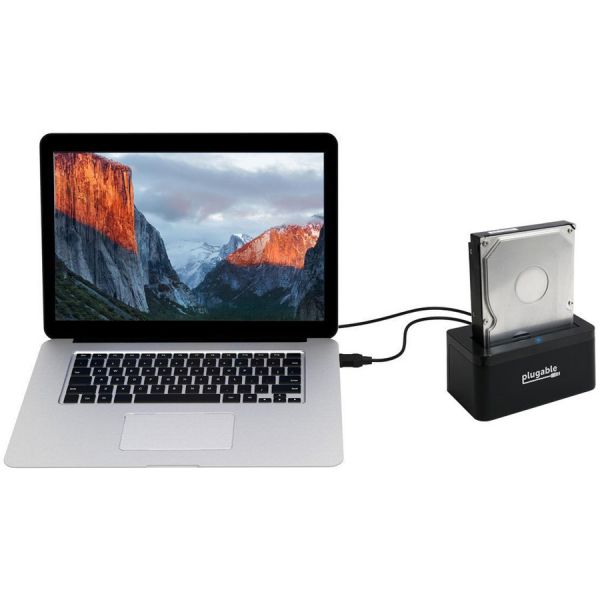

Uses standard drivers in modern operating systems, so no additional drivers required. Compatible with Windows XP through 10, macOS, and Linux / Unix. Supports 12TB+ drives on 64-bit operating systems (32-bit Windows supports drives up to 2TB max). Connects to USB-C and Thunderbolt 3 ports with the provided USB-C cable, as well as legacy USB 2.0 and USB 3.0 hosts with the provided USB 3.0 cable. Supports all 2.5" and 3.5" SATA hard drives, solid state drives, and hybrid drives up to any volume size available on the market today (currently 12TB+). IDE/EIDE/PATA, SCSI, SAS, mSATA, and M.2 drives are not compatible.
In the box

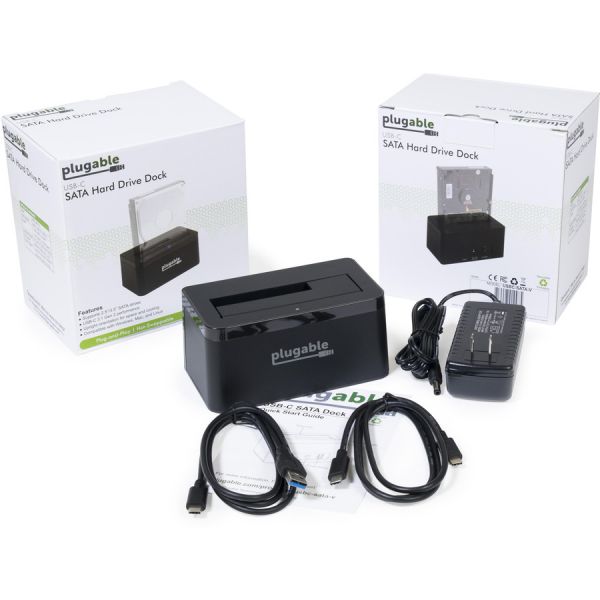

USB-C to SATA Dock, 1m/3ft USB-C to USB-C Cable, 1m/3ft USB-A to USB-C Cable, AC 12V3A Power Adapter 100-240V 50/60Hz, Quick Start Guide
More from the Manufacturer
Features future-proof USB 3.1 Gen 2, USB 3.0 and USB 2.0 connectivity with support for USB Type A and Type C host systems. Uses the ASMedia 1351E chipset and firmware with UASP and BOT support for maximum performance and features. Drive sleeps automatically on OS power events or 10 minutes of idle to conserve power and reduce heat.
Form Factor
Vertical design provides maximum cooling while taking up minimal space. Robust on/off toggle switch powers off dock when not in use. Blue LED reports drive activity. 12V3A power adapter provides power for even the largest enterprise SATA drives so you can attain top performance speeds during the entire file transfer.
Compatibility
Uses standard drivers in modern operating systems, so no additional drivers required. Compatible with Windows XP through 10, macOS, and Linux / Unix. Supports 12TB+ drives on 64-bit operating systems (32-bit Windows supports drives up to 2TB max). Connects to USB-C and Thunderbolt 3 ports with the provided USB-C cable, as well as legacy USB 2.0 and USB 3.0 hosts with the provided USB 3.0 cable. Supports all 2.5" and 3.5" SATA hard drives, solid state drives, and hybrid drives up to any volume size available on the market today (currently 12TB+). IDE/EIDE/PATA, SCSI, SAS, mSATA, and M.2 drives are not compatible.
In the box
USB-C to SATA Dock, 1m/3ft USB-C to USB-C Cable, 1m/3ft USB-A to USB-C Cable, AC 12V3A Power Adapter 100-240V 50/60Hz, Quick Start Guide
More from the Manufacturer

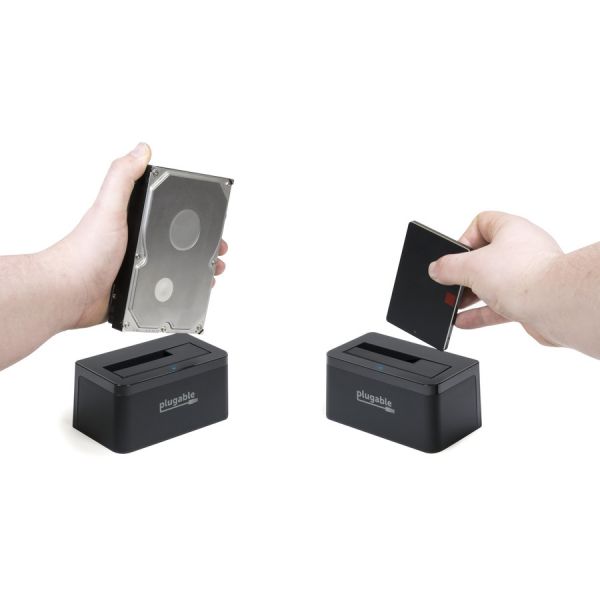

- Supports 2.5""/3.5"" SATA drives
- USB-C 3.1 Gen 2 performance
- Upright orientation for max cooling and compact footprint
- Plug and play
- Hot-Swappable
- Universal USB compatibility
- Convenience redefined with plug-and-play hard drive docking station that delivers instant access to the hard drive without requiring a reboot
- No need to learn how to install internally, it can be mounted externally
Product Specifications
-
Brand NamePlugable
-
Country of OriginChina
-
Drive InterfaceSATA
-
Form FactorExternal
-
Host InterfaceUSB 3.1 (Gen 2) Type C
-
Input Voltage120 V AC 230 V AC
-
Limited Warranty1 Year
-
Manufacturer Part NumberUSBC-SATA-V
-
Maximum Power Supply Wattage36 W
-
Number of 2.5"/3.5" Bays1
-
Number of Hard Drives Installed0
-
Number of Hard Drives Supported1
-
Number of Solid State Drive Installed0
-
Number of Solid State Drive Supported1
-
Number of Total Expansion Bays1
-
Package Contents1 x 3ft USB-C male to USB-C Male USB Cable 1 x 3ft USB-C male to USB-A Male USB Cable 1 x 36W 12V/3A AC Power Adapter 1 x Quick Start Guide USB 3.1 Gen 2 10Gbps SATA Upright Hard Drive Dock and SSD Dock
-
Platform SupportedLinux Mac PC
-
Power SourceAC Adapter
-
Product ModelUSBC-SATA-V
-
Product NameUSB 3.1 Gen 2 10Gbps SATA Upright Hard Drive Dock and SSD Dock
-
Product TypeDrive Dock
-
Total Hard Drive Capacity Supported8 TB
-
Total Solid State Drive Capacity Supported8 TB
