Atdec Wall Mount for Display Screen
Product Number: ETLZ1071755541
$51.39
Loading...
Loading...
Product Description

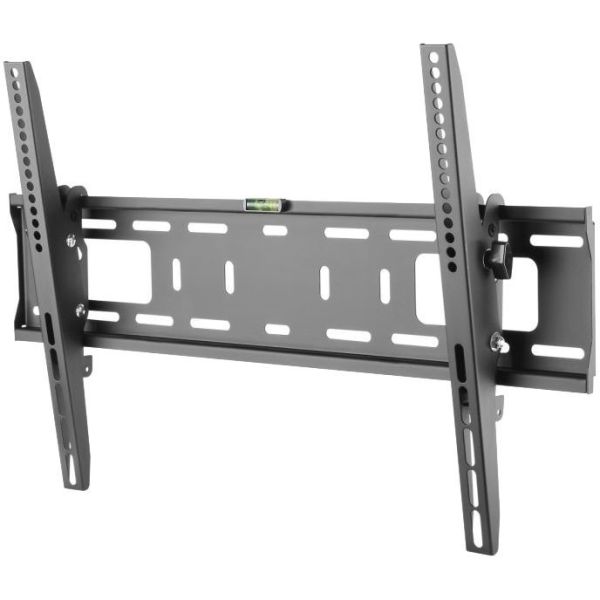

Atdec Wall Mount for Display Screen
110.23 lb Load Capacity - 600 x 400, 100 x 100, 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 600 x 200, 600 x 400 - VESA Mount Compatible
Description:
Mount for tilted displays with space for devices at rear. Brackets for 24" stud spacing. Displays to 110lbs (50kg), VESA to 600x400.
AD-WT-5060 suits applications that require a tilted display, space behind the display for device/s, and fixture to stud walls with 24" stud spacing.
This wall mount is designed for displays to 50kg (110lbs) and universal VESA patterns to 600x400.
The AD-WT-5060 mounts displays tilted -10° to +5° to the wall, with 56mm (2.2") space at rear in which devices may be concealed. Its versatility and construction makes AD-WF-5060 suitable for commercial, domestic, and most light industrial environments.
AD-WT-5060 suits most types of walls (with appropriate hardware) and demonstrates Adtec's easy installation ethos, with an integrated spirit level and slotted mounting holes. The brackets allow minor lateral adjustment to position the display precisely as desired.
Consider AD-WT-5040 for narrower stud spacing.
Choose me for:
Stud walls with 24" spacing
Tilted display capability
Space behind display
Robust functionality & long service life
Easy, safe & tidy installation
Superseding Atdec's TH-3060-UT
AD-WT-5060 suits applications that require a tilted display, space behind the display for device/s, and fixture to stud walls with 24" stud spacing.
This wall mount is designed for displays to 50kg (110lbs) and universal VESA patterns to 600x400.
The AD-WT-5060 mounts displays tilted -10° to +5° to the wall, with 56mm (2.2") space at rear in which devices may be concealed. Its versatility and construction makes AD-WF-5060 suitable for commercial, domestic, and most light industrial environments.
AD-WT-5060 suits most types of walls (with appropriate hardware) and demonstrates Adtec's easy installation ethos, with an integrated spirit level and slotted mounting holes. The brackets allow minor lateral adjustment to position the display precisely as desired.
Consider AD-WT-5040 for narrower stud spacing.
Choose me for:
Stud walls with 24" spacing
Tilted display capability
Space behind display
Robust functionality & long service life
Easy, safe & tidy installation
Superseding Atdec's TH-3060-UT

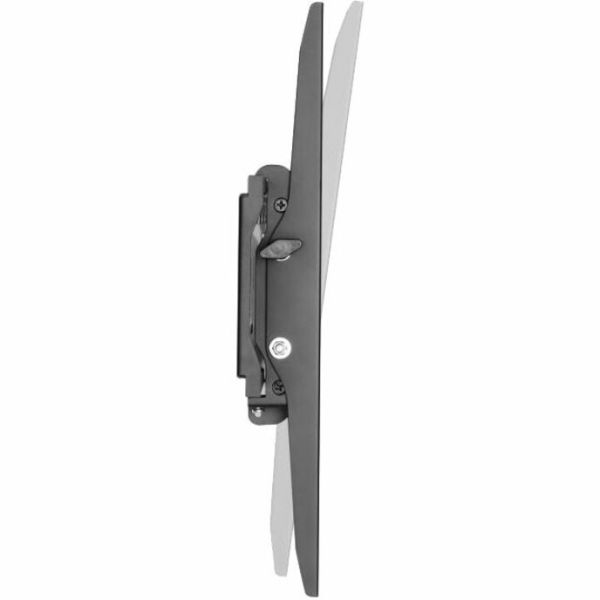

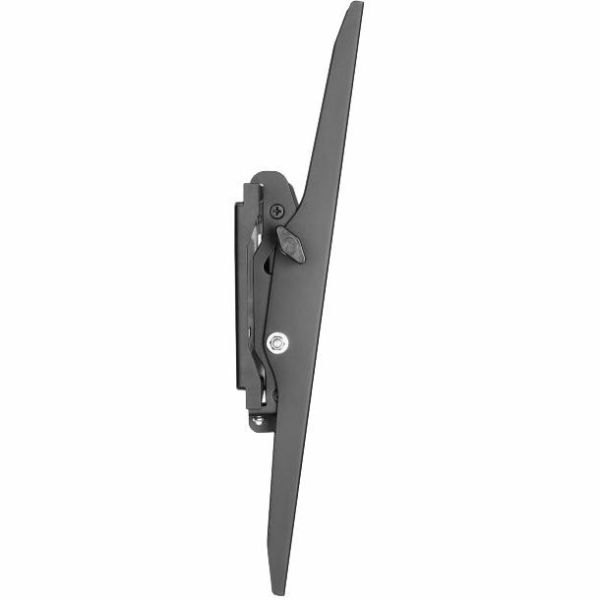

- Provides for optimum viewing with tool-free forwards and backwards tilt angle adjustment

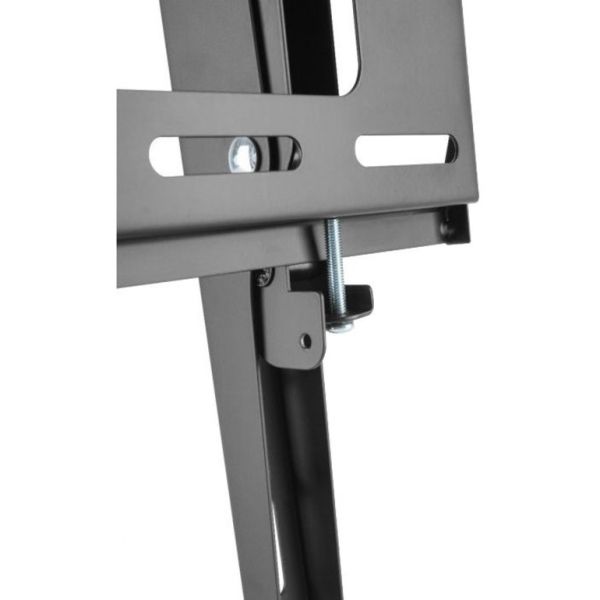

- Designed for precise display positioning with provision to adjust display alignment horizontally on wall plate
- Designed for easy installation with supplied spirit level and slotted mounting holes for alignment
- Suitable for installation on most types of wall construction when paired with appropriate hardware (wall mounting hardware not included)
- Supplied with display mounting hardware and installation guide
- Makes it quick, convenient, and simple to adjust and reposition connectors in a modular mounting system
- Sustains a maximum load capacity of 110.23 lb
- Built with steel product material to offer usage dependabilty and durability, ensuring prolonged use
- Lateral Adjustment feature for maximum productivity with added dependability
- Wall application/usage for maximum productivity with convenience and optimal results
Product Specifications
-
Application/UsageCommercial Domestic Industrial Wall
-
Brand NameAtdec
-
Device SupportedDisplay Screen
-
Features-10° Tilt 5° Tilt Adjustable Angle Horizontal Adjustment Lateral Adjustment Robust Spirit Level Tilt
-
Limited Warranty10 Year
-
Manufacturer Part NumberAD-WT-5060
-
Maximum Load Capacity110.23 lb
-
Mount PatternUniversal
-
Mounting Pattern100 x 100 200 x 100 200 x 200 300 x 200 300 x 300 400 x 200 400 x 300 400 x 400 600 x 200 600 x 400
-
Package ContentsTilt Wall Mount 5060 Display Mounting Hardware Installation Guide
-
Product MaterialSteel
-
Product NameTilt Wall Mount 5060
-
Product TypeWall Mount
-
VESA Mount CompatibleYes
