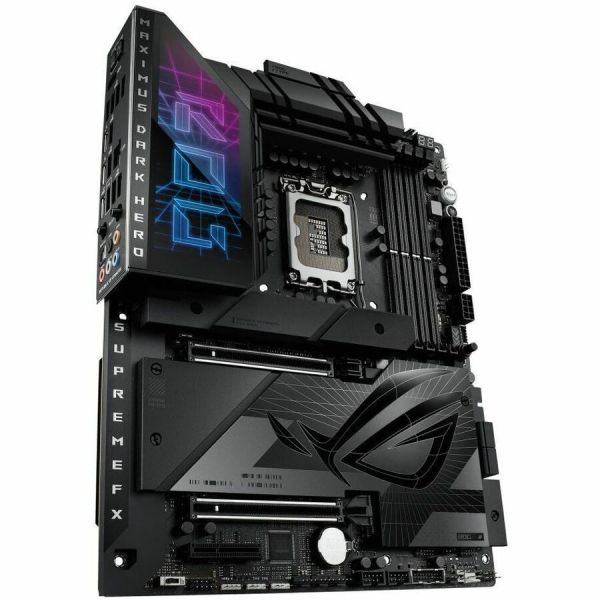

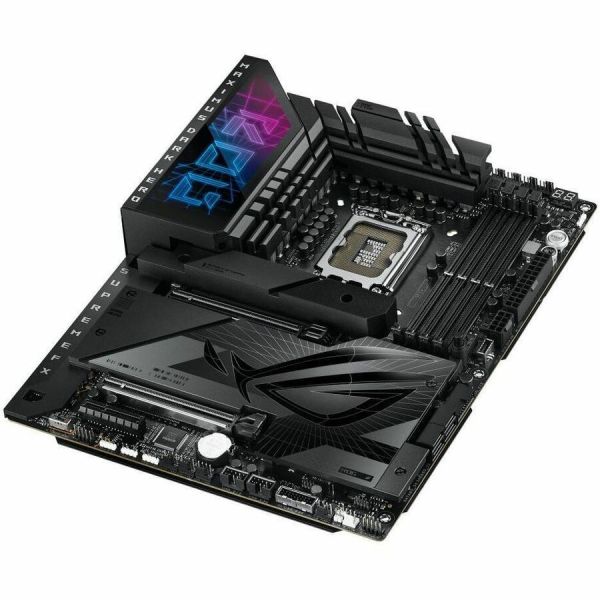

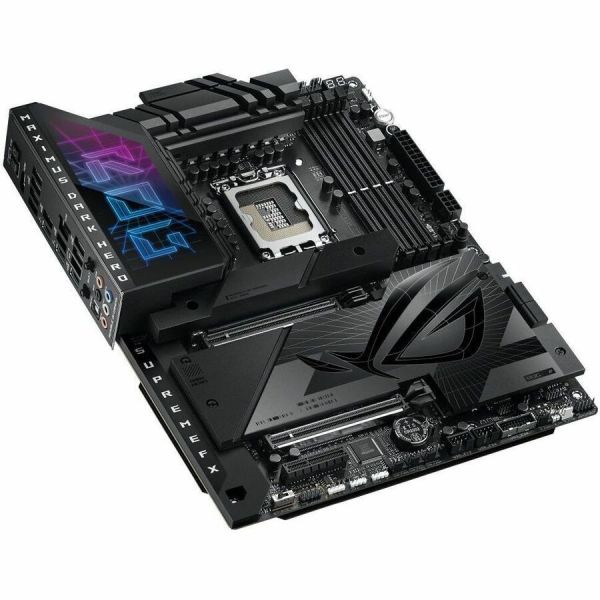

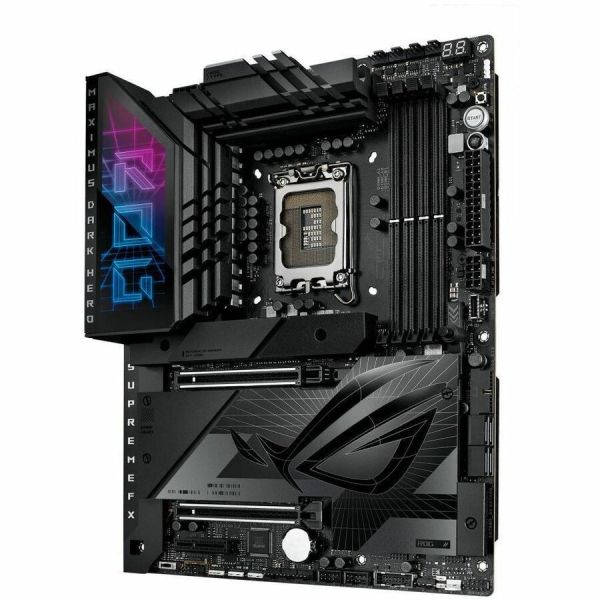

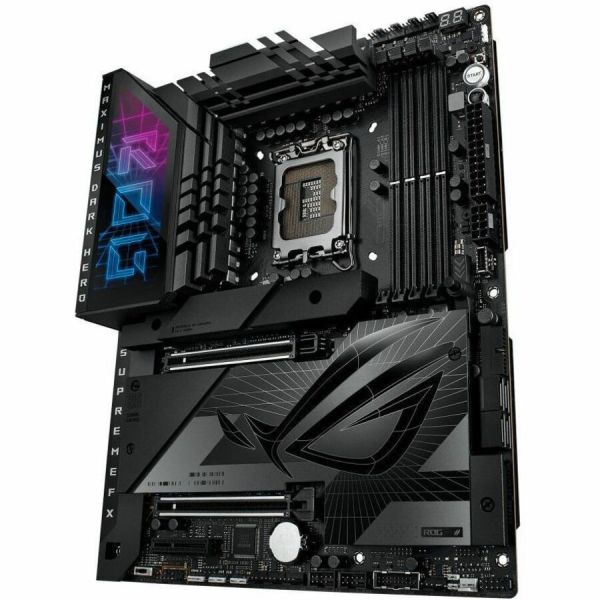

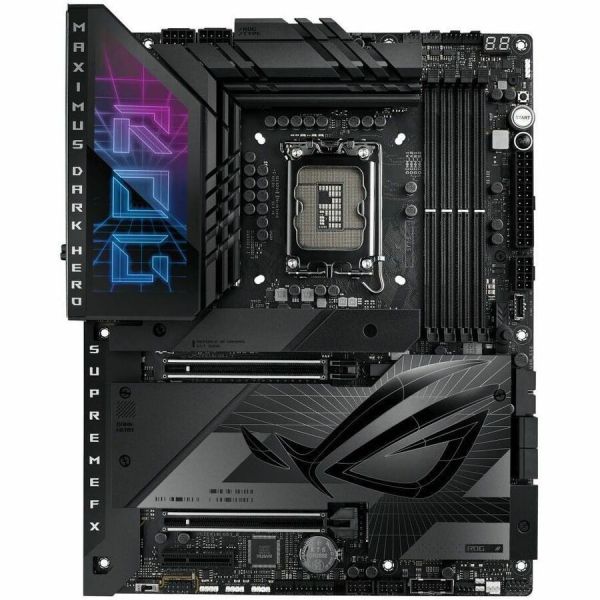

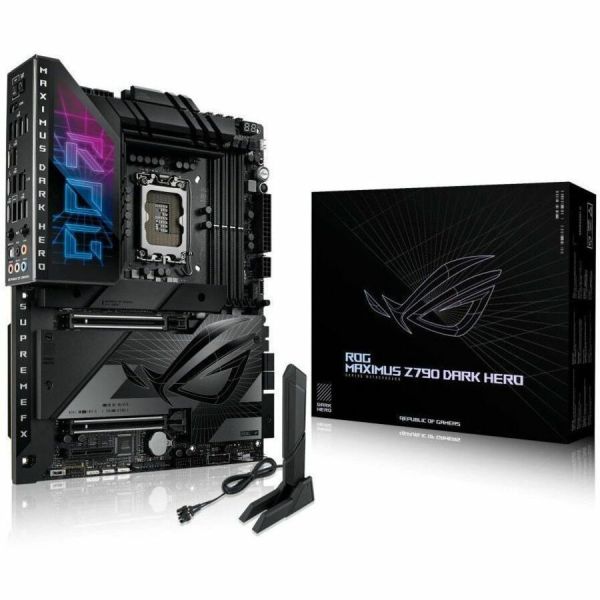

Asus ROG Maximus Z790 Dark Hero Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX
Loading...
$613.58
Loading...
Loading...
Product Description
Asus ROG Maximus Z790 Dark Hero Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX
Core, Celeron, Pentium Gold Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11be - HDMI - 4 x SATA Interfaces
Description:
The ROG Maximus Z790 Dark Hero boasts robust cooling, WiFi 7 and ample PCIe 5.0 slot for unmatched performance, and it offers full compatibility with 14thGen IntelCore processors. Meanwhile, its stealthy design is accentuated by new Polymo lighting, which illuminates the I/O shroud with a microstructural array of dual-layer RGB and adds a personalized touch of style to your gaming setup.ROG OVERCLOCKING TECHNOLOGIESPsyche up and engage the Dark Hero overclocker in you, with onboard intelligence to scan, predict, and adapt CPU performance parameters, and tools to command and track system vitals.
MEMORY
ROG OVERCLOCKING TECHNOLOGIESPsyche up and engage the Dark Hero overclocker in you, with onboard intelligence to scan, predict, and adapt CPU performance parameters, and tools to command and track system vitals.
AI OVERCLOCKING
DIFFERENTIAL SENSING
AI OVERCLOCKINGTuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
WIFI 7Next-gen WiFi 7* chipset introduces all-new ultrawide 320 MHz channel bandwidth in the 6 GHz band and 4096 QAM, delivering up to 2.4X ultra-fast WiFi speeds**. The revolutionary Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
Learn more aboutMulti-link Operation (MLO) and WiFi 7 technology.
*WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. The 320 Mhz in the 6 GHz band may be unavailable in some regions / countries due to regulatory restrictions. Expected support for Multi-Link Operation (MLO) will be available later this year (October 2023). Please visit the ASUS support page for more information.
**Compared to WiFi 6E
2.5Gb ETHERNETLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel2.5 Gbps Ethernet. PCIESLOT Q-RELEASE
A physical button unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
MEMORY
ROG OVERCLOCKING TECHNOLOGIESPsyche up and engage the Dark Hero overclocker in you, with onboard intelligence to scan, predict, and adapt CPU performance parameters, and tools to command and track system vitals.
AI OVERCLOCKING
DIFFERENTIAL SENSING
AI OVERCLOCKINGTuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
WIFI 7Next-gen WiFi 7* chipset introduces all-new ultrawide 320 MHz channel bandwidth in the 6 GHz band and 4096 QAM, delivering up to 2.4X ultra-fast WiFi speeds**. The revolutionary Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
Learn more aboutMulti-link Operation (MLO) and WiFi 7 technology.
*WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. The 320 Mhz in the 6 GHz band may be unavailable in some regions / countries due to regulatory restrictions. Expected support for Multi-Link Operation (MLO) will be available later this year (October 2023). Please visit the ASUS support page for more information.
**Compared to WiFi 6E
2.5Gb ETHERNETLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel2.5 Gbps Ethernet. PCIESLOT Q-RELEASE
A physical button unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- DDR5 SDRAM slot for convenient installation of memory
- Supported 1 RAID levels provide data reliability and fault tolerance
- Wireless LAN support lets you connect to the internet and have instant access to social media, music, movies and online games
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- Thunderbolt host interface lets you move data between your devices and your computer with unprecedented speed
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
Product Specifications
-
Audio Channels7.1
-
BluetoothYes
-
Bluetooth StandardBluetooth 5.4
-
Brand NameAsus ROG
-
Chipset ManufacturerIntel
-
Chipset ModelZ790
-
Controller TypeSerial ATA/600
-
Depth9.6"
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Form FactorATX
-
Gigabit EthernetYes
-
HDMIYes
-
HDMI Version2.1
-
Manufacturer Part NumberROGMAXIMUSZ790DARKHER
-
Maximum Memory Supported192 GB
-
Memory Form FactorDIMM UDIMM
-
Memory Speed Supported8000 MHz 7800 MHz 7600 MHz 7467 MHz 7200 MHz 7000 MHz 6800 MHz 6600 MHz 6400 MHz 6200 MHz 6000 MHz 5800 MHz 5600 MHz 5400 MHz 5200 MHz 5000 MHz 4800 MHz
-
Memory TechnologyDDR5 SDRAM
-
Number of M.2 Interfaces5
-
Number of Memory Slots4
-
Number of Network (RJ-45) Ports1
-
Number of Onboard USB 2.0 Ports4
-
Number of PCI Express x4 Slots1
-
Number of PCI Express x16 Slots2
-
Number of SATA Interfaces4
-
Onboard VideoCPU Dependent Video
-
PCI Express StandardPCI Express 5.0 PCI Express 4.0
-

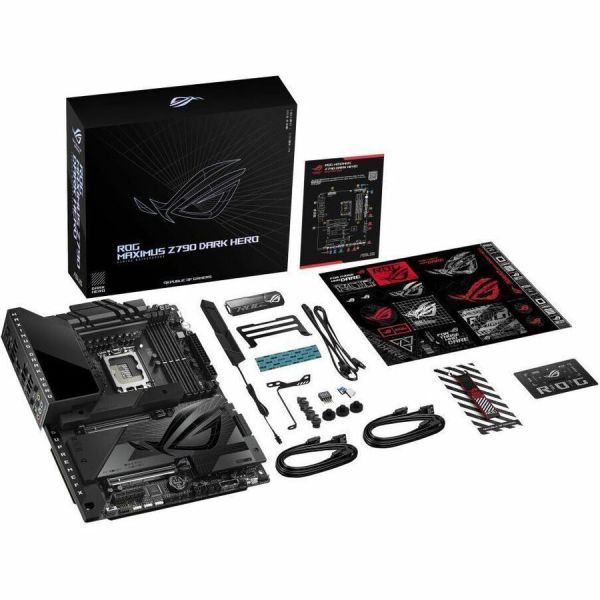

Package ContentsMAXIMUS Z790 DARK HERO Gaming Desktop Motherboard 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables 1 x Thermal pad for M.2 1 x DDR5 fan holder 1 x ASUS WiFi Q-Antenna 3 x M.2 backplate Q-Latch packages 3 x M.2 backplate Rubber Packages 1 x Q-connector 1 x ROG stickers 1 x ROG key chain 1 x M.2 rubber package 1 x ROG VIP card 1 x USB drive with utilities and drivers 1 x Quick start guide
-
Processor SocketSocket LGA-1700
-
Processor SupportedCore Celeron Pentium Gold
-
Product LineMaximus Z790 Dark Hero
-
Product NameMAXIMUS Z790 DARK HERO Gaming Desktop Motherboard
-
Product TypeGaming Desktop Motherboard
-
RAID Levels1 5 10 0
-
RAID SupportedYes
-
S/PDIFYes
-
ThunderboltYes
-
Total Number of Expansion Slots3.0
-
Total Number of Onboard USB Ports9
-
Total Number of PCI Express Slots3
-
Total Number of USB Ports12
-
Total Processor Supported1
-
Width12"
-
Wireless LANYes
-
Wireless LAN StandardIEEE 802.11be
