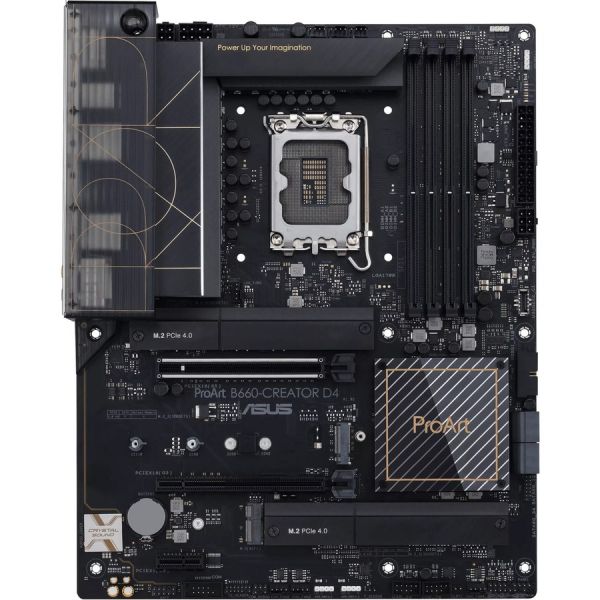

Asus ProArt B660-CREATOR D4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX
Product Number: IGRM01NB01
$243.68
Loading...
Loading...

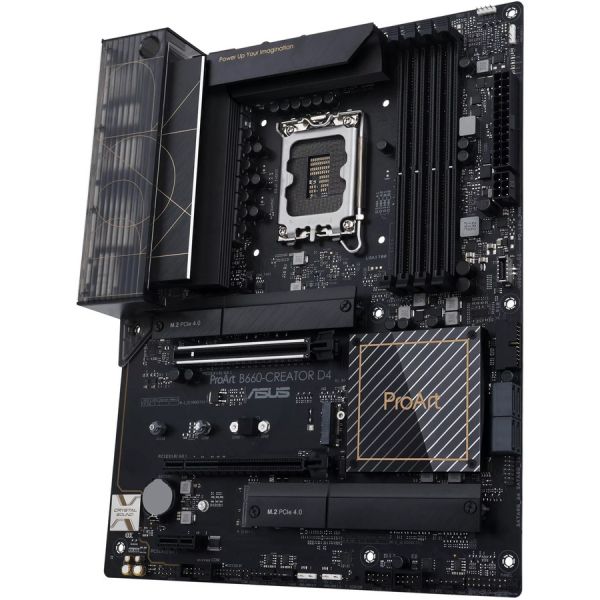

Asus ProArt B660-CREATOR D4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX
Pentium Gold, Celeron, Core i5, Core i9, Core i3, Core i7 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
Description:
Intel B660 LGA 1700 ATX motherboard built for creators, with PCIe 5.0, DDR4, 2.5 Gb and 1 Gb Ethernet, three PCIe 4.0 M.2 slots, plus USB-C DisplayPort and a USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+

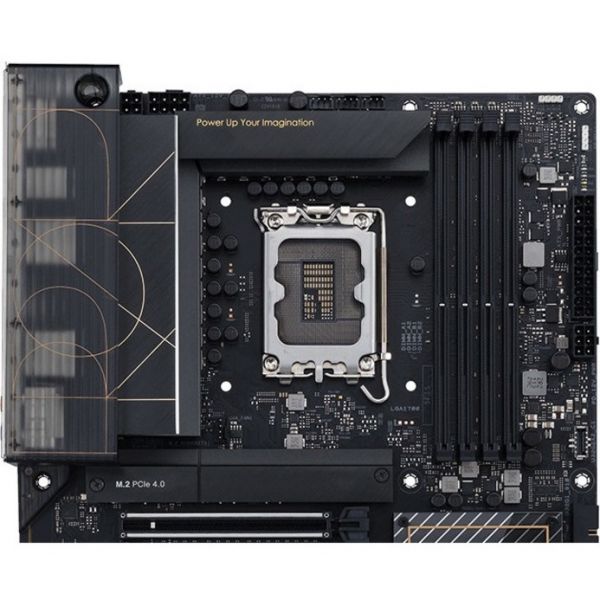

Socket LGA 1700 for 12th Gen Intel Core, Pentium Gold and Celeron processors

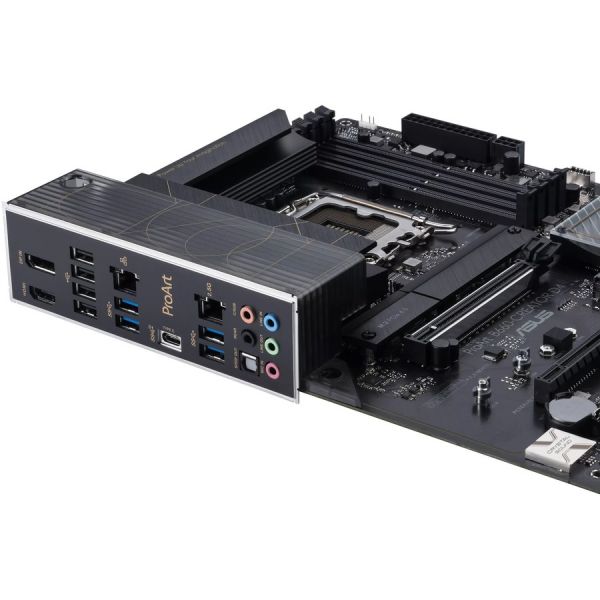

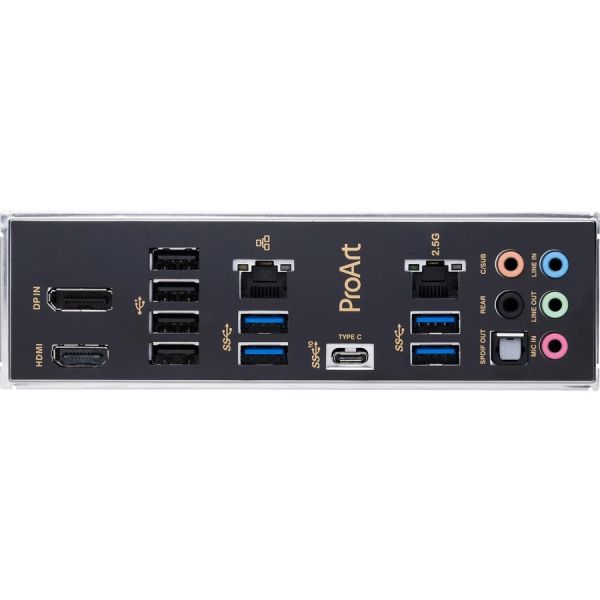

Comprehensive connectivity: 2.5 Gb & 1 Gb onboard Ethernet, three M.2 slots, ThunderboltTM header support, USB-C DisplayPortTM and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+
Next-gen performance: 12+1 power stages rated for 50 amps, PCIe 5.0 ready

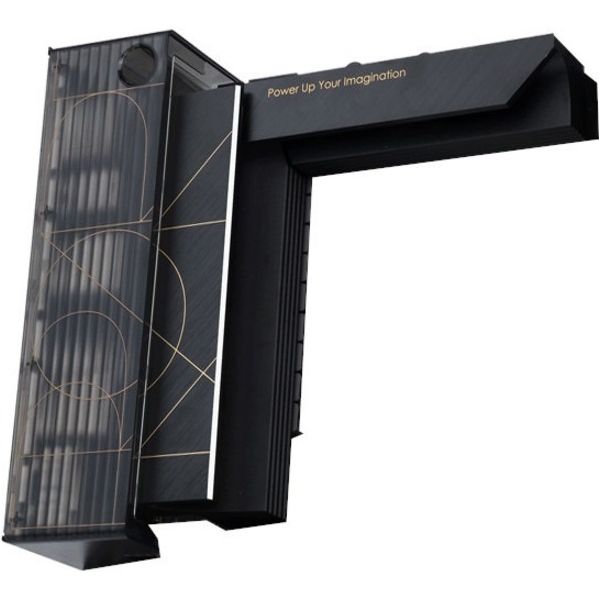

Optimized thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, six 4-pin PWM fan headers and an AIO pump header
ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
Advanced security management: USB port restriction, software blacklisting and Windows Registry protection via ASUS Control Center Express
Your Powerhouse for Creativity
ProArt B660-Creator D4 is an enhanced motherboard designed for intensive content-creation workloads like 3D rendering and 4K/8K video editing. It unleashes the performance of 12th Gen Intel Core processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C front-panel connector with Quick Charge 4+, and DisplayPort via USB-C.
Comprehensive Connectivity
An array of powerful I/O ports - including 2.5 Gb and 1 Gb Ethernet ports and three M.2 slots - enables quick data transfers and extensive storage options.

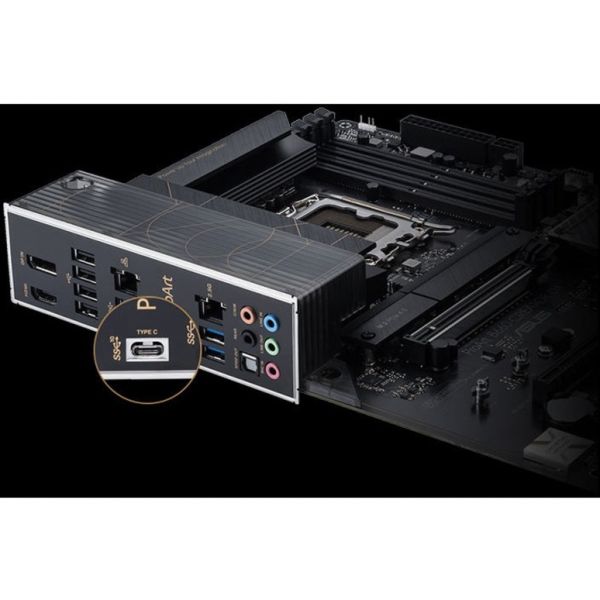

USB-C DisplayPort (DP Alt Mode)
This USB Type-C port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display.

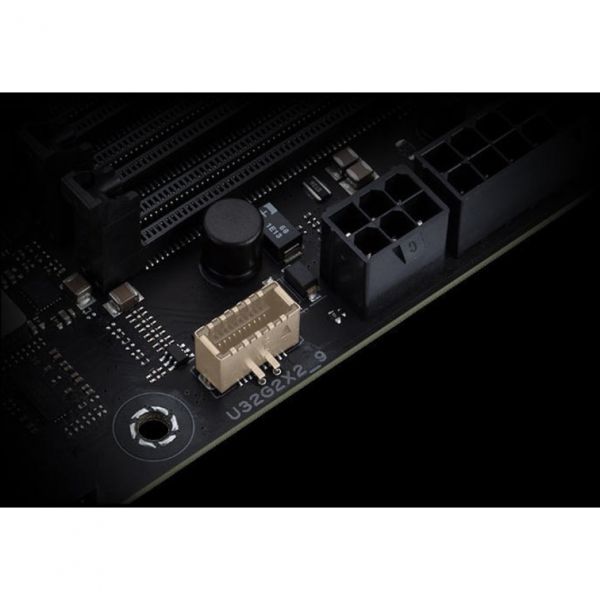

USB 3.2 Gen 2x2 Type-C Front-Panel Connector with Quick Charge 4+
A USB 3.2 Gen 2x2 connector boosts Type-C data transfers with speeds of up to 20 Gbps. The connector also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.
Next-Gen Performance
With tailored CPU power delivery and support for high-performance memory, ProArt B660-Creator D4 easily handles the demands of the latest 12th Gen Intel Core processors. It features an intelligent VRM design that's rated for 50 amps, plus carefully selected components and memory layout optimizations for multithreaded tasks such as 3D animation and video editing.
Teamed power stages
12+1 power stages rated for 50 amps combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest 12th Gen Intel Core processors demand.
Digi+ Power Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
ProCool power connector
The ASUS ProCool socket is built to exacting specifications to ensure flush contact with PSU power lines, enabling lower impedance and better heat dissipation.
Chokes & capacitors
Premium alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
Socket LGA 1700 for 12th Gen Intel Core, Pentium Gold and Celeron processors
Comprehensive connectivity: 2.5 Gb & 1 Gb onboard Ethernet, three M.2 slots, ThunderboltTM header support, USB-C DisplayPortTM and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+
Next-gen performance: 12+1 power stages rated for 50 amps, PCIe 5.0 ready
Optimized thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, six 4-pin PWM fan headers and an AIO pump header
ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
Advanced security management: USB port restriction, software blacklisting and Windows Registry protection via ASUS Control Center Express
Your Powerhouse for Creativity
ProArt B660-Creator D4 is an enhanced motherboard designed for intensive content-creation workloads like 3D rendering and 4K/8K video editing. It unleashes the performance of 12th Gen Intel Core processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C front-panel connector with Quick Charge 4+, and DisplayPort via USB-C.
Comprehensive Connectivity
An array of powerful I/O ports - including 2.5 Gb and 1 Gb Ethernet ports and three M.2 slots - enables quick data transfers and extensive storage options.
USB-C DisplayPort (DP Alt Mode)
This USB Type-C port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display.
USB 3.2 Gen 2x2 Type-C Front-Panel Connector with Quick Charge 4+
A USB 3.2 Gen 2x2 connector boosts Type-C data transfers with speeds of up to 20 Gbps. The connector also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.
Next-Gen Performance
With tailored CPU power delivery and support for high-performance memory, ProArt B660-Creator D4 easily handles the demands of the latest 12th Gen Intel Core processors. It features an intelligent VRM design that's rated for 50 amps, plus carefully selected components and memory layout optimizations for multithreaded tasks such as 3D animation and video editing.
Teamed power stages
12+1 power stages rated for 50 amps combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest 12th Gen Intel Core processors demand.
Digi+ Power Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
ProCool power connector
The ASUS ProCool socket is built to exacting specifications to ensure flush contact with PSU power lines, enabling lower impedance and better heat dissipation.
Chokes & capacitors
Premium alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
- Pentium Gold processors supported for enhanced, dependable system performance with maximum usability
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
- With 4 USB 2.0 ports, connect devices for a quick data movement
Related Articles
Need more information?
Ask a Question
-
2.5Gigabit EthernetYes
-
Audio Channels7.1
-
Brand NameAsus
-
Chipset ManufacturerIntel
-
Chipset ModelB660
-
Controller TypeSerial ATA/600
-
Depth9.6"
-
DisplayPortYes
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Form FactorATX
-
Gigabit EthernetYes
-
HDMIYes
-
Intel Optane Memory ReadyYes
-
Intel RSTYes
-
Limited Warranty3 Year
-
Manufacturer Part NumberPROART B660-CREATOR D4
-
Maximum Memory Supported128 GB
-
Memory Form FactorDIMM UDIMM
-
Memory TechnologyDDR4 SDRAM
-
Number of Memory Slots4
-
Number of Network (RJ-45) Ports2
-
Number of Onboard USB 2.0 Ports4
-
Number of Onboard USB 3.2 Ports3
-
Number of PCI Express x1 Slots1
-
Number of PCI Express x16 Slots2
-
Number of SATA Interfaces4
-
Number of USB 2.0 Ports4
-
Number of USB 3.2 Gen 1 Ports4
-
Number of USB 3.2 Ports1
-
Onboard VideoCPU Dependent Video
-

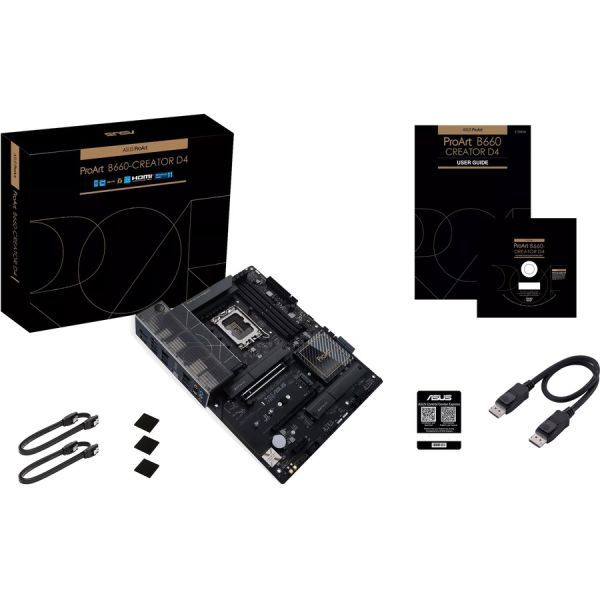

Package ContentsProArt B660-CREATOR D4 Desktop Motherboard 1 x DisplayPort cable 2 x SATA 6Gb/s cables 3 x M.2 Rubber Packages 1 x Q-connector 1 x Support DVD 1 x ACC Express Activation Key Card 1 x User Guide
-
Processor Generation Supported12th Gen
-
Processor SocketSocket LGA-1700
-
Processor SupportedCeleron Core i3 Core i5 Core i7 Core i9 Pentium Gold
-
Product LineProArt
-
Product ModelB660-CREATOR D4
-
Product NameProArt B660-CREATOR D4 Desktop Motherboard
-
Product TypeDesktop Motherboard
-
RAID Levels0 1 10 5
-
RAID SupportedYes
-
S/PDIFYes
-
Total Number of Expansion Slots3.0
-
Total Number of Onboard USB Ports7
-
Total Number of PCI Express Slots3
-
Total Number of USB Ports9
-
Total Processor Supported1
-
Width12"
