Targus DOCK430USZ Docking Station
Loading...
$114.84
Loading...
Loading...
Product Description
Targus DOCK430USZ Docking Station
for Notebook/Tablet PC/Desktop PC/Smartphone/Monitor - USB Type C - 3 Displays Supported - 4K, Full HD - 3840 x 2160, 2560 x 1440, 1920 x 1080 - 5 x USB Ports - 4 x USB Type-A Ports - USB Type-A - 1.0 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - DisplayPort - 0 x Mini DisplayPort - Gray - Wired - Gigabit Ethernet - Windows, ChromeOS, macOS - 85W
Description:
Create a more powerful, productive workstation with the Targus USB-C DisplayPort Alt. Mode Docking Station with 85W Power. Sleek and powerful this Alternate Mode hosts packs all of the ports and power you need in one dock. Designed to support a wide variety of laptop brands and operating systems, DOCK430 offers broad compatibility for a range of hosts, devices and peripherals.
Enjoy crisp, clear native video while supporting a connection up to three monitors. With two DisplayPort 1.4 ports and one HDMI 2.0 port, you're able to support three monitors (1920x1080 p60), two monitors (2560x1440 p60) or one monitor (3840x2160 p60) and various lower resolutions. Plus connect all your favorite accessories with a combination of USB-A (4 USB 3.2 Gen1 ports, 1 fast-charging) and USB-C (1x 3.2 Gen2), plus Ethernet and audio ports.
Designed for the modern workstation, the dock comes equipped with a VESA bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings.
Supports Two DisplayPort and One HDMI Monitor
Access the latest display technology with two DisplayPort and HDMI ports that creates a rich, high-definition viewing experience. The USB-C DisplayPort Alt. Mode Docking Station with 85W Power supports full UHD (3840x2160 p60) resolution in single display and resolutions of up to 2560x1440 p60 in dual video mode - and even 1920x1080 p60 with three monitors.
Enhanced Power Delivery
The USB-C DisplayPort Alt. Mode Docking Station provides up to 85W of USB Type-C Power Delivery at all popular voltages including 5, 9, 12, 15, and 20Vdc. DOCK430 will negotiate a Type-C Power Delivery contract with multiple platforms including PC, MacBook, Chromebook, and even popular Android phones.
Onboard USB 3.0 for Advanced Peripherals and Charging
Multiple onboard USB ports make it easy to customize workspaces with the latest keyboards, external drives, and other essential peripherals. Efficient charging is close at hand with one powered USB 3.2 Gen1 port for keeping smartphone, tablet, or other devices powered up and ready to go.
What's in the Box
User Guide (part #410-3897-001A)
Dock
Cable, Input US AC cable cord set , 3pins, 1.8M, C5 connector (part #511-0518-001A)
USB C/M (screwed) to C/M (normal) Cable, Black; 1M, 5A, 10Gbps (part #ACC1121GLX)
Adapter, AC to DC, output: 20V, 6.75A, 135W (part #800-0485-001A)
More from the Manufacturer
Enjoy crisp, clear native video while supporting a connection up to three monitors. With two DisplayPort 1.4 ports and one HDMI 2.0 port, you're able to support three monitors (1920x1080 p60), two monitors (2560x1440 p60) or one monitor (3840x2160 p60) and various lower resolutions. Plus connect all your favorite accessories with a combination of USB-A (4 USB 3.2 Gen1 ports, 1 fast-charging) and USB-C (1x 3.2 Gen2), plus Ethernet and audio ports.
Designed for the modern workstation, the dock comes equipped with a VESA bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings.
Supports Two DisplayPort and One HDMI Monitor
Access the latest display technology with two DisplayPort and HDMI ports that creates a rich, high-definition viewing experience. The USB-C DisplayPort Alt. Mode Docking Station with 85W Power supports full UHD (3840x2160 p60) resolution in single display and resolutions of up to 2560x1440 p60 in dual video mode - and even 1920x1080 p60 with three monitors.
Enhanced Power Delivery
The USB-C DisplayPort Alt. Mode Docking Station provides up to 85W of USB Type-C Power Delivery at all popular voltages including 5, 9, 12, 15, and 20Vdc. DOCK430 will negotiate a Type-C Power Delivery contract with multiple platforms including PC, MacBook, Chromebook, and even popular Android phones.
Onboard USB 3.0 for Advanced Peripherals and Charging
Multiple onboard USB ports make it easy to customize workspaces with the latest keyboards, external drives, and other essential peripherals. Efficient charging is close at hand with one powered USB 3.2 Gen1 port for keeping smartphone, tablet, or other devices powered up and ready to go.
What's in the Box
User Guide (part #410-3897-001A)
Dock
Cable, Input US AC cable cord set , 3pins, 1.8M, C5 connector (part #511-0518-001A)
USB C/M (screwed) to C/M (normal) Cable, Black; 1M, 5A, 10Gbps (part #ACC1121GLX)
Adapter, AC to DC, output: 20V, 6.75A, 135W (part #800-0485-001A)
More from the Manufacturer

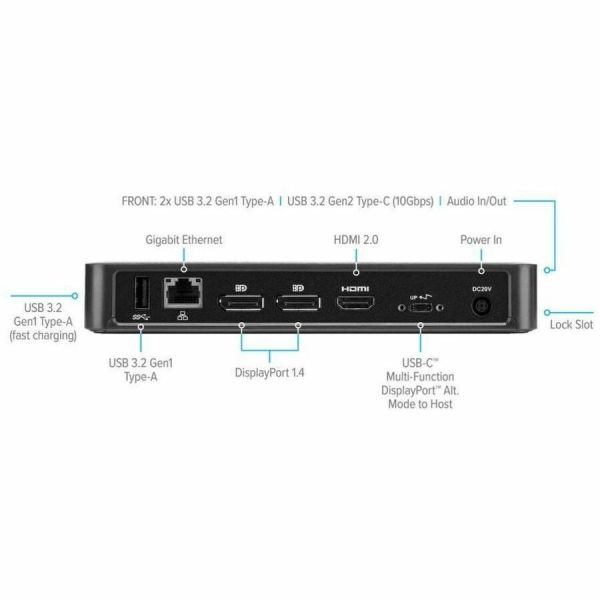

- Supports single 4K, dual 2K, or triple HD video via two DisplayPort 1.4 and one HDMI 2.0 monitor ports
- 5, 9, 12, 15, 20 VDC Power Delivery up to 85W
- 1 USB-C 3.2 Gen2 port (10Gbps)
- 1 USB 3.2 Gen1 Type-A fast-charging port
- 3 USB 3.2 Gen1 Type-A ports
- 1 Gigabit Ethernet port
- 1 3.5mm combo Audio In/Out port for mics, speakers, and earphones

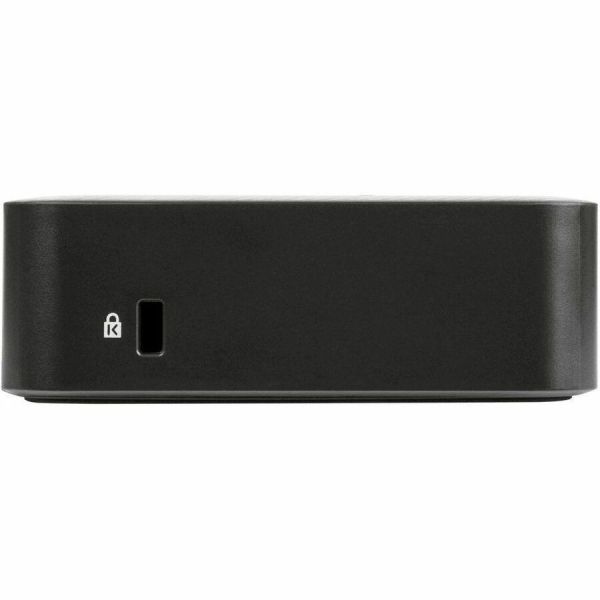

- Integrated lock slot accommodates standard security locks to safeguard equipment
- Compatible with Targus VESA Mounting Bracket (ACX003GLZ, sold separately)
- Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
- USB Type C host interface Offers a more refined structure and safer to use connectivity
- Notebook/Tablet PC/Desktop PC/Smartphone/Monitor device supported according to your requirements with maximum productivity
- Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
- HDMI effectively and conveniently transmits both audio and video signals with one single cable to ensure hassle-free connectivity
- 5 USB ports offers a more refined structure and safer to use connectivity
Guides & Information
Related Articles
- Human Resources Supplies Buying Guide
- PC Gaming Buying Guide
- Smart Technology for Home & Office
- Shop Our New Arrivals
Need more information?
Ask a Question
Product Specifications
-
Brand NameTargus
-
Connectivity TechnologyWired
-
Country of OriginTaiwan
-
Device SupportedNotebook/Tablet PC/Desktop PC/Smartphone/Monitor
-
DisplayPortYes
-
DisplayPort Version1.4
-
Ethernet TechnologyGigabit Ethernet
-
HDMIYes
-
HDMI Version2.0
-
Height1.10"
-
Host InterfaceUSB Type C
-
Kensington Security SlotYes
-
Length7.1"
-
Limited Warranty3 Year
-
Manufacturer Part NumberDOCK430USZ
-
Network (RJ-45)Yes
-
Number of DisplayPort Outputs2
-
Number of Displays Supported3
-
Number of HDMI Outputs1
-
Number of Mini DisplayPort0
-
Number of RJ-45 Ports1
-
Number of USB 3.2 Gen 1 Type-A Ports2
-
Number of USB Type-A Ports4
-
Operating System SupportedmacOS Windows ChromeOS
-
Package ContentsDOCK430USZ Docking Station User Guide Cable, Input US AC Cable Cord Set , 3pins, 1.8M, C5 Connector USB C/M (screwed) to C/M (normal) Cable, Black; 1M, 5A, 10Gbps Adapter, AC to DC, Output: 20V, 6.75A, 135W
-
Product ModelDOCK430USZ
-
Product NameDOCK430USZ Docking Station
-
Product TypeDocking Station
-
Screen Mode Supported4K Full HD
-
Supported Resolutions1920 x 1080 2560 x 1440 3840 x 2160
-
TAA CompliantNo
-
Total Number of USB Ports5
-
USB Type-AYes
-
Width3.25"
