StarTech.com USB C Dock, Triple 4K Monitor USB-C Docking Station with DP 1.4 & DSC, 2x DisplayPort & 1x HDMI, 100W PD, 6x USB (2x 10Gbps)
Product Number: SYNX6242218
$161.20
Loading...
Loading...
Product Description
StarTech.com USB C Dock, Triple 4K Monitor USB-C Docking Station with DP 1.4 & DSC, 2x DisplayPort & 1x HDMI, 100W PD, 6x USB (2x 10Gbps)
USB-C docking station 10Gbps - Dual or Triple Monitor MST USB C Dock 4K 60Hz (2x DisplayPort and 1x HDMI) DP 1.4 Alt-Mode w/ DSC/HBR3 - 100W Power Delivery, SD slot, Ethernet - Windows-based laptops - 2xA 5Gbps, 2xA (USB 2.0), 2xC 10Gbps - Driverless
Description:
This USB-C Gen 2 10Gbps docking station turns your USB-C or Thunderbolt 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.

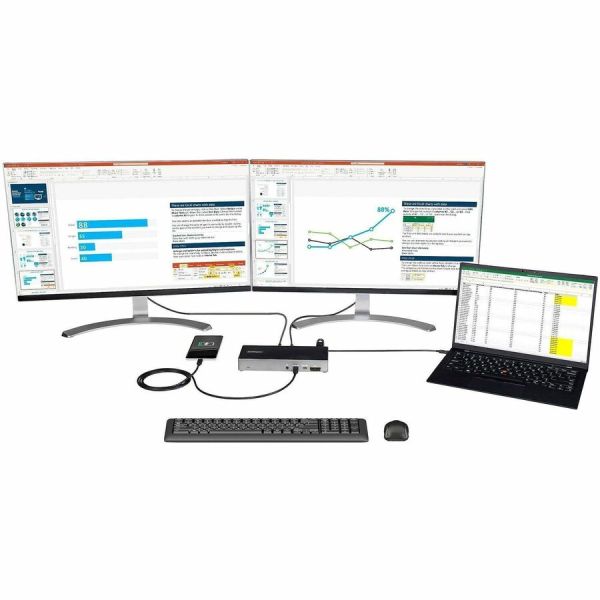

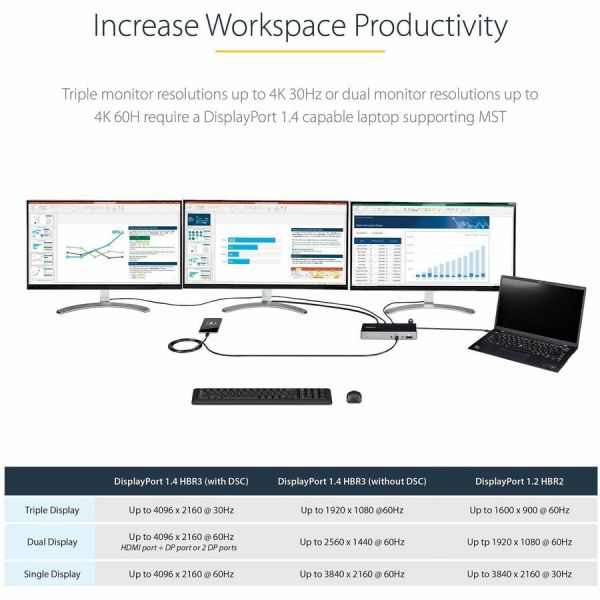

HDMI & DisplayPort for Multiple Monitor Outputs
This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements. DP 1.4 HBR3 with DSC Enabled DP 1.4 HBR3 (without DSC) DP 1.2 HBR2
Triple Display Up to 4096 x 2160 @ 30Hz Up to 1920 x 1080 @ 60Hz Up to 1600 x 900 @ 60Hz Dual Display
Up to 4096 x 2160 @ 60Hz* *HDMI port + DP port or 2 DP ports Up to 2560 x 1440 @ 60Hz Up to 1920 x 1080 @ 60Hz Single Display Up to 4096 x 2160 @ 60Hz Up to 3840 x 2160 @ 60Hz Up to 3840 x 2160 @ 30Hz
Power & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.
Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Integrated 6-Port USB Hub & SD Card Reader
This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD (4.0) card reader for media storage.
2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Aways-On)
2x USB-A 3.2 Gen 1 - 5 Gbps
2x USB-A 2.0 - 480 Mbps
SD 4.0 Card Reader
Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.

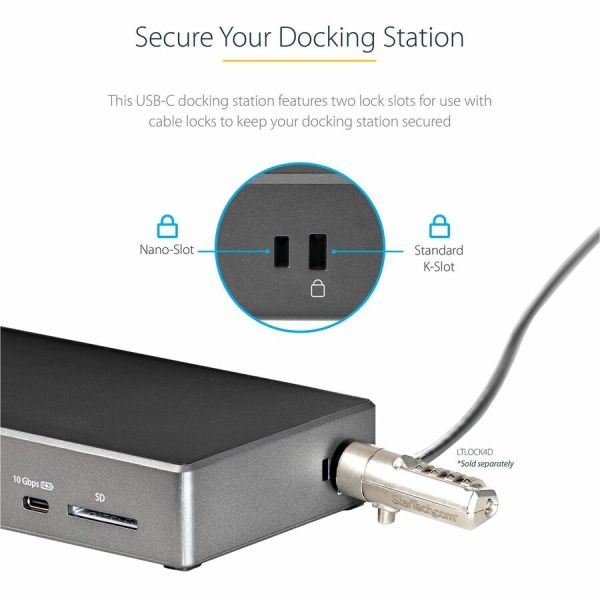

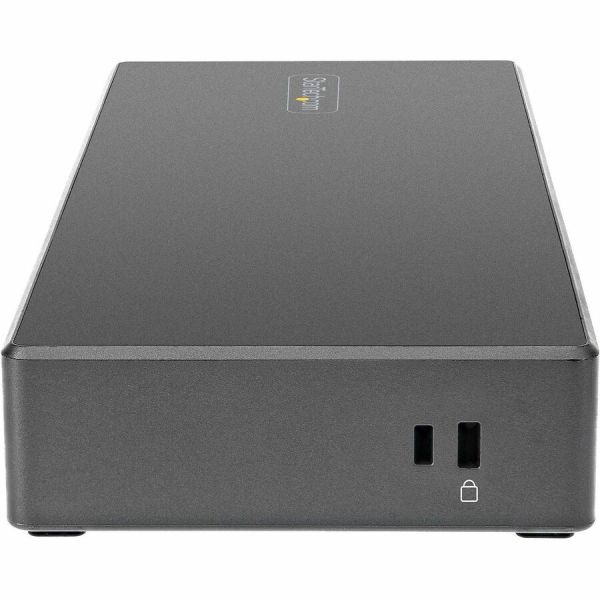

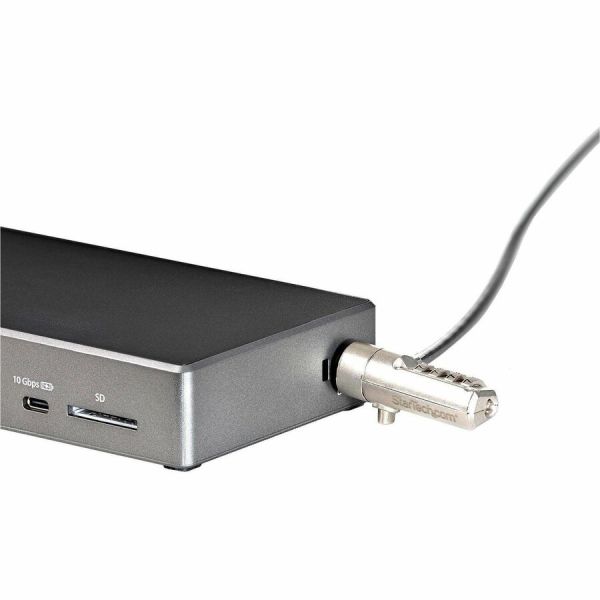

Additional Security Features
This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
Advanced Windows Layout Utility: To setup and save custom windows layouts.
Mac Address Pass-Through Utility: To improve network security.
USB Event Monitoring Utility: To track and log connected USB devices
Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
More from the Manufacturer
HDMI & DisplayPort for Multiple Monitor Outputs
This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements. DP 1.4 HBR3 with DSC Enabled DP 1.4 HBR3 (without DSC) DP 1.2 HBR2
Triple Display Up to 4096 x 2160 @ 30Hz Up to 1920 x 1080 @ 60Hz Up to 1600 x 900 @ 60Hz Dual Display
Up to 4096 x 2160 @ 60Hz* *HDMI port + DP port or 2 DP ports Up to 2560 x 1440 @ 60Hz Up to 1920 x 1080 @ 60Hz Single Display Up to 4096 x 2160 @ 60Hz Up to 3840 x 2160 @ 60Hz Up to 3840 x 2160 @ 30Hz
Power & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.
Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Integrated 6-Port USB Hub & SD Card Reader
This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD (4.0) card reader for media storage.
2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Aways-On)
2x USB-A 3.2 Gen 1 - 5 Gbps
2x USB-A 2.0 - 480 Mbps
SD 4.0 Card Reader
Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.
Additional Security Features
This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
Advanced Windows Layout Utility: To setup and save custom windows layouts.
Mac Address Pass-Through Utility: To improve network security.
USB Event Monitoring Utility: To track and log connected USB devices
Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
More from the Manufacturer
- HIGH PERFORMANCE USB-C DOCK: USB-C docking station for Windows/Chrome OS, featuring up to three 4K video outputs (2x DisplayPort 1.4 & 1x HDMI 2.0), 100W PD, 6 port USB Hub (10Gbps), SD 4.0 Card Reader, Gigabit Ethernet, and headset port
- DISPLAYPORT 1.4 WITH DSC: Triple monitor USB-C docking station (MST) supports dual 4K 60Hz or triple 4K 30Hz on DP 1.4 Alt-Mode HBR3 w/ DSC enabled laptop - works with DP 1.2 supporting dual monitor 1080p @ 60Hz (see image gallery)
- 100W POWER DELIVERY CHARGING: Power & charge Windows-based USB-C/Thunderbolt 3 workstation laptops, Chromebooks, ultrabooks including Lenovo X1 Carbon, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, and ZBook
- 6-PORT USB HUB: 2x 10Gbps USB-C (USB 3.2/3.1 Gen 2), both BC 1.2 fast charge always-on ports), 2x USB 3.0 5Gbps, and 2x USB 2.0; a variety of USB ports to connect many peripherals incl. two 10Gbps high speed USB-C ports for external drives
- DEPLOYMENT READY: Universal multi monitor USB Type-C docking station with no driver setup, features 2x security lock k-slots, On/Off button, 3.3ft (1m) USB-C host cable; Windows/Chrome OS support
- CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities
- Wired connectivity technology is highly feasible, offers maximum usability
- USB 3.1 Type C host interface allows powerful and efficient transfer of data with maximum productivity
- Notebook/Tablet/Workstation/Monitor device supported according to your requirements with maximum productivity
- Lets you conveniently connect to the gigabit ethernet Ethernet technology to offer maximum productivity
- Enjoy HD quality videos on your HDTV with the HDMI port facility
- 6 USB ports offers a more refined structure and safer to use connectivity
- Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
- USB 3.1 Type C host interface allows quick transmission of data at a higher rate for your convenience
- Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
- 6 USB ports allows powerful and efficient transfer of data with maximum productivity
Guides & Information
Related Articles
- Human Resources Supplies Buying Guide
- PC Gaming Buying Guide
- Smart Technology for Home & Office
- Shop Our New Arrivals
Need more information?
Ask a Question
Product Specifications
-
Brand NameStarTech.com
-
CompatibilityCompatible Notebook/Tablet PC: Lenovo X1 Carbon Lenovo ThinkPad P Series Dell Latitudes Series Dell Precision Series Dell XPS 15 HP Spectre HP ZBook Google Chromebook
-
Connectivity TechnologyWired
-
Country of OriginThailand
-
Device SupportedNotebook/Tablet/Workstation/Monitor
-
DisplayPortYes
-
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
-
Environmentally FriendlyYes
-
Ethernet TechnologyGigabit Ethernet
-
HDMIYes
-
Height1.20"
-
Host InterfaceUSB 3.1 Type C
-
Kensington Security SlotYes
-
Limited Warranty3 Year
-
Manufacturer Part NumberDK31C2DHSPD
-
Maximum Power Supply Wattage100 W
-
Memory Card ReaderYes
-
Memory Card SupportedSD
-
Network (RJ-45)Yes
-
Number of DisplayPorts2
-
Number of Displays Supported3
-
Number of HDMI Ports1
-
Number of USB 3.1 Gen 1 Type-A Ports2
-
Number of USB 3.1 Type-C Ports1
-
Number of USB Type-A Ports4
-
Number of USB Type-C Ports2
-

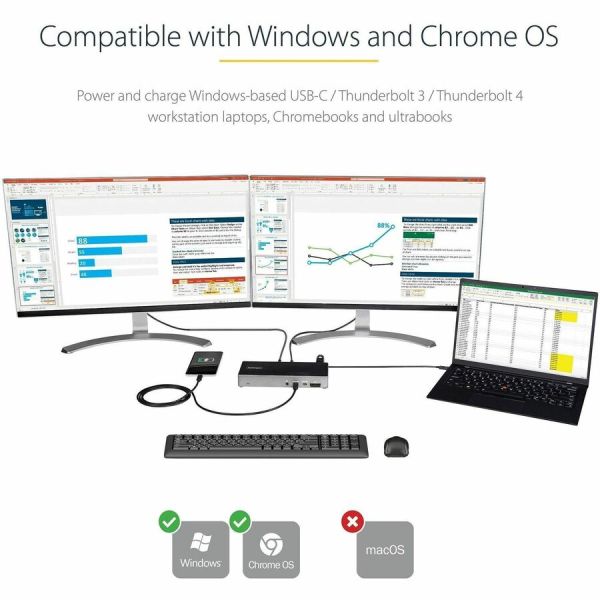

Operating System SupportedWindows 10 Windows 11 Windows 8.1 ChromeOS 78.x
-

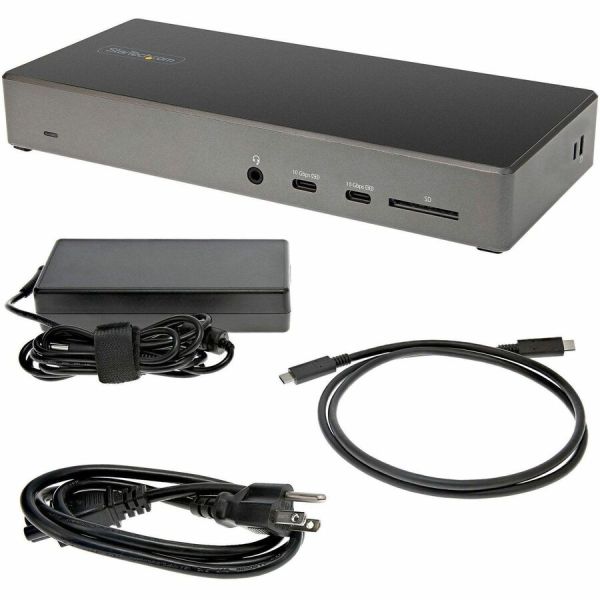

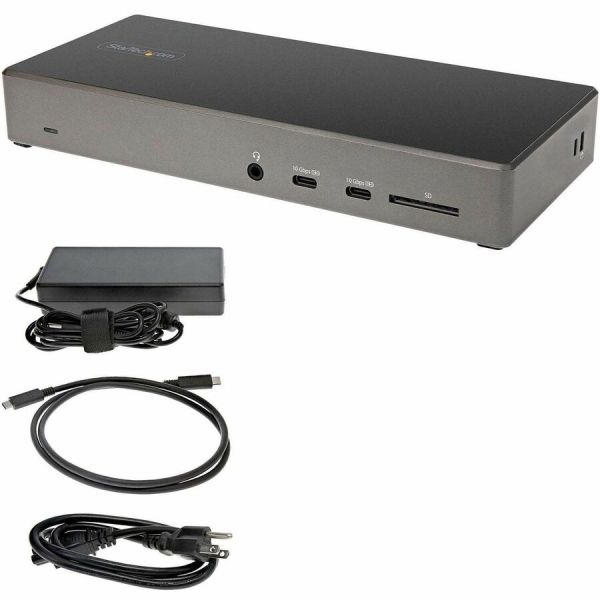

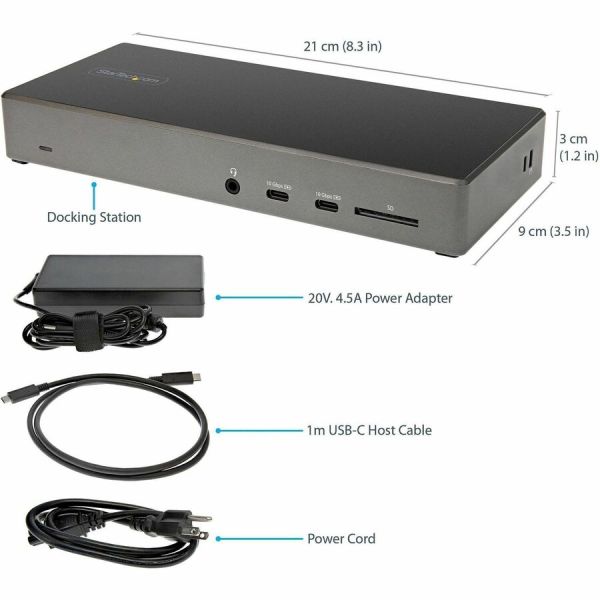

Package ContentsDocking Station AC Adapter 1 x USB-C Cable (1 m) Quick-Start Guide 2 x Power Cable NA/JP & ANZ
-
Product ColorBlack Space Gray
-
Product NameDocking Station
-
Product TypeDocking Station
-
Screen Mode Supported4K
-
Supported Resolutions1600 x 900 1920 x 1080 2560 x 1440 3840 x 2160 4096 x 2160
-
Total Number of USB Ports6
-
USB Type-AYes
-
Width3.50"
