SIIG Dual Host USB-C KVM MST Docking Station
Product Number: ETLZ1073944523
$201.16
Loading...
Loading...
Product Description
SIIG Dual Host USB-C KVM MST Docking Station
USB C Docking Station, Allows you to connect two laptops of Windows, Mac or Chromebook to up to dual 4K Displays with DisplayPort and HDMI, Dual Host, Dual 4K@60Hz, two USB-C 5Gbps, one USB-A 5Gbps with 5V/1.5A, two USB-A 5Gbps, one Gigabit Ethernet, one 3.5mm Headset (Audio/MIC) port, and USB PD charging up to 65 watts to computers
Description:
USB-C Docking Station, allows you to connect two laptops of Windows, Mac, or Chromebook to up to dual displays with DisplayPort and HDMI, dual Host, two USB-C 5Gbps, one USB-A 5Gbps with 5V/1.5A, two USB-A 5Gbps, one Gigabit Ethernet, one 3.5mm Headset (Audio/MIC) port. Power Delivery charging up to 65W from the power adapter and 100W via USB-C PD pass through to two Laptop system
Features
Create a dual displays (DisplayPort/HDMI) workstation with one set of keyboard & mouse and MST technology, 100W PD, and multiple connections via 2 computers with USB-C input ports and DP 1.4 Alt mode to increase your work productivity
Video Resolution
Supports one single display via 4K (3840x2160) @60Hz with DP 1.4 alt mode Ultra HD video resolution or dual displays via one 4K (3840x2160) @30Hz+one 1080p (2160x1080) @60Hz with DP 1.4 alt mode video resolution and 5.1-ch. surround sound
Effortlessly Switch
Easily control/switch between two computers via the top power/switch button or 3.5mm switch cable
Security Lock
Keep your laptop safe and secure with a security lock when you work in a public place

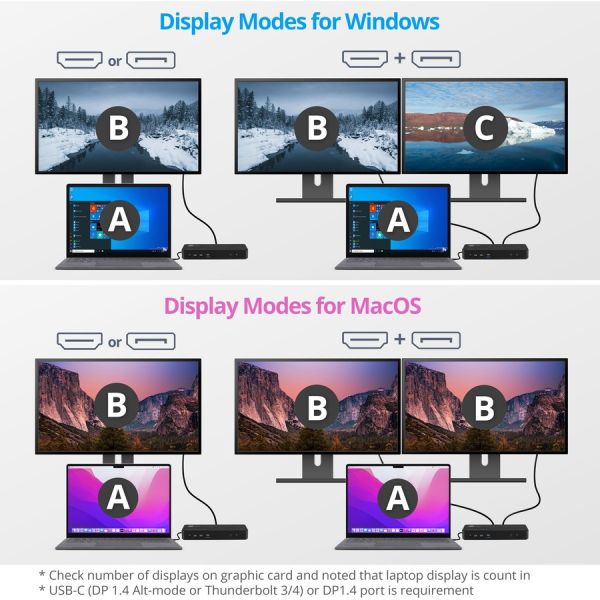

3 Display Modes
Allows the use of Multi Stream Transport (MST) technology for multi-monitor displays, such as Mirror mode, Extended mode, and Primary mode to HDTV or projector for perfect visual displays

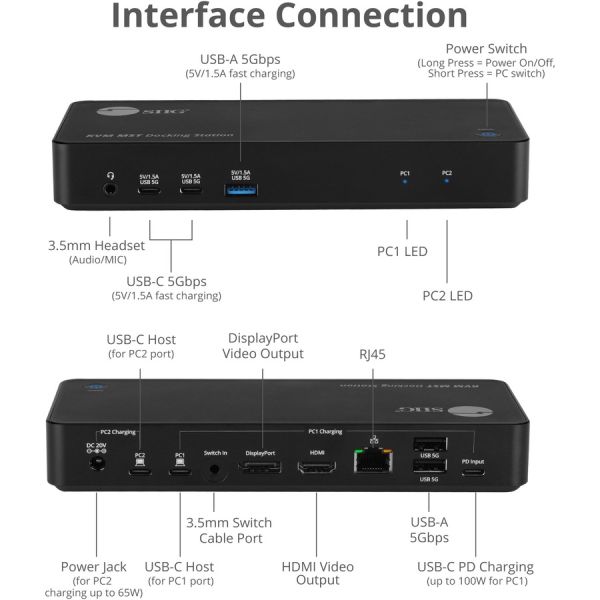

Multiple Connectivity Ports
Adds two USB-C input ports with DP 1.4 Alt mode (Host), one DisplayPort video output port with MST technology, one HDMI video output port with MST technology, two USB-C 3.2 Gen 1 with 5V/1.5A charging ports (5Gbps), one USB-A 3.2 Gen 1 with 5V/1.5A charging port (5Gbps), two USB-A 3.2 Gen 1 ports (5Gpbs), one Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone), one Kensington lock, one 3.5mm switch input port (for switch cable), one USB-C PD 100W (for PC1 charging only), one DC 20V/6A power jack (for PC2 charging only), and one power/switch button
USB-C/USB-A 3.2 Data Transfer
Provides two USB-C 3.2 Gen 1 with 5V/1.5A charging ports (5Gbps), two USB-A 3.2 Gen 1 ports (5Gbps), and one USB-A 3.2 Gen 1 with 5V/1.5A charging port (5Gbps) to enhance the performance and transfer capability of USB devices

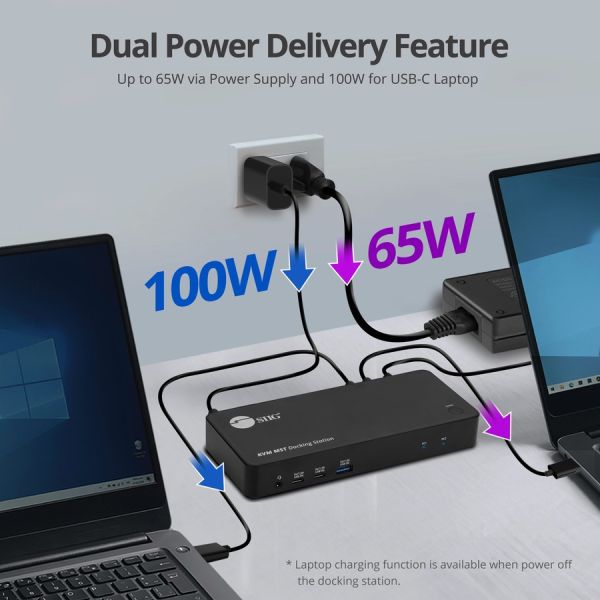

Power Delivery
USB-C PD pass-through for charging PC 1 laptops, laptops, tablets, or smartphones with up to 100W, connectivity includes two USB-C 3.2 Gen 1 to USB-C cables
The included 120W power adapter ensures enough power for PC2 laptop charging (65W) and USB peripherals
1G Ethernet Data Transmission
Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
Features
Create a dual displays (DisplayPort/HDMI) workstation with one set of keyboard & mouse and MST technology, 100W PD, and multiple connections via 2 computers with USB-C input ports and DP 1.4 Alt mode to increase your work productivity
Video Resolution
Supports one single display via 4K (3840x2160) @60Hz with DP 1.4 alt mode Ultra HD video resolution or dual displays via one 4K (3840x2160) @30Hz+one 1080p (2160x1080) @60Hz with DP 1.4 alt mode video resolution and 5.1-ch. surround sound
Effortlessly Switch
Easily control/switch between two computers via the top power/switch button or 3.5mm switch cable
Security Lock
Keep your laptop safe and secure with a security lock when you work in a public place
3 Display Modes
Allows the use of Multi Stream Transport (MST) technology for multi-monitor displays, such as Mirror mode, Extended mode, and Primary mode to HDTV or projector for perfect visual displays
Multiple Connectivity Ports
Adds two USB-C input ports with DP 1.4 Alt mode (Host), one DisplayPort video output port with MST technology, one HDMI video output port with MST technology, two USB-C 3.2 Gen 1 with 5V/1.5A charging ports (5Gbps), one USB-A 3.2 Gen 1 with 5V/1.5A charging port (5Gbps), two USB-A 3.2 Gen 1 ports (5Gpbs), one Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone), one Kensington lock, one 3.5mm switch input port (for switch cable), one USB-C PD 100W (for PC1 charging only), one DC 20V/6A power jack (for PC2 charging only), and one power/switch button
USB-C/USB-A 3.2 Data Transfer
Provides two USB-C 3.2 Gen 1 with 5V/1.5A charging ports (5Gbps), two USB-A 3.2 Gen 1 ports (5Gbps), and one USB-A 3.2 Gen 1 with 5V/1.5A charging port (5Gbps) to enhance the performance and transfer capability of USB devices
Power Delivery
USB-C PD pass-through for charging PC 1 laptops, laptops, tablets, or smartphones with up to 100W, connectivity includes two USB-C 3.2 Gen 1 to USB-C cables
The included 120W power adapter ensures enough power for PC2 laptop charging (65W) and USB peripherals
1G Ethernet Data Transmission
Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
- Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
- USB Type C host interface allows quick transmission of data at a higher rate for your convenience
- Docking Station allows you to indulge in precise sound, visual, operational coverage with maximum usage productivity and convenience for your Desktop TV/Monitor/Projector/Notebook/Tablet
- Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
- The HDMI supports digital audio/video output to a wide assortment of HD gadgets
Related Articles
- Human Resources Supplies Buying Guide
- PC Gaming Buying Guide
- Smart Technology for Home & Office
- Shop Our New Arrivals
Need more information?
Ask a Question
Product Specifications
-
Brand NameSIIG
-
Connectivity TechnologyWired
-
Country of OriginChina
-
Device SupportedTV/Monitor/Projector/Notebook/Tablet
-
DisplayPortYes
-
DisplayPort Version1.4
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 2 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
-
Environmentally FriendlyYes
-
Ethernet TechnologyGigabit Ethernet
-
HDMIYes
-

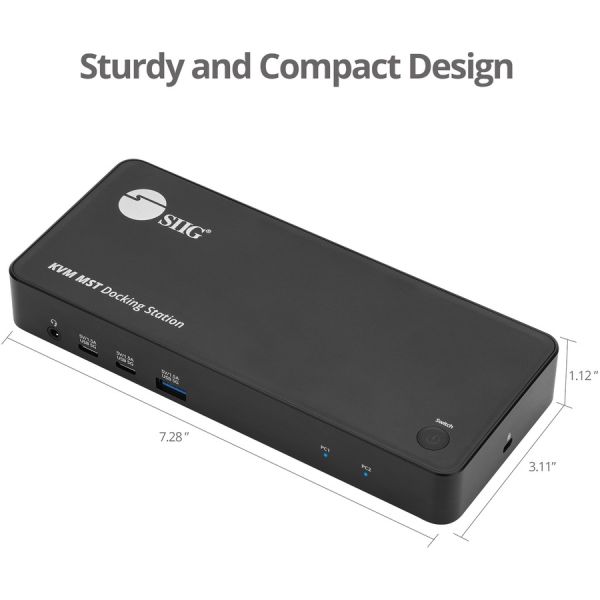

Height1.10"
-
Host InterfaceUSB Type C
-
Kensington Security SlotYes
-
Limited Warranty2 Year
-
Manufacturer Part NumberCE-DK0111-S1
-
Maximum Power Supply Wattage100 W
-
Network (RJ-45)Yes
-
Number of DisplayPorts1
-
Number of Displays Supported3
-
Number of HDMI Ports1
-
Number of USB 3.2 Gen 1 Type-A Ports3
-
Number of USB Type-C Ports5
-
Operating System SupportedmacOS Windows
-

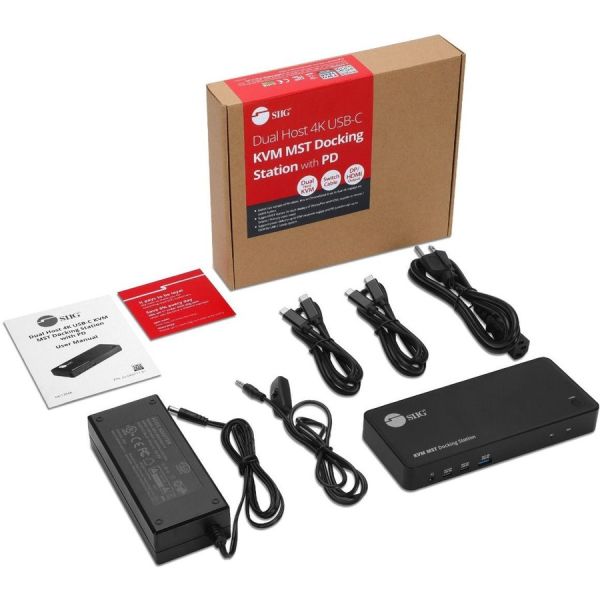

Package ContentsDual Host 4K USB-C KVM MST Docking Station with PD 2x USB-C 3.2 Gen 1 to C Cables 1x 3.5mm Switch Cable 1x Power Adapter, 20V/6A 1x User Reference Guide
-
Product ColorBlack
-
Product NameDual Host 4K USB-C KVM MST Docking Station with PD
-
Product TypeDocking Station
-
Screen Mode Supported4K
-
Supported Resolutions1920 x 1080 3840 x 2160
-
USB Type-AYes
-
Width3.11"
