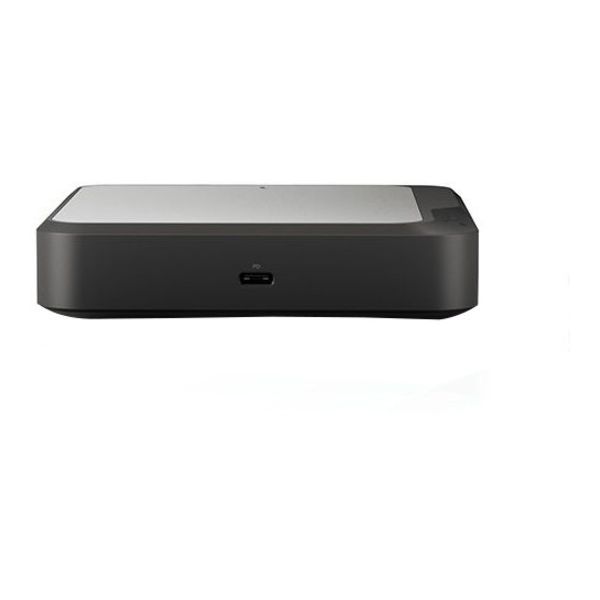

Alogic Dual 4K Universal Compact Docking Station - CH2 - HDMI Edition
Product #:
ETLZ1074456403
+9View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

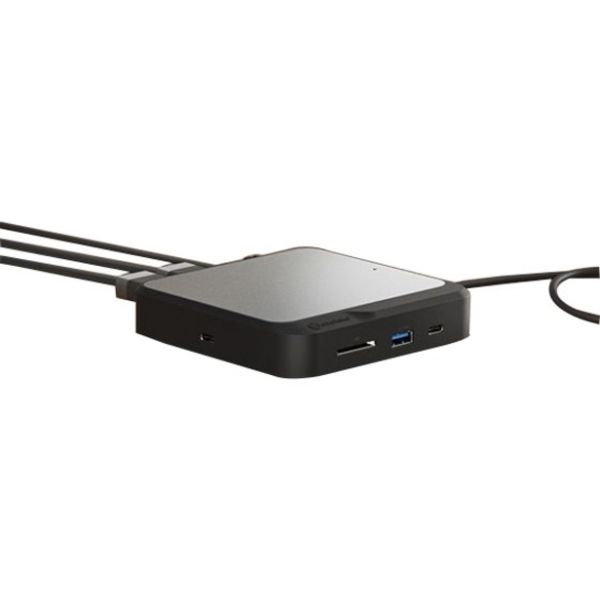

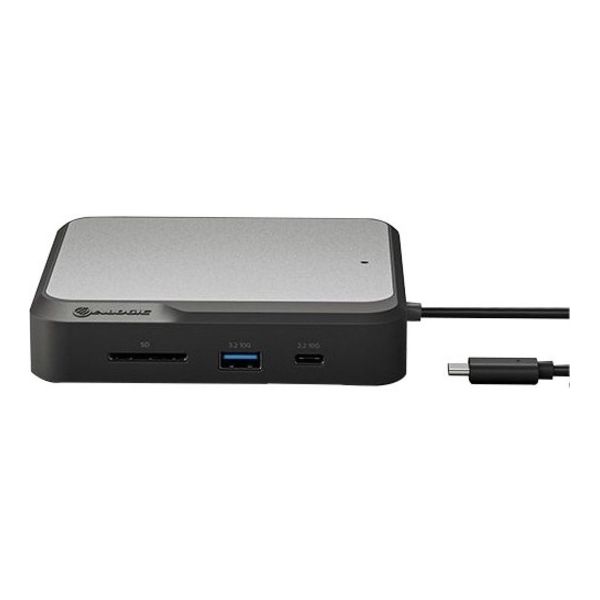

Alogic Dual 4K Universal Compact Docking Station - CH2 - HDMI Edition

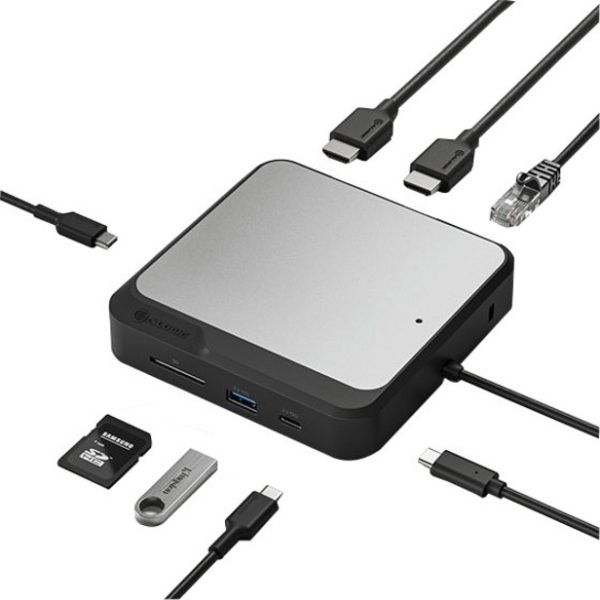

for Scanner, Keyboard, Mouse - Memory Card Reader - SD - 100 W - USB Type C - 2 Displays Supported - 4K - 3840 x 2160 - 1 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 2 x HDMI Ports - HDMI - Space Gray, Black - Wired - Gigabit Ethernet - Windows, ChromeOS, macOS - TAA Compliant

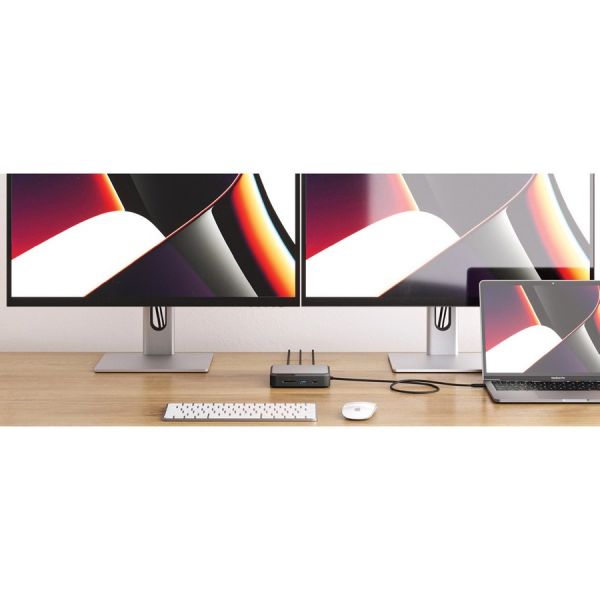

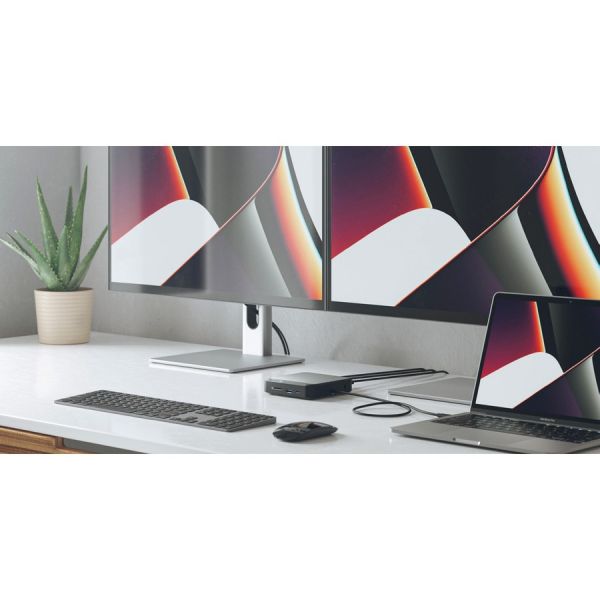

Connect up to Two 4K Displays
ALOGIC's Dual 4K Universal Compact Docking Station's twin HDMI outputs enable you to connect two external displays at resolutions up to 4K.
The dock's inbuilt DisplayLink technology ensures you experience the highest-possible screen resolutions for your computer monitor, regardless of your computer model, or whether you connect to USB-A or USB-C ports.
When you expand your screen real estate with the CH2, you have better oversight of your work. This oversight can improve your efficiency and productivity.
Comprehensive Connectivity for Your Desk
The CH2's comprehensive suite of high-performing ports supports the versatile connectivity needs of homes, schools, and businesses. The dock's USB-A [3.2 Gen 2, 10Gbps] and USB-C ports [3.2 Gen 2, 10Gbps] keep essential USB accessories such as external drives, scanners, keyboards, and mice humming.

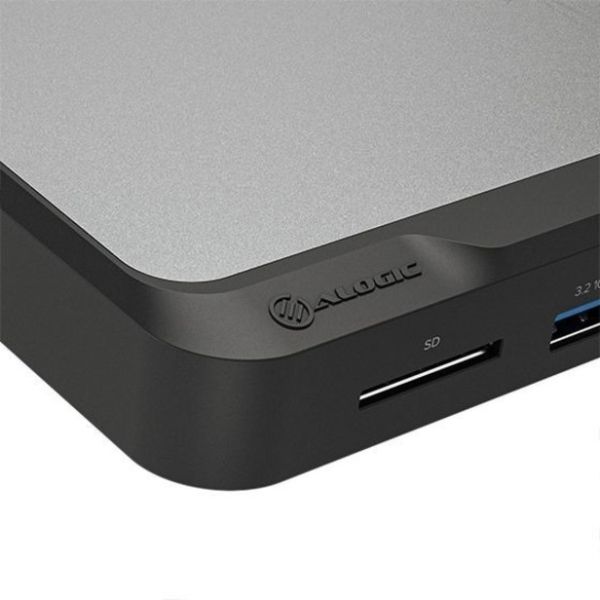

Connect your laptop to the CH2 for up to 100W pass-through charging [when the CH2 is connected to an external power adapter], and connect to the Internet with Gigabit Ethernet when security and stability are paramount. The CH2 also features an SD 4.0/UHS-II Card Reader, so you can rapidly transfer your bulky multimedia libraries to and from the dock.
Passthrough Charging While You Work
The compact CH2 is built to fast-charge your laptop with up to 100W power delivery while you run multiple displays, USB accessories, and Ethernet, all over a single USB-C cable*. All you need to do is plug your laptop in when it's time to get to work, and unplug when it's time to take your laptop on the road.
When connected to a host computer with USB-C ports that support USB Power Delivery, the CH2 will connect peripherals and charge the laptop over a single USB-C cable. USB-A enabled laptops can be charged from the dock using the ALOGIC DCAP-SPL USB-C Data + Power Splitter (available separately).
When you need your laptop for mobile work, the CH2 docks can also operate by connecting directly with your computer's USB port [without an external power supply]. However, factor in that the docks' USB-C ports are inactive in the absence of a power adapter connection, due to power constraints.
ALOGIC's Dual 4K Universal Compact Docking Station's twin HDMI outputs enable you to connect two external displays at resolutions up to 4K.
The dock's inbuilt DisplayLink technology ensures you experience the highest-possible screen resolutions for your computer monitor, regardless of your computer model, or whether you connect to USB-A or USB-C ports.
When you expand your screen real estate with the CH2, you have better oversight of your work. This oversight can improve your efficiency and productivity.
Comprehensive Connectivity for Your Desk
The CH2's comprehensive suite of high-performing ports supports the versatile connectivity needs of homes, schools, and businesses. The dock's USB-A [3.2 Gen 2, 10Gbps] and USB-C ports [3.2 Gen 2, 10Gbps] keep essential USB accessories such as external drives, scanners, keyboards, and mice humming.
Connect your laptop to the CH2 for up to 100W pass-through charging [when the CH2 is connected to an external power adapter], and connect to the Internet with Gigabit Ethernet when security and stability are paramount. The CH2 also features an SD 4.0/UHS-II Card Reader, so you can rapidly transfer your bulky multimedia libraries to and from the dock.
Passthrough Charging While You Work
The compact CH2 is built to fast-charge your laptop with up to 100W power delivery while you run multiple displays, USB accessories, and Ethernet, all over a single USB-C cable*. All you need to do is plug your laptop in when it's time to get to work, and unplug when it's time to take your laptop on the road.
When connected to a host computer with USB-C ports that support USB Power Delivery, the CH2 will connect peripherals and charge the laptop over a single USB-C cable. USB-A enabled laptops can be charged from the dock using the ALOGIC DCAP-SPL USB-C Data + Power Splitter (available separately).
When you need your laptop for mobile work, the CH2 docks can also operate by connecting directly with your computer's USB port [without an external power supply]. However, factor in that the docks' USB-C ports are inactive in the absence of a power adapter connection, due to power constraints.
- Supports two 4K displays
- Universally compatible with USB-C and USB-A laptops
- Comprehensive connectivity for key peripherals
- 100W power passthrough
- Gigabit Ethernet
- Lock slots to secure shared working environments
- Wired connectivity technology is highly feasible, offers maximum usability
- USB Type C host interface allows powerful and efficient transfer of data with maximum productivity
- Scanner device supported according to your requirements with maximum productivity
- 1.25 GB/s maximum data transfer rate for dependable access and retrieval of data and information with added usability
- Power Delivery Pass-through feature for maximum usage efficiency and convenience
- Lets you conveniently connect to the gigabit ethernet Ethernet technology to offer maximum productivity
- HDMI effectively and conveniently transmits both audio and video signals with one single cable to ensure hassle-free connectivity
Product Specifications
-
Brand NameAlogic
-
Connectivity TechnologyWired
-
Device SupportedScanner Keyboard Mouse
-
Ethernet TechnologyGigabit Ethernet
-
FeaturesPower Delivery Pass-through
-
HDMIYes
-
HDMI Version2.0
-
Height1.02"
-
Host InterfaceUSB Type C
-
Kensington Security SlotYes
-
Length4.7"
-
Limited Warranty2 Year
-
Manufacturer Part NumberDUCH2
-
Maximum Data Transfer Rate1.25 GB/s
-
Maximum Power Supply Wattage100 W
-
Memory Card ReaderYes
-
Memory Card SupportedSD
-
Network (RJ-45)Yes
-
Number of Displays Supported2
-
Number of HDMI Ports2
-
Number of USB 3.2 Gen 2 Type-A Ports1
-
Number of USB Type-A Ports1
-
Number of USB Type-C Ports1
-
Operating System SupportedmacOS Windows ChromeOS
-
Package ContentsDual 4K Universal Compact Docking Station - CH2 - HDMI Edition USB-C to USB-A Adapter User Manual
-
Product ColorBlack Space Gray
-
Product ModelCH2
-
Product NameDual 4K Universal Compact Docking Station - CH2 - HDMI Edition
-
Product TypeDocking Station
-
Screen Mode Supported4K
-
Supported Resolutions3840 x 2160
-
TAA CompliantYes
-
USB Type-AYes
-
Width4.72"
