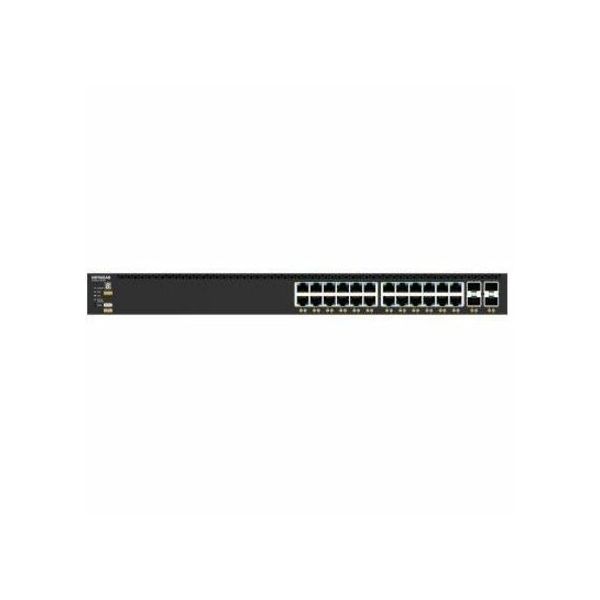

Netgear AV Line M4350-24G4XF Ethernet Switch
Product Number: ETLZ1077702169
$2,409.52
Loading...
Loading...
Product Description
Netgear AV Line M4350-24G4XF Ethernet Switch
24 Ports - Manageable - 10 Gigabit Ethernet, Gigabit Ethernet - 10GBase-X, 10/100/1000Base-T - 3 Layer Supported - Modular - 240 W Power Consumption - 648 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U High - Rack-mountable, Table Top - Lifetime Limited Warranty
Description:
Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage Controller contain pre-configured profiles for all major audio, video, and lighting protocols.
NETGEAR listens to and supports the Pro AV community
IGMP Plus means AV-over-IP multicasting will work out of the box and not flood your network
Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
The Engage Controller manages all M4250, M4300, and M4350 switches for your AV installations
NETGEAR ProAVDesign team tohelp with system design andimplementation toensure theproject will work
AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!
SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI
Enterprise-class hardware
From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth
Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)
Other IT use cases
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack
Industry standard management
Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
SNMP, sFlow and RSPAN - the entire feature set is available without license
Industry leading warranty
NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
NETGEAR listens to and supports the Pro AV community
IGMP Plus means AV-over-IP multicasting will work out of the box and not flood your network
Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
The Engage Controller manages all M4250, M4300, and M4350 switches for your AV installations
NETGEAR ProAVDesign team tohelp with system design andimplementation toensure theproject will work
AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!
SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI
Enterprise-class hardware
From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth
Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)
Other IT use cases
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack
Industry standard management
Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
SNMP, sFlow and RSPAN - the entire feature set is available without license
Industry leading warranty
NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
- 24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks.
- 880W internal power supply providing 648W of PoE budget.
- 1 slot for modular power supply (1+1 redundancy and/or EPS share).
- Any APS350W, APS600Wv2, APS920W, or APS2000W can be used.
- The PoE budget can reach 720W, when the redundant PoE budget remains 648W.
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
- Layer 3 feature set includes static, policy-based, and dynamic routing.
- NETGEAR IGMP Plus, AV User Interface, and Engage Controller speed up AV installations.
- NETGEAR ProSAFE Limited Lifetime Hardware Warranty.
- Lifetime Next Business Day Hardware Replacement.
- Effectively increases available bandwidth on your network
- C14 plug/connector type for convenient usage with added dependability
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available
- Can work as layer 3 routing for scalable network design
- Rack-mountable form factor for added reliability and dependability
- Management capability provides control over setup and configuration of your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Need more information?
Ask a Question
Product Specifications
-
Application/UsageEnterprise Business Network IP Phone VoIP Phone
-
Brand NameNetgear
-
Compatible Rack Unit1U
-
Depth15.7"
-
Energy Efficiency ComplianceEnergy-related Products Directive (ErP) Energy-using Products Directive (EuP)
-
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
Ethernet Technology10 Gigabit Ethernet Gigabit Ethernet
-
Expansion Slot TypeSFP+
-
Form FactorRack-mountable Table Top
-
Frequency50 Hz 60 Hz
-
Height17"
-
Input Voltage120 V AC 230 V AC
-
Layer Supported3
-
Limited WarrantyLifetime
-
ManageableYes
-
Manufacturer Part NumberGSM4328100NES
-
Media Type SupportedOptical Fiber Twisted Pair
-
ModularYes
-
Network (RJ-45)Yes
-
Network Technology10GBase-X 10/100/1000Base-T
-
Number of Power Supplies Installed1
-
Number of Power Supplies Supported2
-
Number of SFP+ Slots4
-
Package ContentsAV Line M4350-24G4XF Ethernet Switch Power Cord(s) USB Type-C To USB-A 2.0 Console Cable Rubber Caps For The SFP+/SFP28/QSP28 Sockets Rubber Footpads For Tabletop Installation Installation Guide Rackmounting Standard Brackets Longer Brackets For Recessed Mounting
-
Plug/Connector TypeC14
-
PoE (RJ-45) PortYes
-
Port/Expansion Slot Details24 x Gigabit Ethernet PoE+ 4 x 10 Gigabit Ethernet Expansion Slots
-
Power Consumption240 W
-
Power SourcePower Supply AC PoE+
-
Product LineAV Line
-
Product ModelM4350-24G4XF
-
Product NameAV Line M4350-24G4XF Ethernet Switch
-
Product SeriesM4350
-
Product TypeEthernet Switch
-
Redundant Power Supply SupportedYes
-
Total Number of Network Ports24
-
Uplink PortYes
-
Width14.4 ft
