Gefen 4K Ultra HD 600 MHz HDBaseT Extender, 18.2 Gbps, 264ft/80m HDMI, RS-232 & Bi-Directional IR, 12-bit Deep Color, HDR, Dolby Atmos, HDCP 2.2 Support
Product #:
ETLZ1044977927
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Gefen 4K Ultra HD 600 MHz HDBaseT Extender, 18.2 Gbps, 264ft/80m HDMI, RS-232 & Bi-Directional IR, 12-bit Deep Color, HDR, Dolby Atmos, HDCP 2.2 Support
1 Input Device - 1 Output Device - 330 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Surface-mountable

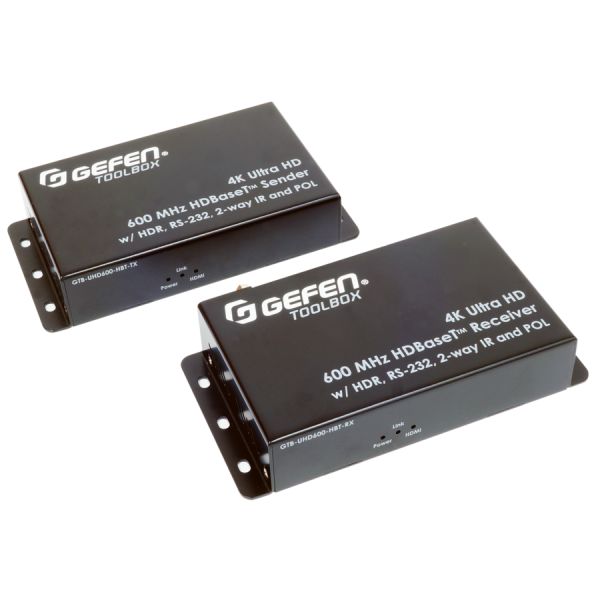

Gefen GTB-UHD600-HBT
Extend Full-Bandwidth HDMI 2.0 w/ HDR up to 80 meters/264 feet, over a single CAT-5
The Gefen GTB-UHD600-HBT is a compact and high-performance solution for extending full-bandwidth HDMI 2.0 audio/video with HDR up to 80 meters (264 feet), over a CAT-5e or better cable. It supports 18.2 Gbps of data throughput and 600 MHz TMDS Clock frequency, the highest specified under the HDMI 2.0 standard. This extender uses HDBaseT technology along with Gefen's visually lossless proprietary compression algorithms with very high PSNR (Peak Signal to Noise Ratio), to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 to 60 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz, 4:4:4) with HDR. High Dynamic Range (HDR) delivers greater contrast between light and dark areas of a video image, resulting in tremendous improvement in picture quality and color depth. HDCP 2.2 and the legacy HDCP 1.4 are both supported. The GTB-UHD600-HBT also supports 1080p Full HD, WUXGA (1920 x 1200), 3DTV, and Deep Color (up to 1080p resolution). Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio are passed through to the HDMI outputs. The GTB-UHD600-HBT provides RS-232 and 2-way IR extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit. Gefen's Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. Small, low profile enclosures can be securely surface-mounted and conveniently hidden away from sight, and accommodate Gefen locking HDMI cables for secure connections.
Extend Full-Bandwidth HDMI 2.0 w/ HDR up to 80 meters/264 feet, over a single CAT-5
The Gefen GTB-UHD600-HBT is a compact and high-performance solution for extending full-bandwidth HDMI 2.0 audio/video with HDR up to 80 meters (264 feet), over a CAT-5e or better cable. It supports 18.2 Gbps of data throughput and 600 MHz TMDS Clock frequency, the highest specified under the HDMI 2.0 standard. This extender uses HDBaseT technology along with Gefen's visually lossless proprietary compression algorithms with very high PSNR (Peak Signal to Noise Ratio), to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 to 60 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz, 4:4:4) with HDR. High Dynamic Range (HDR) delivers greater contrast between light and dark areas of a video image, resulting in tremendous improvement in picture quality and color depth. HDCP 2.2 and the legacy HDCP 1.4 are both supported. The GTB-UHD600-HBT also supports 1080p Full HD, WUXGA (1920 x 1200), 3DTV, and Deep Color (up to 1080p resolution). Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio are passed through to the HDMI outputs. The GTB-UHD600-HBT provides RS-232 and 2-way IR extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit. Gefen's Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. Small, low profile enclosures can be securely surface-mounted and conveniently hidden away from sight, and accommodate Gefen locking HDMI cables for secure connections.
- Supports 18.2 Gbps bandwidth and 600 MHz TMDS clock
- Extends HDMI, RS-232, & Bi-Directional IR over a single CAT-5e/CAT-6A: 4K Ultra HD (3840 x 2160 to 60 Hz, 4:4:4), up to 264 feet/80 meters (8-bit color), 4K Cinema (DCI) (4096 x 2160 to 60 Hz 4:4:4), up to 264 feet/80 meters (8-bit color), 1080p Full HD (60 Hz) and WUXGA (1920 x 1200 to 60 Hz), up to 330 feet/100 meters (up to 12-bit Deep Color)
- Supports the use of DVI sources and DVI displays up to 1080p Full HD and WUXGA (1920x1200), with Gefen CAB-DVI2HDMI-LCK DVI-to-HDMI cables (not included)
- RS-232 2-way link between Sender and Receiver
- IR extension from Sender to Receiver and from Receiver to Sender
- Gefen's Bi-Directional POL provides power to the Sender or the Receiver unit over the link cable - only one side will need external power
- Uses Gefen's implementation of HDBaseT technology with proprietary algorithms and enhanced features
- Advanced EDID Management
- Firmware updatable via RS-232
- Locking power connector
- Video Extender Transmitter/Receiver is a reliable audio/video transmission extending solution
- 4096 x 2160 maximum video resolution for stunning, lively result with optimal viewing usability
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- The GTB-UHD600-HBT video extender transmitter/receiver provides plenty of freedom with wired connectivity
- 1 input devices supported to better accommodate your specific requirements
- 1 output devices supported to better accommodate your specific requirements
- 330 ft maximum operating distance to allow efficient coverage and maximum usability
- 4K graphics mode for an immersive and sharp viewing experience
Product Specifications
-
Brand NameGefen
-
Connectivity TechnologyWired
-
Form FactorSurface-mountable
-
Graphics Modes4K
-
HDMI InYes
-
HDMI OutYes
-
Limited Warranty3 Year
-
Manufacturer Part NumberGTB-UHD600-HBT
-
Maximum Operating Distance330 ft
-
Maximum Video Resolution4096 x 2160
-
Media Type SupportedTwisted Pair
-
Network (RJ-45)Yes
-
Number of HDMI Inputs1
-
Number of HDMI Outputs1
-
Number of Input Devices Supported1
-
Number of Network (RJ-45) Ports2
-
Number of Output Devices Supported1
-
Package Contents1 x Sender Unit (GTB-UHD600-HBT-TX) 1 x Receiver Unit (GTB-UHD600-HBT-RX) 1 x HDMI-To-HDMI Male-To-Male Locking Cable, 6 Feet 1 x IR Emitter (EXT-IREMIT) 1 x IR Extender (EXT-RMT-EXTIRN) 1 x 12V DC Power Supply With US/EU/UK/AU Reginal AC Plugs And 5.5mm/2.1mm DC Plug (EXT-PS121.5AIP-LP-6) 1 x Quick-Start Guide
-
Product ModelGTB-UHD600-HBT
-
Product Name4K Ultra HD 600 MHz HDBaseT Extender w/ HDR, RS-232, 2-way IR, and POL
-
Product TypeVideo Extender Transmitter/Receiver
-
Serial PortYes
-
Transmitter Weight (Approximate)9.60 oz
-
Twisted Pair Cable StandardCategory 6a
