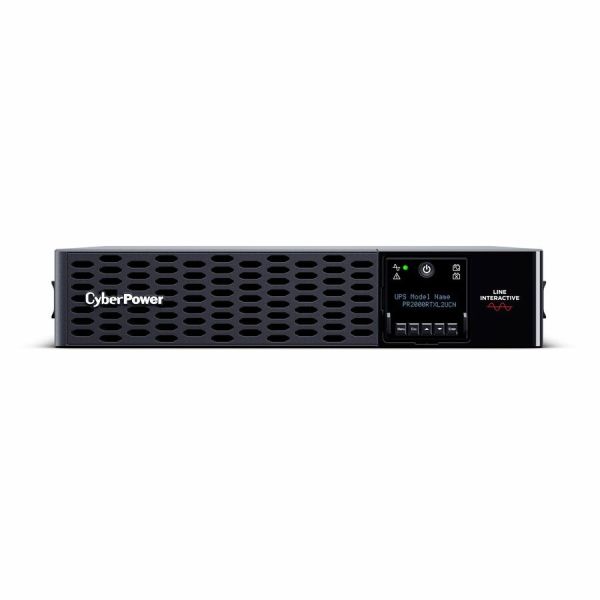

CyberPower PR2000RTXL2UCN Smart App Sinewave UPS Systems

Product #: ETLZ1077862222
$1,894.99
Ships Free - This items ships free with your order
Delivered by Tue 12/23 Tue 12/23 - This is an estimated delivery timeline

Product Description

CyberPower PR2000RTXL2UCN Smart App Sinewave UPS Systems
2000VA/2000W, 120 VAC, NEMA L5-20P (5-20P Adapter), 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel Business, $400000 CEG, 3YR Warranty
The PR2000RTXL2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
The Smart App Sinewave PR2000RTXL2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2000RTXL2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. Built-in Cloud Monitoring.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2000RTXL2UCN.
  • Capacity:
  • 2000 VA / 2000 W
  • Topology:
  • Line Interactive
  • Waveform:
  • Sine Wave
  • Output:
  • 100-125 VAC ± 5%
  • Runtime (half/full):
  • 12.2 minutes / 4.3 minutes
  • Plug type & cord:
  • NEMA L5-20P w/5-20P Adapter, 10 ft. cord
  • Outlets:
  • 8 surge + battery backup
  • Outlet types:
  • 8 × NEMA 5-20R
  • Communication:
  • USB, Serial, SNMP, Relay, EPO
  • Management software:
  • PowerPanel Business Edition
  • Remote management:
  • Yes, pre-installed RMCARD205 and Built-in Cloud Monitoring
  • Warranty:
  • 3 year
  • Connected Equipment Guarantee:
  • $400,000
  • ENERGY STAR certified:
  • Yes
  • Experience higher efficiency with lower energy cost
  • Prevent critical data loss by staying powered during a blackout with up to 2000 W load capacity
  • Up to 4.30 minute runtime on full load to preserve critical data from power shortage interruptions
  • 2000 VA load capacity provides sufficient backup during power failures
  • Overload protection feature usually operates on an inverse time curve where the stable time becomes less as the current increases
  • 4 batteries for maximum feasibility and added productivity
  • 12V battery size for better reliance and dependable usability
  • 9000 mAh battery capacity allows longer, charged usage in a dependable manner with maximum feasibility
  • 3 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
  • Replaceable battery for reliable output for prolonged usage with maximum efficiency
CyberPower logo
Guides & Information
Need more information? Ask a Question

Product Specifications

  • AVR
    Yes
  • Additional Information
    Active PFC Compatible : Yes Energy Saving : GreenPower UPS Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 4 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Extended Battery Module : BP48VP2U02 Hot Swappable : Yes Replacement Battery Cartridge : RB1290X4J Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 4.3 min Runtime at Half Load : 12.2 min Typical Recharge Time : 3 Hours (0% to 90% charged) User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 50.04 (cm) Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 19.7 (in) Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 500 (mm) Weight (kg) : 33.79 Weight (lb) : 74.5 Shipping Dimensions - (WxHxD) (cm) : 55.88 x 26.67 x 60.96 (cm) Shipping - Dimensions (WxHxD, in) : 22 x 10.5 x 24 (in) Shipping - Dimensions (WxHxD, mm) : 558.8 x 266.7 x 609.6 (mm) Shipping - Weight (kg) : 40.23 Shipping - Weight (lb) : 88.7 Adjustable Voltage Range : 70 - 155 VAC Circuit Breaker : 20 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 47 Hz - 63 Hz Input Plug Type : NEMA L5-20P (5-20P Adapter) Input Voltage : 100 - 125 VAC Input Voltage Range : 75 VAC - 149 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 0° Offset Automatic Voltage Regulation : Double Boost On AC WaveForm : Sine Wave On Battery Frequency : 50/60 Hz ± 1% On Battery Voltage : 100/110/120/125 VAC ± 5% On Battery Waveform : Sine Wave Outlets - Battery & Surge Protected : 8 Outlets - Critical Load : 4 Outlets - Total : 8 Outlet Type COMPUTED : 8 - NEMA 5-20R Output Power Factor : 1 Overload Protection : On Battery: Internal Circuitry Limiting Typical Transfer Time : 6ms; Max 11ms at normal sensitivity USB Charge Port : No VA : 2000 VA Watts : 2000 W EMI/RFI Filtration COMPUTED : Yes Surge Suppression (Joules) : 2430 J Audible Alarms : Battery Mode Emergency Power Off (EPO) Port : Yes HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Serial SNMP / HTTP Remote Monitoring : Yes - RMCARD205 pre-installed Software (Free Download) : PowerPanel Business Color : Black Form Factor : Rack / Tower Material of Construction : Metal Rack Height : 2U Audible noise at 1m from surface of unit : 57.5 dBA Online Thermal Dissipation : 130 BTU/hr Operating Elevation : 0 - 9843 ft (0 - 3000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : $400000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U4B Product Warranty : 3 Year Limited Warranty
  • Additional Warranty Information
    Connected Equipment Guarantee: Lifetime
  • Alarm
    Battery Mode Low Battery Overload Over-charge Fault
  • Application/Usage
    Server Storage Device VoIP Network Device Telecommunication Equipment
  • Battery Capacity
    9000 mAh
  • Battery Chemistry
    Lead Acid
  • Battery Size
    12V
  • Brand Name
    CyberPower
  • Certifications & Standards
    UL1778
  • Circuit Breaker
    Yes
  • Cord Length
    10 ft
  • Depth
    19.7"
  • Directly Connected Equipment Guarantee
    $400000 Lifetime
  • Display
    LCD
  • EMI/RFI Noise Filter
    Yes
  • EPO Port
    Yes
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack/Tower
  • Height
    3.4"
  • Hot Swappable
    Yes
  • Input Frequency
    63 Hz 47 Hz
  • Input Voltage
    120 V AC
  • Input Voltage Range
    75 V AC - 149 V AC 100 V AC - 125 V AC
  • Limited Warranty
    3 Year
  • Load Capacity (VA)
    2000 VA
  • Load Capacity (Watt)
    2000 W
  • Manufacturer Part Number
    PR2000RTXL2UCN
  • Maximum Operating Elevation
    9842.52 ft
  • Maximum Operating Temperature
    104°F (40°C)
  • Maximum Storage Elevation
    49209.32 ft
  • Minimum Operating Temperature
    32°F (0°C)
  • Network Management
    SNMP/HTTP Remote Monitoring Relay-MS Card Dry Contact
  • Number of Batteries
    4
  • Number of Battery & Surge Outlets
    8
  • Number of Critical Load Outlets
    4
  • Output Frequency
    60 Hz 50 Hz
  • Output Power Factor
    1
  • Output Voltage
    100 V AC 110 V AC 120 V AC 125 V AC
  • Overload Protection
    Yes
  • Plug/Connector Type
    NEMA 5-20P
  • Product Color
    Black
  • Product Model
    PR2000RTXL2UCN
  • Product Name
    PR2000RTXL2UCN Smart App Sinewave UPS Systems
  • Product Series
    Smart App Sinewave
  • Product Type
    Line-interactive UPS
  • Rack Height
    2U
  • Receptacle Type
    NEMA 5-20R
  • Replaceable Battery
    Yes
  • Serial Port
    Yes
  • Sound Emission (A-Weighted)
    57.5 dB(A)
  • Status Indicators
    LED Indicators: Power On Line Mode Battery Mode Fault
  • Storage Relative Humidity
    95%
  • Storage Temperature
    5°F (-15°C) - 113°F (45°C)
  • Surge Energy Rating
    2430 J
  • Surge Suppression
    Yes
  • Thermal Dissipation
    38.10 W
  • Transfer Time
    4 ms
  • Typical Battery Recharge Time
    3 Hour
  • USB
    Yes
  • USB (HID Compliant) Port
    Yes
  • Waveform Type
    Sine Wave
  • Width
    17.1"
