CyberPower PR1000RTXL2UC Smart App Sinewave UPS Systems

Product #: ETLZ1077862221
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

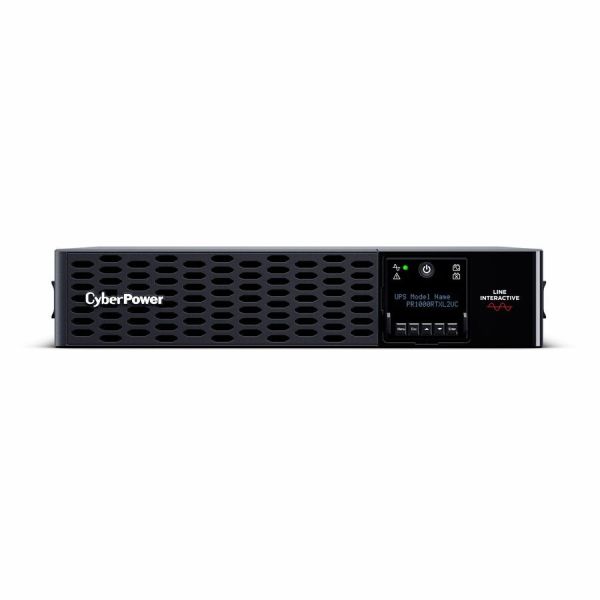

CyberPower PR1000RTXL2UC Smart App Sinewave UPS Systems
1000VA/1000W, 120 VAC, NEMA 5-15P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel Business, $400000 CEG, 3YR Warranty
The PR1000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
The Smart App Sinewave PR1000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U01 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built in cloud monitoring.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR100RTXL2UC.
  • Capacity:
  • 1000 VA / 1000 W
  • Topology:
  • Line Interactive
  • Waveform:
  • Sine Wave
  • Output:
  • 100-125 VAC ± 5%
  • Runtime (half/full):
  • 20 minutes / 8 minutes
  • Plug type & cord:
  • NEMA 5-15P, 10 ft. cord
  • Outlets:
  • 8 surge + battery backup
  • Outlet types:
  • 8 × NEMA 5-15R
  • Communication:
  • USB, Serial, SNMP, Relay, Built in Cloud, EPO
  • Management software:
  • PowerPanel Business Edition
  • Remote management:
  • Yes, with optional RMCARD205
  • Warranty:
  • 3 year
  • Connected Equipment Guarantee:
  • $400,000
  • ENERGY STAR qualified:
  • Yes
  • Works adequately in situations where the supply is prone to sags and surges
  • Prevent critical data loss by staying powered during a blackout with up to 1000 W load capacity
  • Up to 8 minute runtime on full load to preserve critical data from power shortage interruptions
  • 1000 VA load capacity provides sufficient backup during power failures
  • Overload protection feature effectively prevents motor damage by monitoring the current in the motor circuit and breaking the circuit when an electrical overload is detected
  • 4 batteries for maximum feasibility and added productivity
  • 12V battery size for maximum productivity with added dependability
  • 7000 mAh battery capacity allows longer, charged usage in a dependable manner with maximum feasibility
  • 3 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
  • Replaceable battery for optimal performance with maximum charged dependability
CyberPower logo
Guides & Information
Need more information? Ask a Question

Product Specifications

  • AVR
    Yes
  • Additional Information
    Active PFC Compatible : Yes Energy Saving : GreenPower UPS Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 4 Battery Size : 12 V / 7 Ah Battery Type : Sealed Lead-Acid Battery Extended Battery Module : BP48VP2U01 Hot Swappable : Yes Replacement Battery Cartridge : RB1270X4H Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 8 min Runtime at Half Load : 20 min Typical Recharge Time : 3 Hours (0% to 90% charged) User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 41.15 (cm) Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 16.2 (in) Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 411 (mm) Weight (kg) : 25.08 Weight (lb) : 55.3 Shipping Dimensions - (WxHxD) (cm) : 52.71 x 27.31 x 55.88 (cm) Shipping - Dimensions (WxHxD, in) : 20.75 x 10.75 x 22 (in) Shipping - Dimensions (WxHxD, mm) : 527.05 x 273.05 x 558.8 (mm) Shipping - Weight (kg) : 27.76 Shipping - Weight (lb) : 61.2 Adjustable Voltage Range : 70 - 155 VAC Circuit Breaker : 15 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 47 Hz - 63 Hz Input Plug Type : NEMA 5-15P Input Voltage : 100 - 125 VAC Input Voltage Range : 75 VAC - 149 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Double Boost On AC WaveForm : Sine Wave On Battery Frequency : 50/60 Hz ± 1% On Battery Voltage : 100/110/120/125 VAC ± 5% On Battery Waveform : Sine Wave Outlets - Battery & Surge Protected : 8 Outlets - Critical Load : 4 Outlets - Total : 8 Outlet Type COMPUTED : 8 - NEMA 5-15R Output Power Factor : 1 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 6ms; Max 11ms at normal sensitivity USB Charge Port : No VA : 1000 VA Watts : 1000 W EMI/RFI Filtration COMPUTED : Yes Surge Suppression (Joules) : 2430 J Audible Alarms : Battery Mode Emergency Power Off (EPO) Port : Yes HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Serial SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205 Software (Free Download) : PowerPanel Business Color : Black Form Factor : Rack / Tower Material of Construction : Metal Rack Height : 2U Online Thermal Dissipation : 48.6 BTU/hr Operating Elevation : 0 - 9843 ft (0 - 3000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : $400000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U4A Product Warranty : 3 Year Limited Warranty
  • Additional Warranty Information
    Connected Equipment Guarantee: Lifetime
  • Alarm
    Battery Mode Low Battery Overload Over-charge Overheat
  • Application/Usage
    Server Storage Device VoIP Network Device Telecommunication Equipment
  • Battery Capacity
    7000 mAh
  • Battery Chemistry
    Lead Acid
  • Battery Size
    12V
  • Brand Name
    CyberPower
  • Certifications & Standards
    UL1778
  • Circuit Breaker
    Yes
  • Cord Length
    10 ft
  • Depth
    19.7"
  • Directly Connected Equipment Guarantee
    $400000 Lifetime
  • Display
    LCD
  • EMI/RFI Noise Filter
    Yes
  • EPO Port
    Yes
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack/Tower
  • Height
    3.4"
  • Hot Swappable
    Yes
  • Input Frequency
    63 Hz 47 Hz
  • Input Voltage
    120 V AC
  • Input Voltage Range
    75 V AC - 149 V AC 100 V AC - 125 V AC
  • Limited Warranty
    3 Year
  • Load Capacity (VA)
    1000 VA
  • Load Capacity (Watt)
    1000 W
  • Manufacturer Part Number
    PR1000RTXL2UC
  • Maximum Operating Elevation
    9842.52 ft
  • Maximum Operating Temperature
    104°F (40°C)
  • Maximum Storage Elevation
    49209.32 ft
  • Minimum Operating Temperature
    32°F (0°C)
  • Network Management
    SNMP/HTTP Remote Monitoring Relay-MS Card Dry Contact
  • Number of Batteries
    4
  • Number of Battery & Surge Outlets
    8
  • Number of Critical Load Outlets
    4
  • Output Frequency
    60 Hz 50 Hz
  • Output Power Factor
    1
  • Output Voltage
    100 V AC 110 V AC 120 V AC 125 V AC
  • Overload Protection
    Yes
  • Plug/Connector Type
    NEMA 5-15P
  • Product Color
    Black
  • Product Model
    PR1000RTXL2UC
  • Product Name
    PR1000RTXL2UC Smart App Sinewave UPS Systems
  • Product Series
    Smart App Sinewave
  • Product Type
    Line-interactive UPS
  • Rack Height
    2U
  • Receptacle Detail
    8 x NEMA 5-15R
  • Receptacle Type
    NEMA 5-15R
  • Replaceable Battery
    Yes
  • Serial Port
    Yes
  • Status Indicators
    LED Indicators: ? Power On Line Mode Battery Mode Fault Night Mode Wiring Fault
  • Storage Temperature
    5°F (-15°C) - 113°F (45°C)
  • Surge Energy Rating
    2430 J
  • Surge Suppression
    Yes
  • Thermal Dissipation
    14.24 W
  • Typical Battery Recharge Time
    3 Hour
  • USB
    Yes
  • USB (HID Compliant) Port
    Yes
  • Waveform Type
    Sine Wave
  • Width
    17.1"
